Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
PVS-R-400

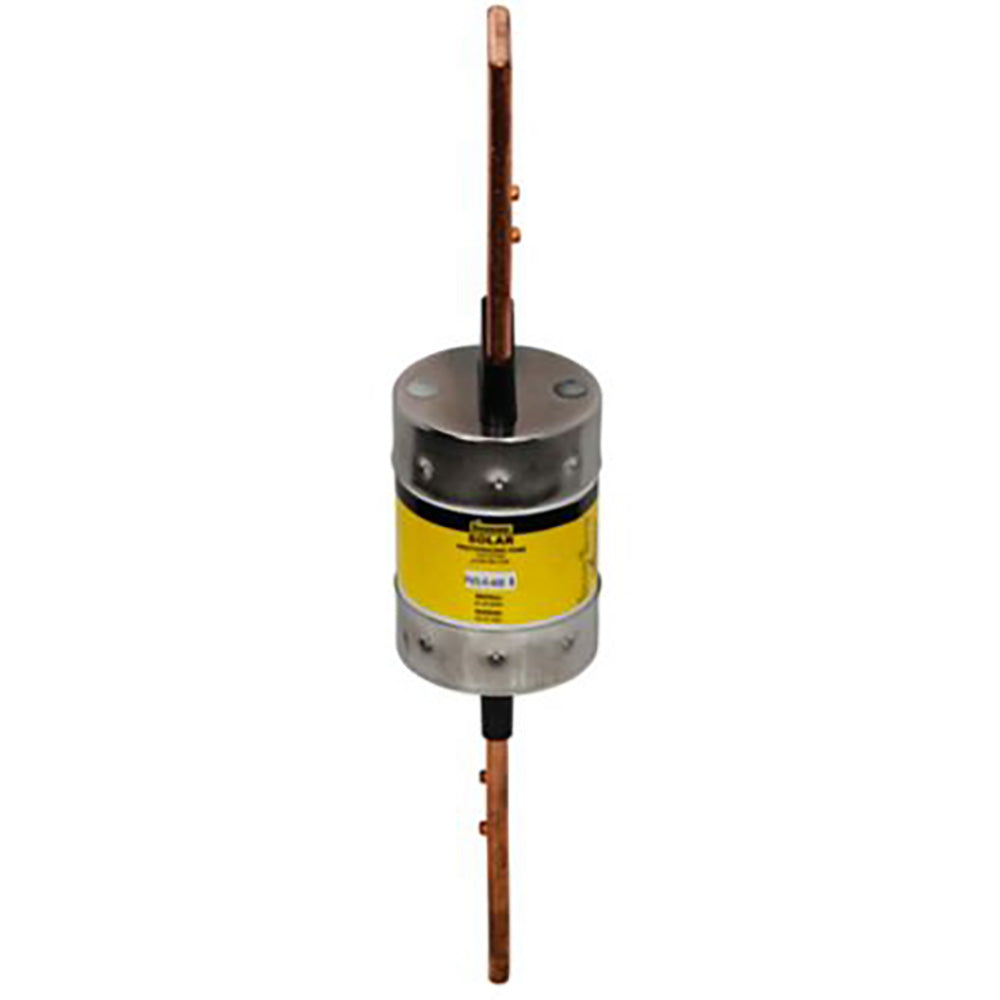

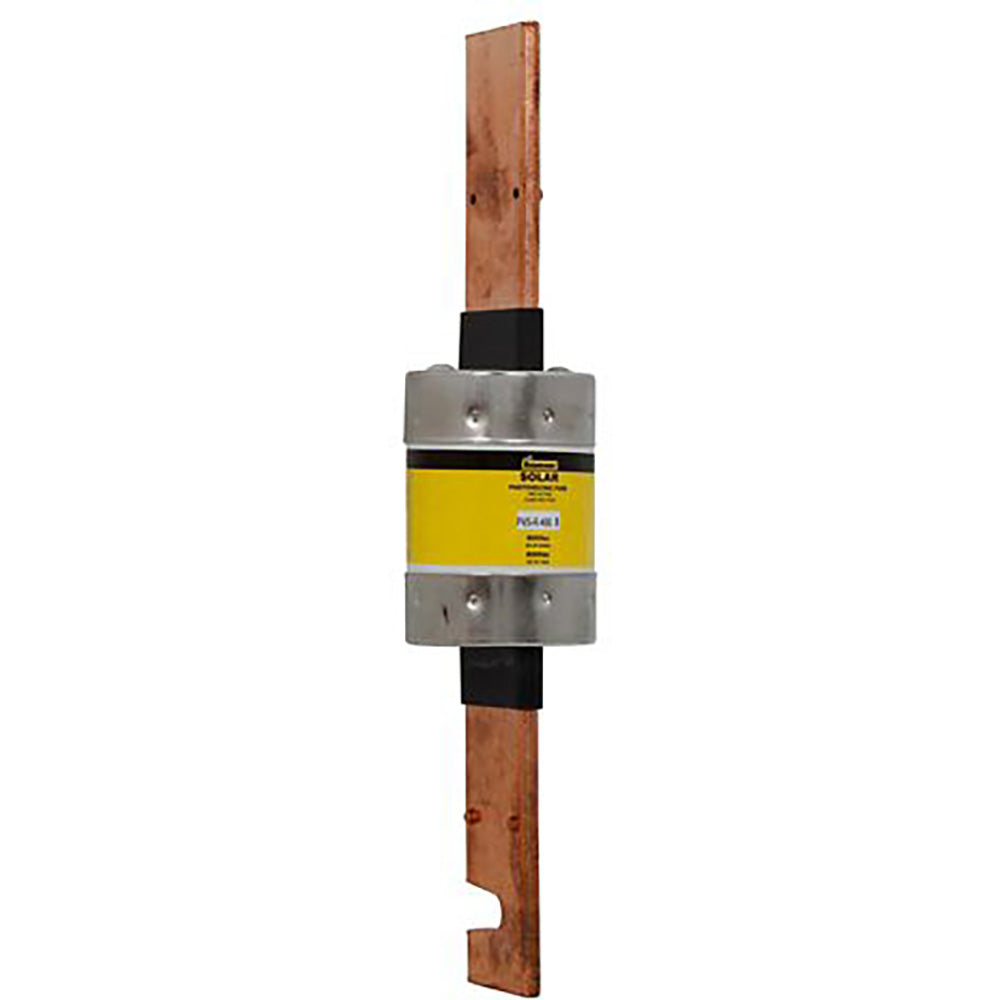

PVS-R-400 is a fast-acting photovoltaic fuse from Bussmann Eaton designed for solar power system protection.This 400 amp, 600 Vdc Class RK5 fuse provides reliable current limiting and high interrupt rating for photovoltaic applications.
- Key Specifications
- Amperage: 400 Amps
- Voltage Rating: 600 Vdc / 600 Vac
- Fuse Type: Fast-Acting, Current Limiting
- Class: RK5
- Interrupt Rating: 200 kA RMS Symmetrical at 600 Vac, 10 kA at 600 Vdc
- Poles: 1 (single pole cartridge)
- Body Style: Cartridge Blade Fuse
- Mounting Type: Inline fuse holder or block compatible
- Certifications: UL 2579 Listed for photovoltaic use
- Series: PVS-R
Specifications
- Part Number: PVS-R-400
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : PVS-R
- Voltage : 600
- Amperage : 350
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 05171226831
- GTIN : 00051712268318
- Weight : 2
