Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
PVS-R-300

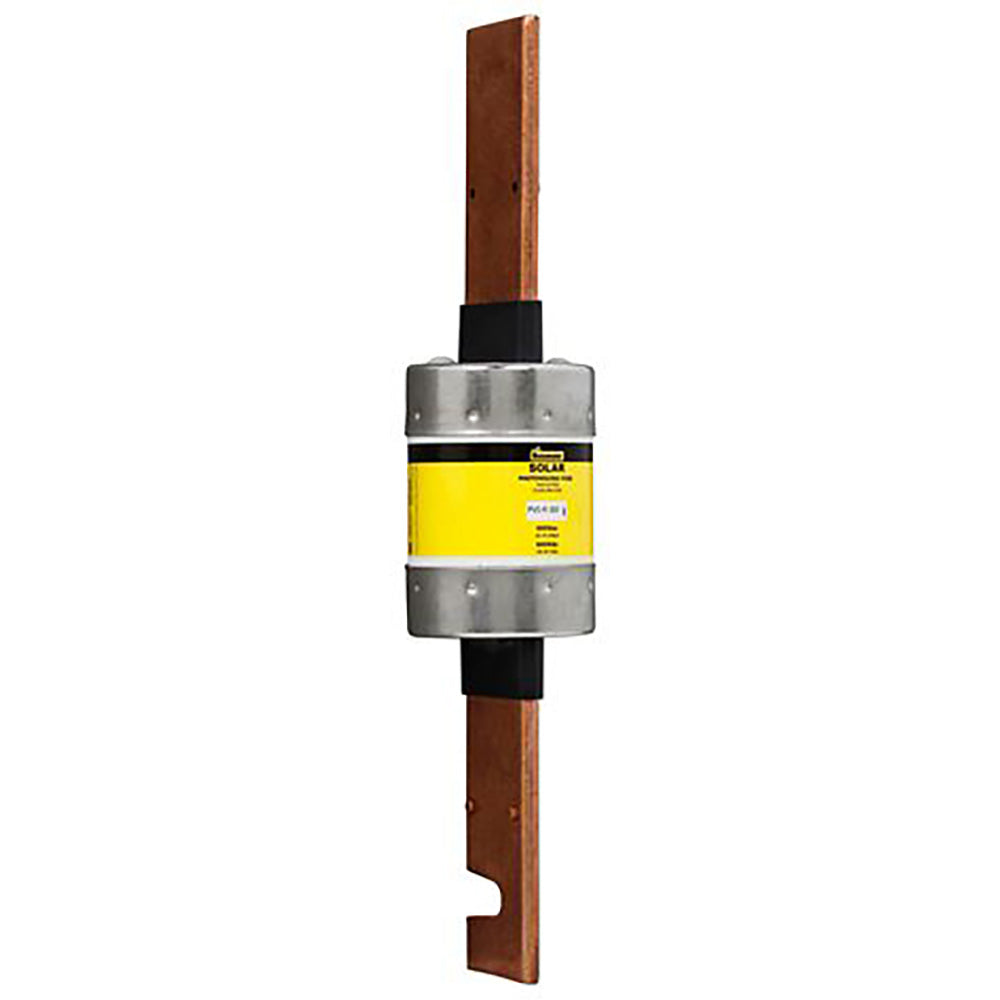

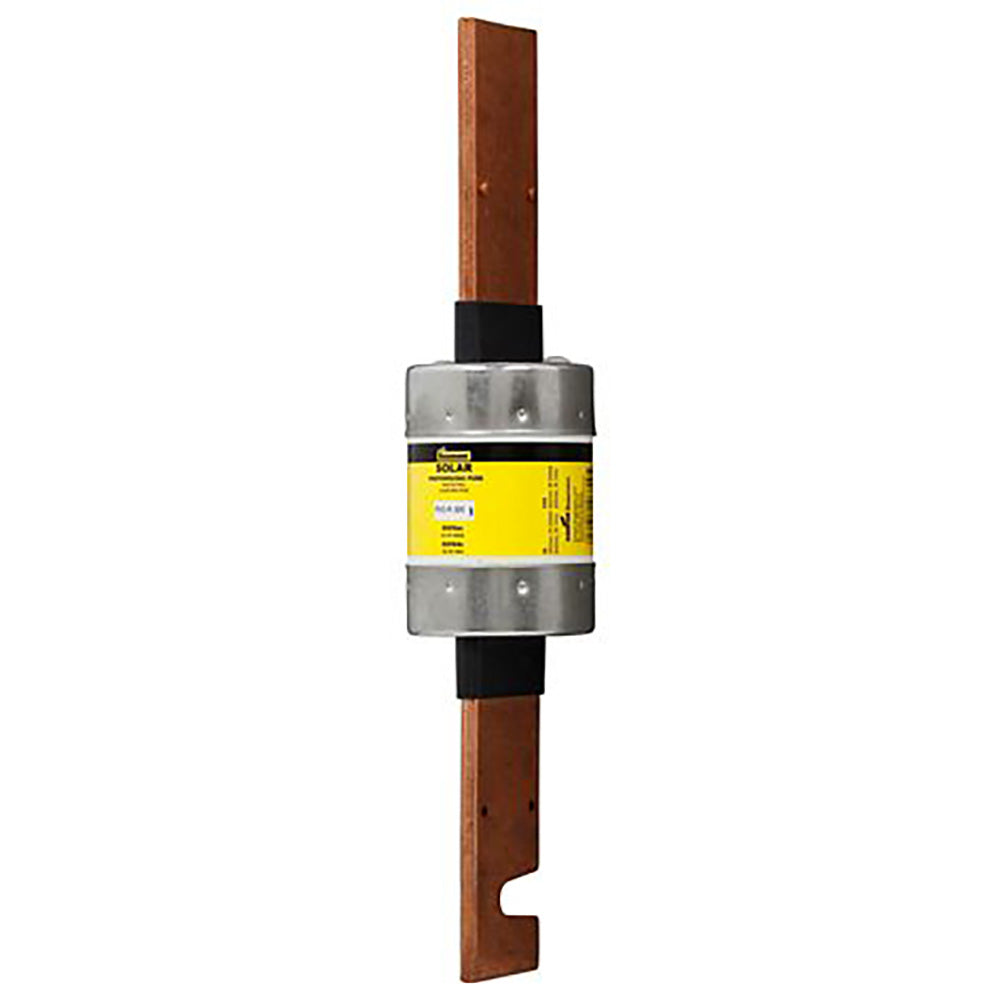

PVS-R-300 is a 300 Amp, 600 Volt AC/DC Class RK5 photovoltaic fuse from Bussmann designed for solar power system protection.This fast-acting fuse is UL 2579 listed and UL Class RK5 rated, specifically engineered to protect photovoltaic systems under extreme ambient temperatures, high cycling, and low-level fault current conditions. It features a current-limiting design with an interrupting rating of 200,000 AIC RMS at 600V AC and 20 kAIC at 300 Vdc. The fuse measures approximately 2.34" x 11.63" and is compatible with standard Class R fuse blocks and disconnects.
- Key Specifications
- Amperage: 300 Amps
- Voltage Rating: 600 Volts AC/DC
- Fuse Type: Class RK5 Photovoltaic Fuse
- Interrupting Rating: 200,000 AIC RMS @ 600V AC
- Interrupting Rating: 20 kAIC @ 300 Vdc
- Fast Acting
- Current Limiting
- Dimensions: 2.34" x 11.63"
- UL Listed 248-19 and UL 2579 Certified
- Designed for extreme temperature and high cycling PV applications
Specifications
- Part Number: PVS-R-300
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 300
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : H
- Barrels : 1
Product Data
- UPC : 051712268295
- GTIN : 00051712268295
- Country of Origin : Mexico
- Weight : 2
