Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
PVS-R-225

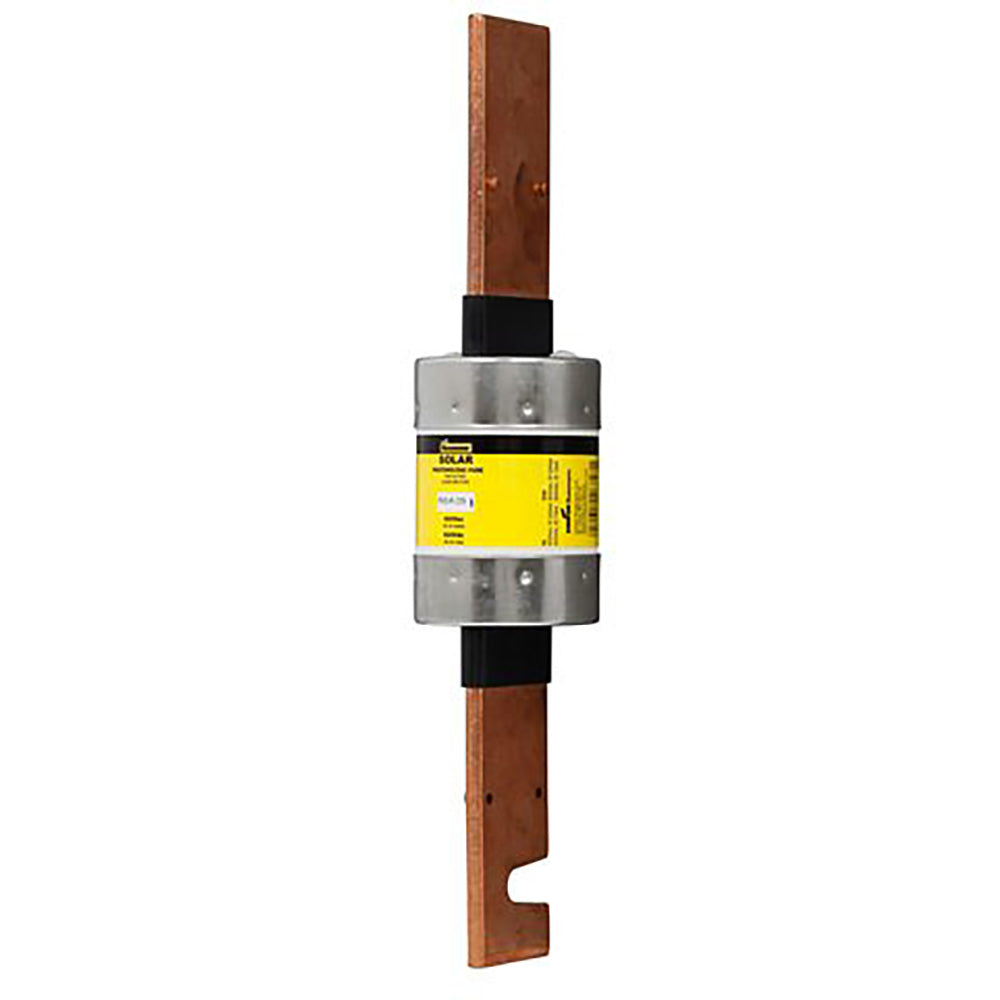

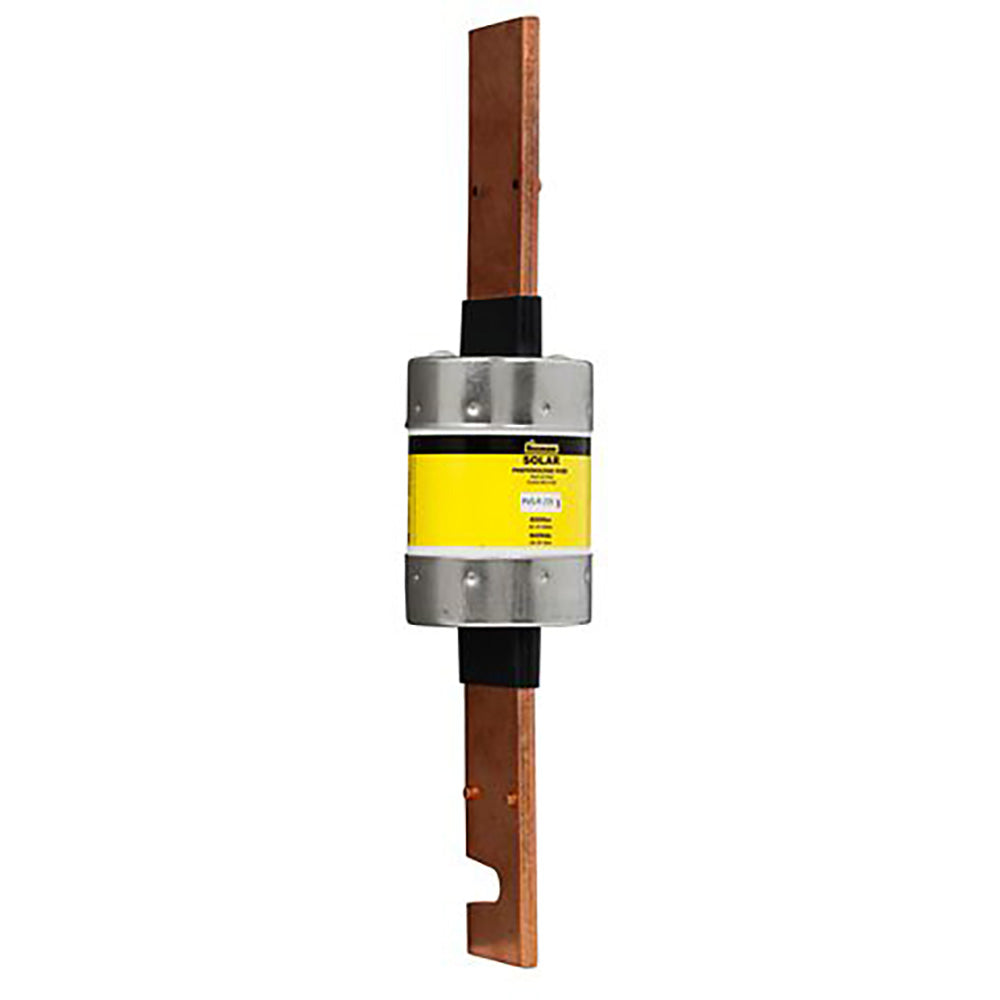

PVS-R-225 is a fast-acting photovoltaic fuse designed by Eaton for protecting solar power systems with a 225 amp rating and 600Vdc voltage capacity.
This Class RK5 fuse is UL 2579 listed and specifically engineered to safeguard photovoltaic systems under extreme ambient temperatures, high cycling, and low-level fault current conditions. It features a high interrupting rating suitable for both AC and DC applications, making it ideal for recombiner boxes, solar DC safety switches, and other PV system components. The fuse fits standard Class RK5 holders, blocks, and disconnects for easy installation.
- Key Specifications
- Amperage: 225A
- Voltage Rating: 600Vac/dc
- Fuse Class: RK5
- Interrupting Rating: 200kA RMS Symmetrical AC
- Interrupting Rating DC: 10kA (for 70-350A range)
- Fuse Type: Fast-Acting
- UL Listed to UL 2579 and UL 248-12
- Agency Certifications: UL Listed, CSA Component Certified
- Mounting: Fits standard Class RK5 fuse holders and blocks
- Application: Photovoltaic systems, recombiner boxes, DC safety switches
- Part Number: PVS-R-225
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Voltage : 600
- Amperage : 225
- AIC rating : 200kA@600V
- Diameter : 2.59
- Class Rating : H
- Barrels : 1
- UPC : 05171226827
- GTIN : 00051712268271
- Country of Origin : Mexico
- Weight : 2
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
Product Data
