Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description
PVS-R-200

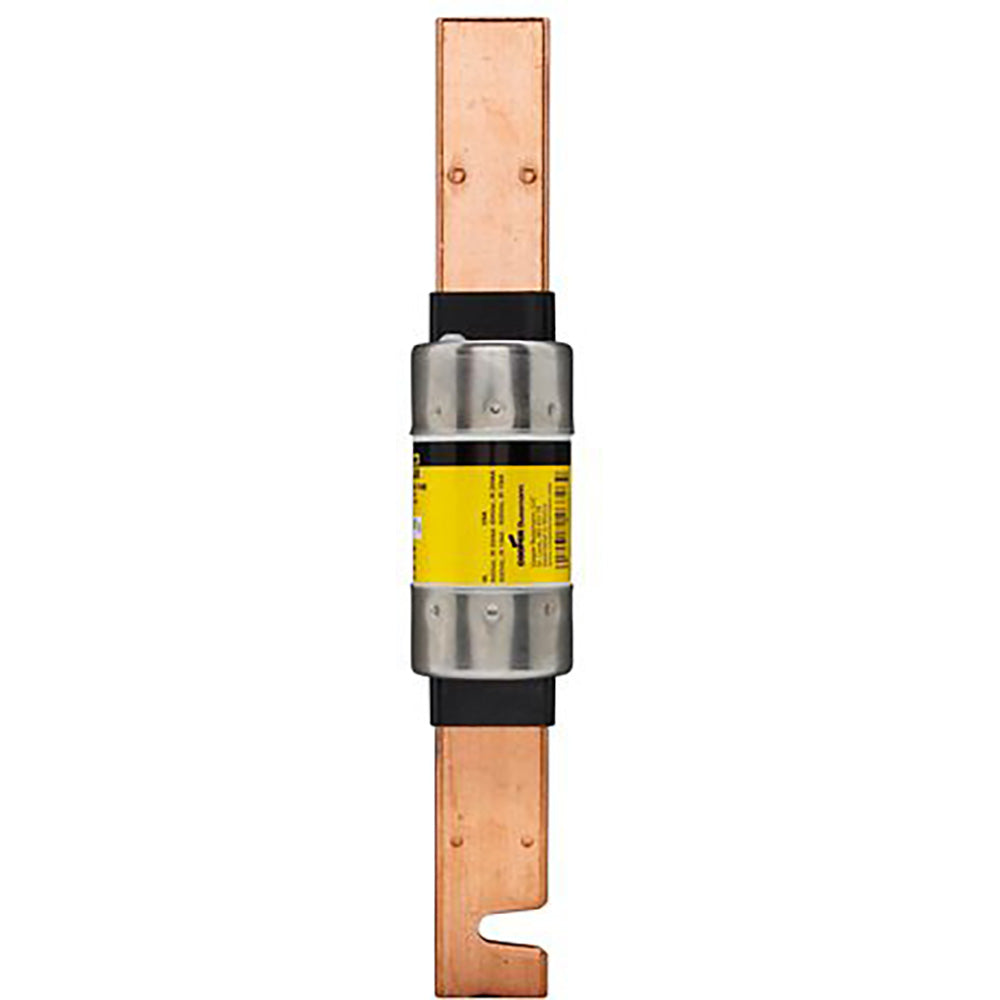

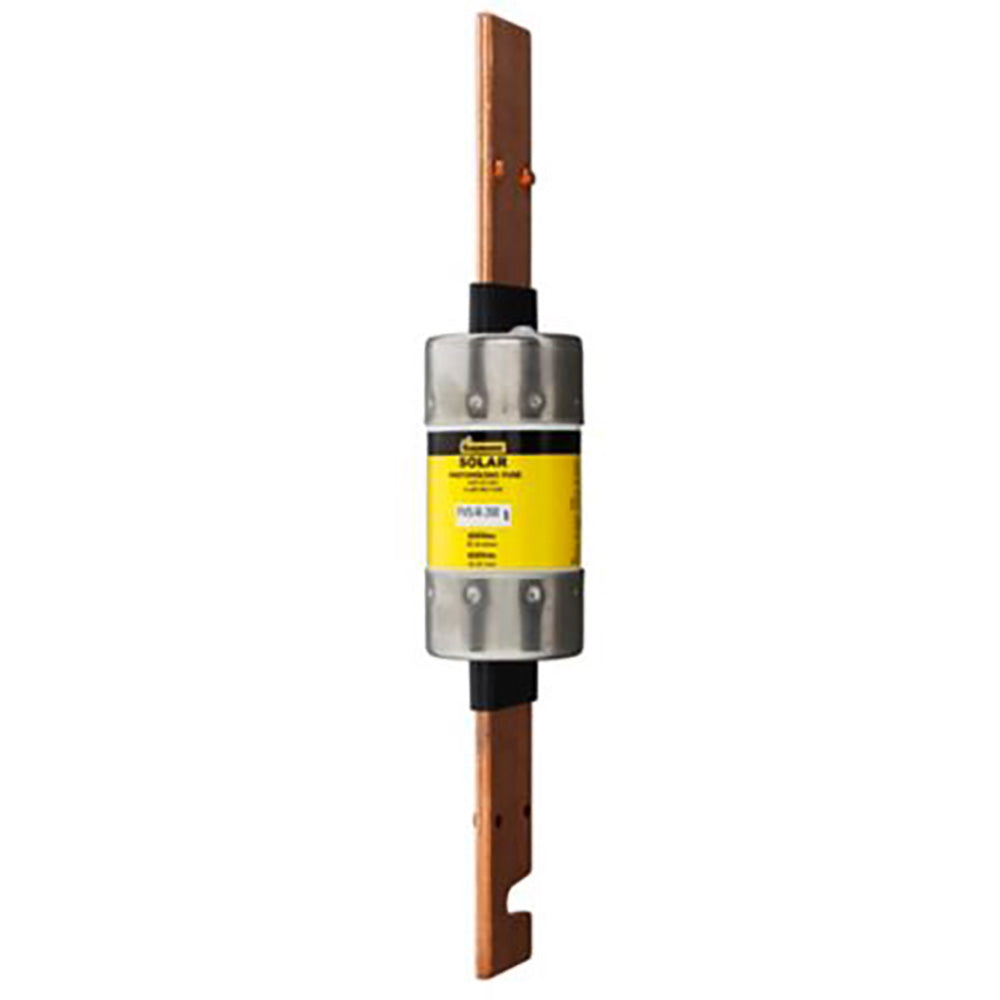

PVS-R-200 is a fast-acting, current-limiting Class RK5 fuse rated 200 amps at 600Vac/dc, specifically designed for photovoltaic system protection. This cartridge blade fuse is UL 2579 listed and engineered to protect solar power systems in extreme ambient temperatures, high cycling conditions, and low-level fault current scenarios including reverse current and multi-array faults. The PVS-R fuse clears faults 4 times faster than standard Class R fuses and fits into standard Class RK5 fuse blocks, disconnects, and combiner boxes used in solar DC safety switches and recombiner boxes.
- Amperage Rating: 200A
- Voltage Rating: 600Vac and 600Vdc
- Fuse Type: Fast-Acting, Current-Limiting
- Class: RK5
- Body Style: Cartridge Blade
- Interrupting Rating: 10kA DC at 600VDC, 200kA RMS Sym. AC
- Mounting Style: Bolt Mount
- UL Standard: UL 248-12, UL 2579 Listed
- CSA Certified: C22.2 No. 248.12
- Power Loss at Rated Current: 28.5 watts
- Typical Applications: Photovoltaic systems, solar DC safety switches, recombiner boxes
- Temperature Derating: Designed to maximize rated capacity in elevated ambient temperatures
Specifications
- Part Number: PVS-R-200
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : LIMITRON
- Type : PVS-R
- Voltage : 600
- Amperage : 200
- AIC rating : 200kA@600V
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
Product Data
- UPC : 051712268264
- GTIN : 00051712268264
- Country of Origin : Mexico
- Weight : 1
- Certification : UL, CSA
