Description

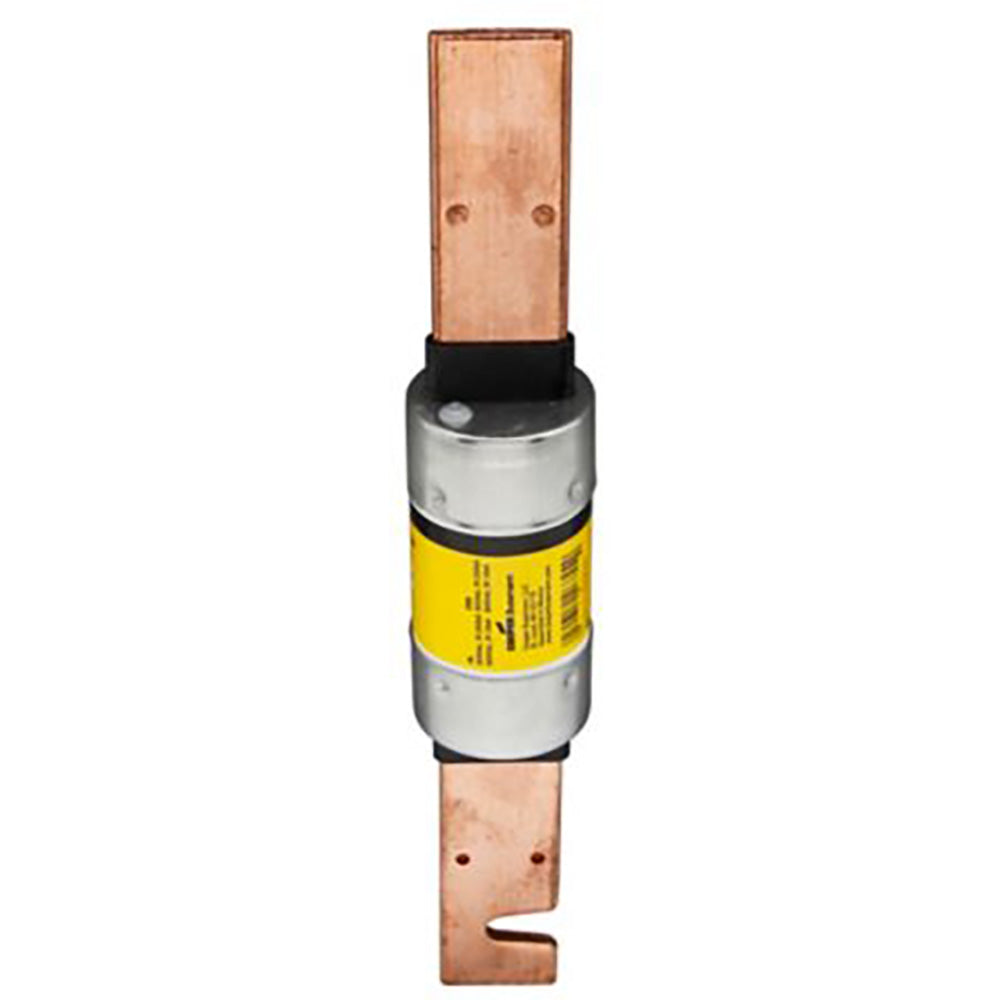

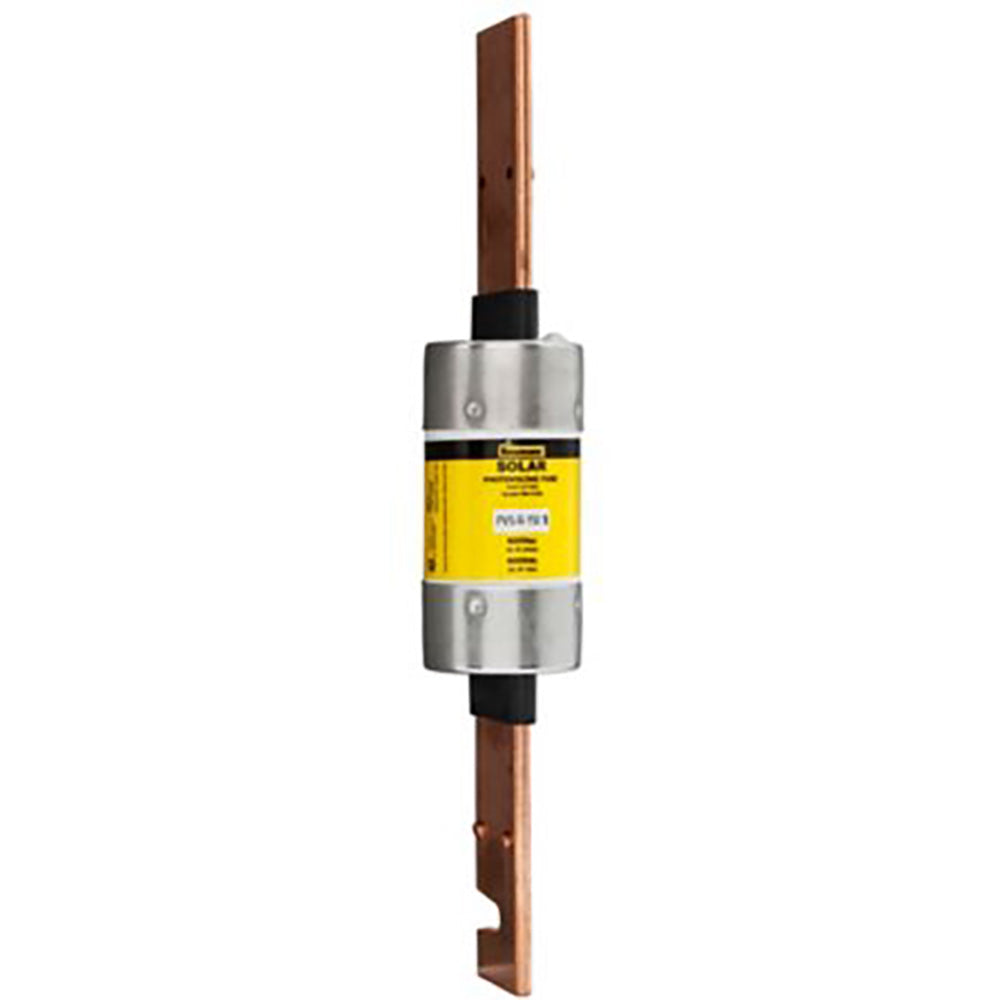

PVS-R-150
PVS-R-150 is a fast-acting photovoltaic fuse from Eaton designed for solar power system protection.PVS-R-150 is a Class RK5 cartridge fuse rated for 150 amps with a voltage rating of 600VAC and 600VDC. It features a current-limiting design with an interrupting rating of 200kA RMS symmetrical AC and 10kA DC, making it suitable for high fault current conditions in photovoltaic applications. This fuse fits standard Class R fuse holders and disconnects used in solar DC safety switches and recombiner boxes.
- Key Specifications
- Amperage: 150A
- Voltage Rating: 600VAC / 600VDC
- Fuse Type: Fast-Acting Cartridge
- Class: RK5
- Interrupting Rating: 200kA RMS Symmetrical AC, 10kA DC
- Mounting Style: Fits standard Class R fuse holders and disconnects
- Application: Photovoltaic (solar) system protection
- UL Listed to UL 248-12 and UL 2579 standards
- Part Number: PVS-R-150
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : Limitron
- Type : PVS-R
- Voltage : 600
- Amperage : 150
- AIC rating : 200kA@600V
- Diameter : 1.84
- Class Rating : RK5
- Barrels : 1
- UPC : 051712268240
- GTIN : 00051712268240
- Country of Origin : Mexico
- Weight : 1
