Product Info
- Manufacturer:Eaton
- Sub-Category:Highbay, lowbay and industrials
Description
PVML-7-P-UNV34

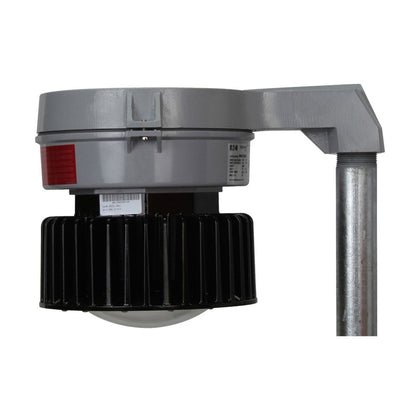

PVML-7-P-UNV34 is an Eaton Crouse-Hinds series Champ Pro PVML LED light fixture designed for ordinary/non-hazardous locations with 7000 lumens output.This die cast aluminum fixture features a glass lens, Type V optical distribution, stanchion straight mounting, and operates at 347-480 Vac with 57W wattage, providing energy-efficient lighting equivalent to 175W HID.Key Specifications
- Part Number: PVML-7-P-UNV34
- Manufacturer: Eaton
- Lumens: 7000
- Voltage rating: 347-480 Vac
- Wattage: 57W
- Frequency rating: 50/60 Hz
- Lumens per watt: 130
- Color temperature: Cool white
- Equivalent luminaire: 175W HID
- NEMA Rating: 4X
- Ingress protection (IP) ratings: IP66
- Material: Die cast aluminum
- Lens material: Heat and impact resistant glass
- Mounting Method: Stanchion straight
- Dimming: Dimmable driver
- Power factor: > 0.90
Specifications
- Part Number: PVML-7-P-UNV34
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Highbay, lowbay and industrials
- Voltage : 347-480 Vac
- Nema Rating : 4X
- Watts : 57W
- Enclosure : IP66
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 7000
- Lumens per watt : 130
- Color temperature : Cool white
- Mounting Method : Stanchion straight
- Equivalent luminaire : 175W HID
- Guard type : No guard
- Dimming : Dimmable driver
- Power factor : > 0.90
- Trade size : 1-1/2"
Product Data
- UPC : 662276914384
- Dimensions : 16.03 in x 11.1 in x 11.62 in (Length/Depth x Height x Width)
- Weight : 23.5 lb
