PVML-7-A2-UNV1-M2 - Eaton Lighting and controls LED 7000 lumens

PVML-7-A2-UNV1-M2

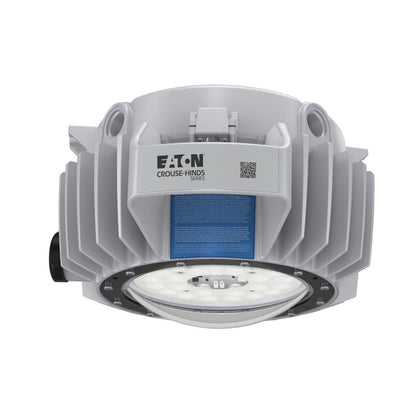

PVML-7-A2-UNV1-M2 is an Eaton Crouse-Hinds series Champ Pro PVML LED light fixture designed for high-efficiency industrial and commercial lighting applications. This pendant-mounted fixture delivers 7000 lumens of cool white light with exceptional energy efficiency, making it an ideal replacement for traditional HID luminaires. The fixture features a durable die cast aluminum housing with heat and impact resistant glass lens, rated NEMA 4X and IP66 for outdoor and wet location use. Operating across 100-277 Vac and 127-250 Vdc at 50/60 Hz, the PVML-7-A2-UNV1-M2 provides Type V optical distribution with a dimmable driver and power factor greater than 0.90. Key Specifications

• Part Number: PVML-7-A2-UNV1-M2
• Manufacturer: Eaton
• Lumens: 7000
• Lumens per Watt: 153
• Wattage: 50 W
• Voltage: 100-277 Vac, 127-250 Vdc
• Frequency: 50/60 Hz
• Color Temperature: Cool white
• Mounting Method: Pendant
• Optical Distribution: Type V
• NEMA Rating: 4X
• IP Rating: IP66
• Material: Die cast aluminum
• Lens Material: Heat and impact resistant glass
• Dimming: Dimmable driver
• Power Factor: > 0.90

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PVML-7-A2-UNV1-M2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 100-277 V
• Nema Rating : 4X
• Watts : 50
• Hz : 50/60
• Protection : IP66
• Material : Die cast aluminum
• Lumens : 7000
• Lumens per watt : 153
• Color temperature : Cool white
• Mounting Method : Pendant
• Guard type : No guard
• Dimming : Dimmable driver
• Power factor : > 0.90

Product Data

• UPC : 662277188005
• Dimensions : 13 in x 8 in x 16 in (Length/Depth x Height x Width)
• Weight : 12 lb
