Product Info
- Manufacturer:Eaton
- Sub-Category:Highbay, lowbay and industrials
Description
PVML-7-2A-UNV1-S903

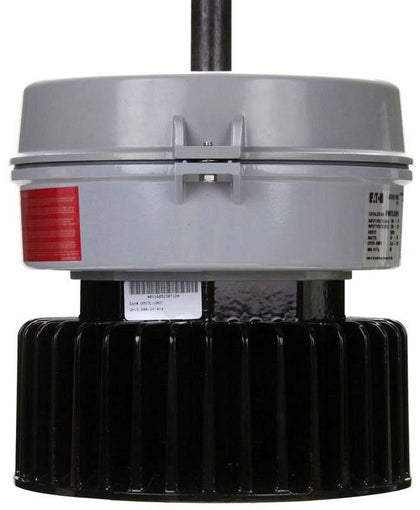

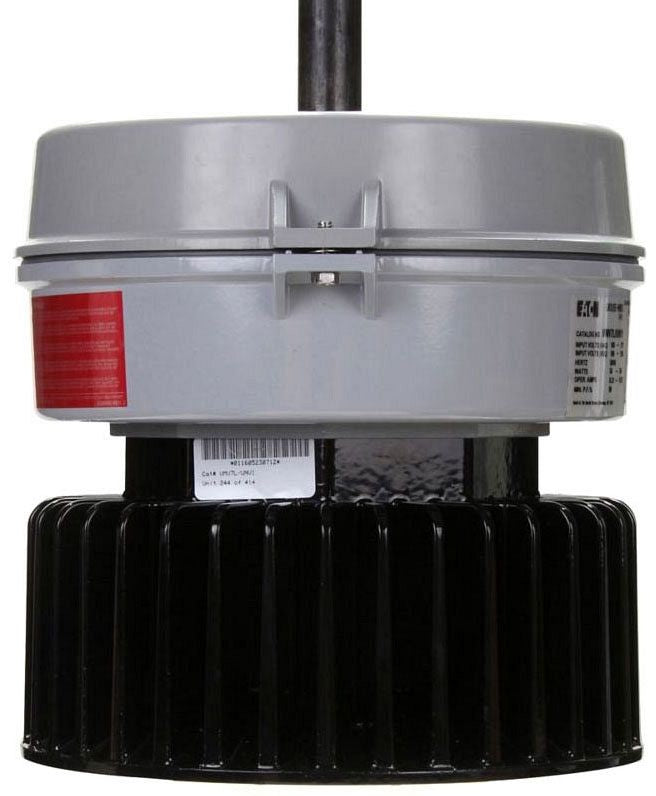

PVML-7-2A-UNV1-S903 is an Eaton Crouse-Hinds series Champ Pro PVML LED light fixture. This fixture is listed with a 175W HID equivalent, cool white output, pendant mounting, a Type V optical distribution, and a dimmable driver for ordinary/non-hazardous locations. Key Specifications
- Part Number: PVML-7-2A-UNV1-S903
- Manufacturer: Eaton
- Product Type: Light fixture
- Lumens: 7000
- Lumens per watt: 129
- Color temperature: Cool white
- Mounting Method: Pendant
- Optical distribution: Type V
- Voltage rating: 100-277 V
- Frequency rating: 50/60 Hz
- Wattage: 57 W
- Dimming: Dimmable driver
- Power factor: > 0.90
- Guard type: No guard
- Standards type: NEC/CEC IEC
- NEMA Rating: 4X
- Ingress protection (IP) ratings: IP66
Specifications
- Part Number: PVML-7-2A-UNV1-S903
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Highbay, lowbay and industrials
- Type : Light fixture
- Voltage : 100-277 V
- Nema Rating : 4X
- Watts : 57 W
- Enclosure : IP66
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 7000
- Lumens per watt : 129
- Color temperature : Cool white
- Mounting Method : Pendant
- Equivalent luminaire : 175W HID
- Guard type : No guard
- Dimming : Dimmable driver
- Power factor : > 0.90
- Trade size : 100-240 Vac, 127-250 Vdc
- Certifications and compliances : NEC/CEC IEC
Product Data
- UPC : 662276899193
- Dimensions : 11.62 in x 11 in x 11.62 in (Length/Depth x Height x Width)
- Weight : 20.25 lb
