Product Info
- Manufacturer:Eaton
- Sub-Category:Highbay, lowbay and industrials
Description
PVML-3-W-C2-R3A1-UNV1-M2

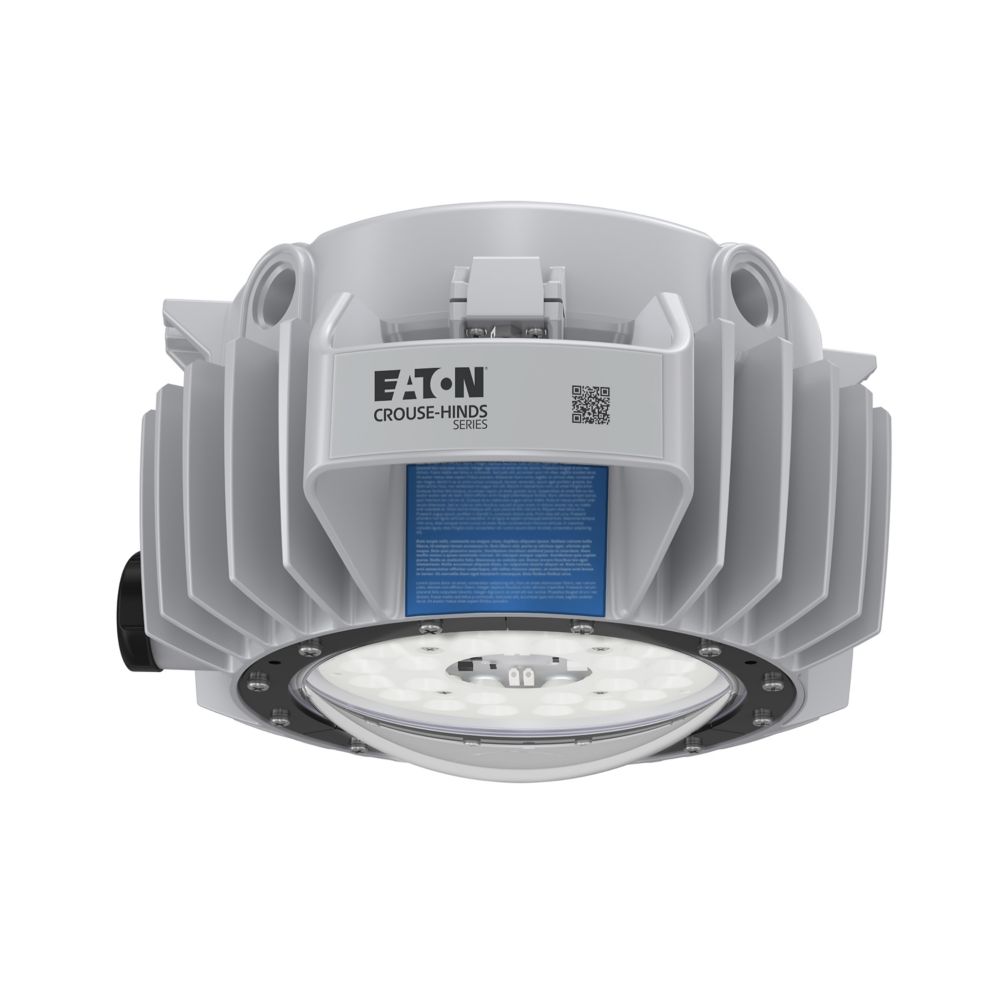

PVML-3-W-C2-R3A1-UNV1-M2 is an Eaton Crouse-Hinds Champ Pro series LED light fixture designed for ordinary and hazardous locations.This warm white LED fixture features heat and impact resistant glass lens, die cast aluminum construction, Type III optics, 3000 lumens output at 156 lm/W efficacy, and is rated for wet locations with NEMA 4X and IP66 protection.Key Specifications
- Part Number: PVML-3-W-C2-R3A1-UNV1-M2
- Manufacturer: Eaton
- Voltage rating: 100-277 Vac, 127-250 Vdc
- Frequency rating: 50/60 Hz
- Wattage: 21W
- Lumens: 3000
- Lumens per watt: 156
- Color temperature: Warm white
- Power factor: > 0.90
- Guard type: No guard
- Lens material: Heat and impact resistant glass
- Material: Die cast aluminum
- NEMA Rating: 4X
- Ingress protection (IP) ratings: IP66
Specifications
- Part Number: PVML-3-W-C2-R3A1-UNV1-M2
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Highbay, lowbay and industrials
- Nema Rating : 4X
- Watts : 21W
- Enclosure : IP66
- Hz : 50/60 Hz
- Dist Voltage : 100-277 Vac, 127-250 Vdc
- Material : Die cast aluminum
- Lumens : 3000
- Lumens per watt : 156
- Color temperature : Warm white
- Mounting Method : No mounting module
- Guard type : No guard
- Power factor : > 0.90
Product Data
- UPC : 662277187787
- Dimensions : 13 in x 8 in x 16 in (Length/Depth x Height x Width)
- Weight : 12 lb
