Product Info
- Manufacturer:Eaton
- Sub-Category:High bay, low bay and industrial
Description
PVML-3-UNV1-SS12-M3

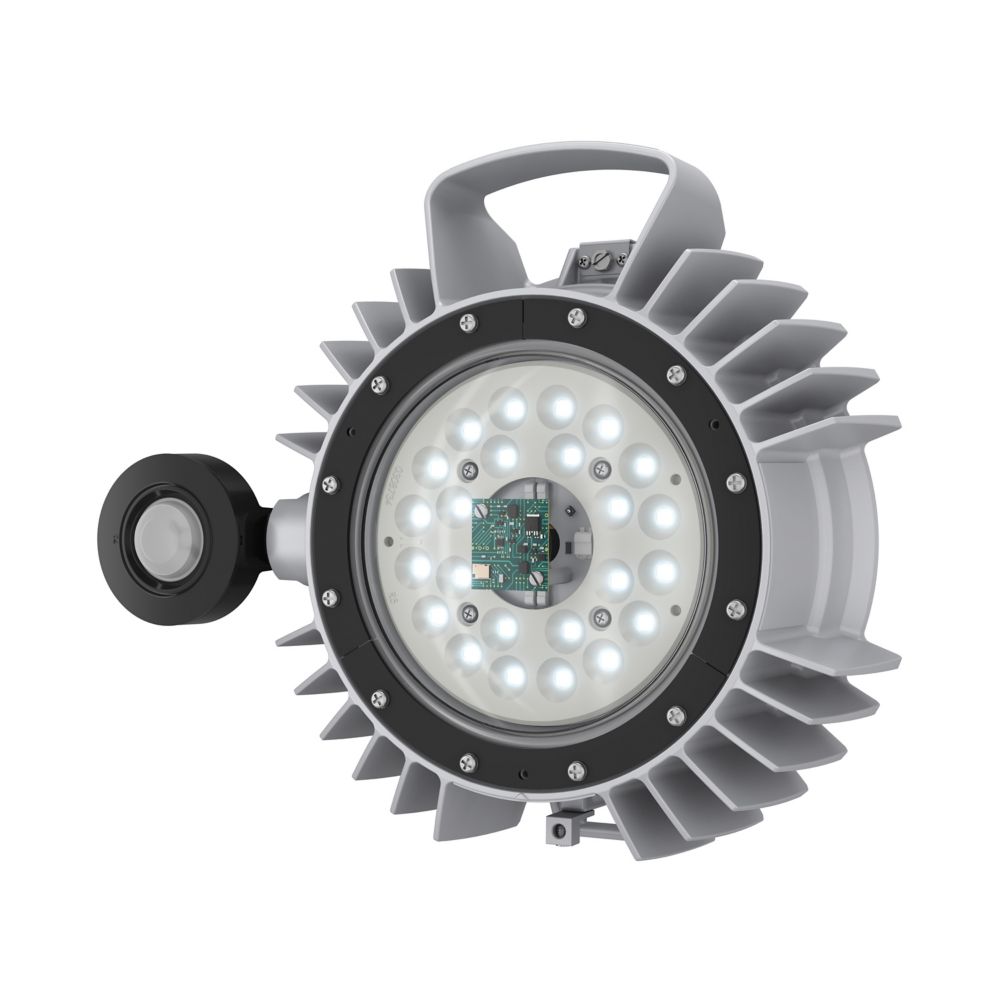

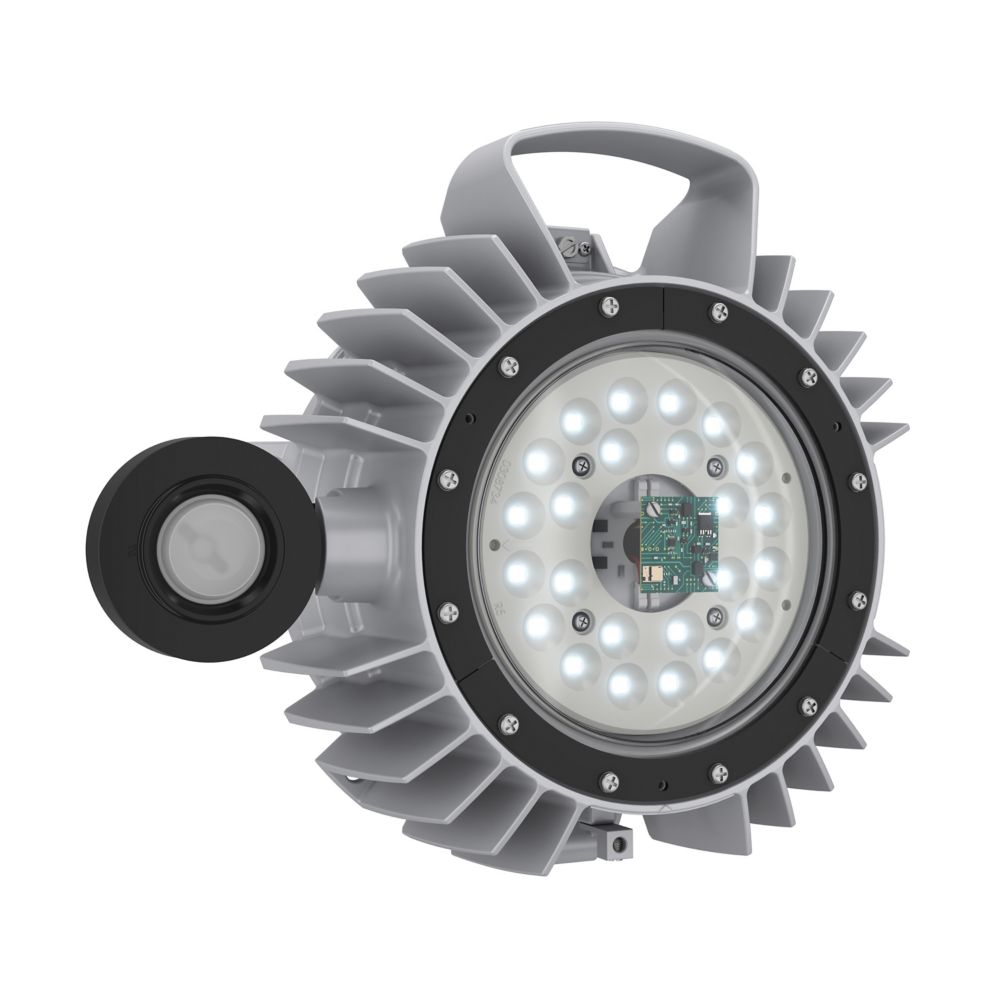

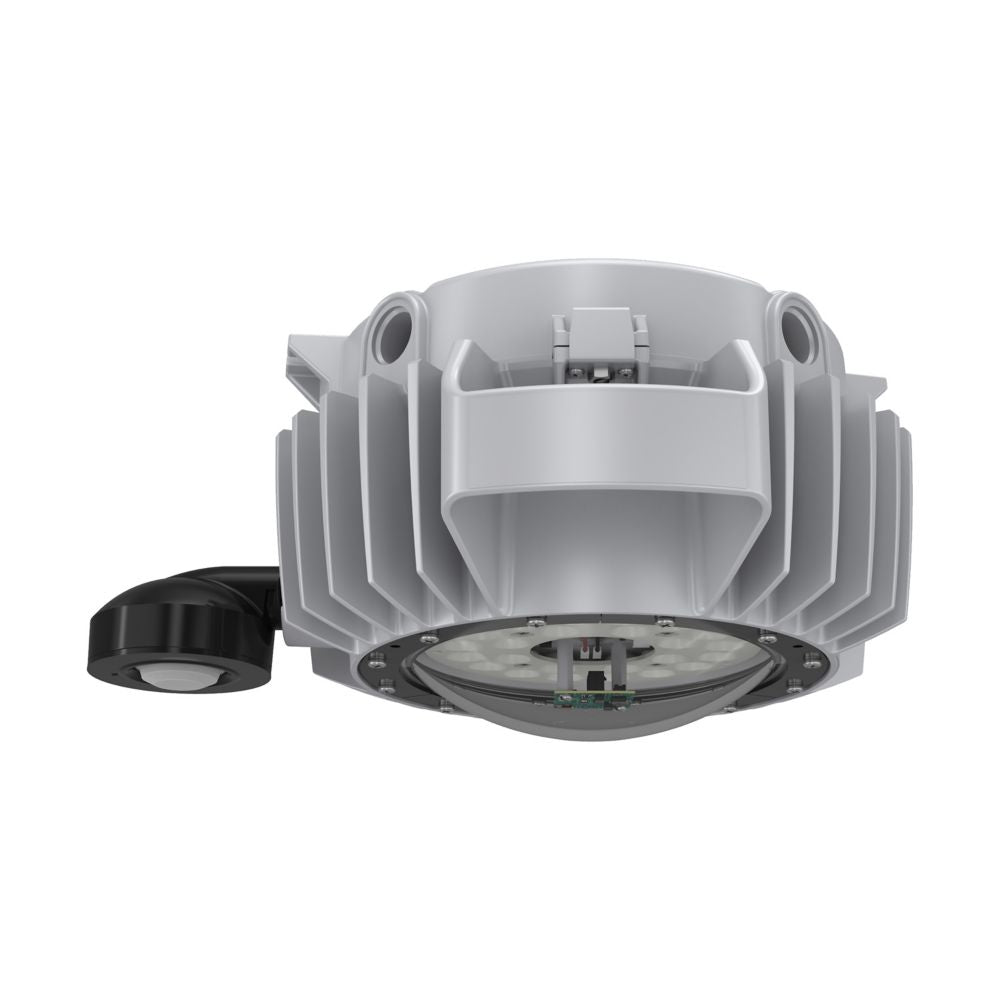

PVML-3-UNV1-SS12-M3 is an Eaton Crouse-Hinds series Champ Pro PVML intelligent LED light fixture designed for industrial applications.This dimmable LED fixture delivers 3000 lumens at 156 lm/W with Type V optics, heat and impact resistant glass lens, and no guard, suitable for corrosive and wet environments with NEMA 4X and IP66 ratings.Key Specifications
- Part Number: PVML-3-UNV1-SS12-M3
- Manufacturer: Eaton
- Lumens: 3000
- Lumens per Watt: 156 lm/W
- Voltage Rating: 100-277 Vac, 127-250 Vdc
- Wattage: 21W
- Frequency: 50/60 Hz
- Dimming: Dimmable driver
- Optical Distribution: Type V
- NEMA Rating: 4X
- Ingress Protection: IP66
- Color Temperature: Cool white
- Guard Type: No guard
- Mounting Method: No mounting module
Specifications
- Part Number: PVML-3-UNV1-SS12-M3
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : High bay, low bay and industrial
- Voltage : 100-277 Vac, 127-250 Vdc
- Nema Rating : 4X
- Watts : 21W
- Mounting : No mounting module
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 3000
- Lumens per watt : 156 lm/W
- Color temperature : Cool white
- Mounting Method : No mounting module
- Guard type : No guard
- Dimming : Dimmable driver
- Power factor : > 0.90
- Special features : Sensor with barrier board
Product Data
- UPC : 662277167024
- Dimensions : 18.25 in x 6.5 in x 16 in (Length/Depth x Height x Width)
- Weight : 14.98 lb
