PVML-25-N-UNV1-M2 - Eaton Lighting and controls 25000 Lumens

PVML-25-N-UNV1-M2

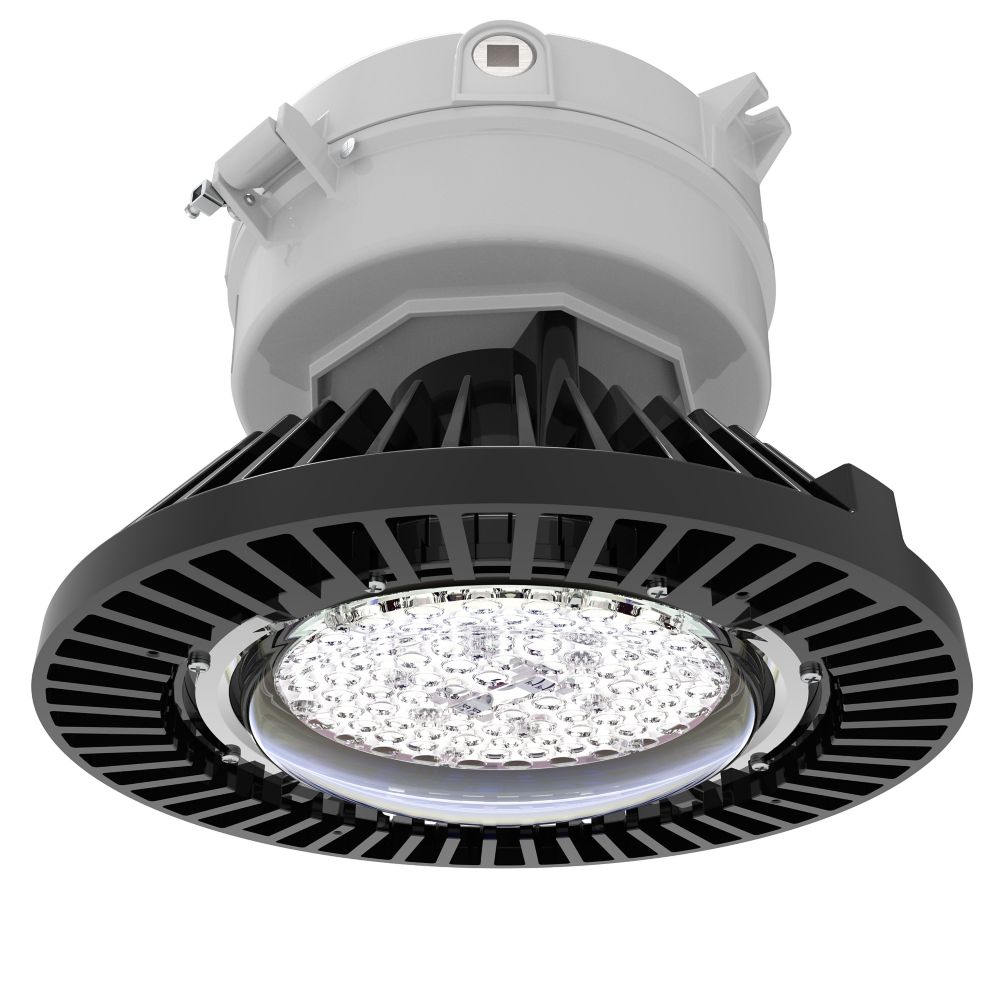

PVML-25-N-UNV1-M2 is an Eaton Crouse-Hinds series Champ Pro PVML LED light fixture designed for harsh industrial environments.

• 25000 lumens with 121 lm/W efficacy and neutral white color temperature.
• 212W wattage, 120-277 Vac / 108-250 Vdc voltage, 50/60 Hz frequency.
• NEMA 4X / IP66 rated, dimmable driver, power factor >0.90, Type V distribution.
• Die cast aluminum housing with heat and impact resistant glass lens, no guard.

Key Specifications

• Part Number: PVML-25-N-UNV1-M2
• Manufacturer: Eaton
• Lumens: 25000
• Lumens per Watt: 121
• Color Temperature: Neutral white
• Voltage Rating: 120-277 Vac, 108-250 Vdc
• Frequency Rating: 50/60 Hz
• Wattage: 212W
• NEMA Rating: 4X
• Ingress Protection: IP66
• Dimming: Dimmable driver
• Power Factor: > 0.90
• Optical Distribution: Type V
• Guard Type: No guard
• Lens Material: Heat and impact resistant glass
• Material: Die cast aluminum

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PVML-25-N-UNV1-M2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 120-277 Vac, 108-250 Vdc
• Nema Rating : 4X
• Watts : 212W
• Hz : 50/60 Hz
• Material : Die cast aluminum
• Ingress protection (IP) ratings : IP66
• Lumens : 25000
• Lumens per watt : 121
• Color temperature : Neutral white
• Mounting Method : No mounting module
• Equivalent luminaire : 750W-1000W HID
• Guard type : No guard
• Dimming : Dimmable driver
• Power factor : > 0.90

Product Data

• UPC : 662276989801
• Dimensions : 14.17 in x 9.53 in x 14.17 in (Length/Depth x Height x Width)
• Weight : 22.3 lb
