PVML-13-N-UNV1-M2 - Eaton Lighting and controls LED Fixture 13000 lm

PVML-13-N-UNV1-M2

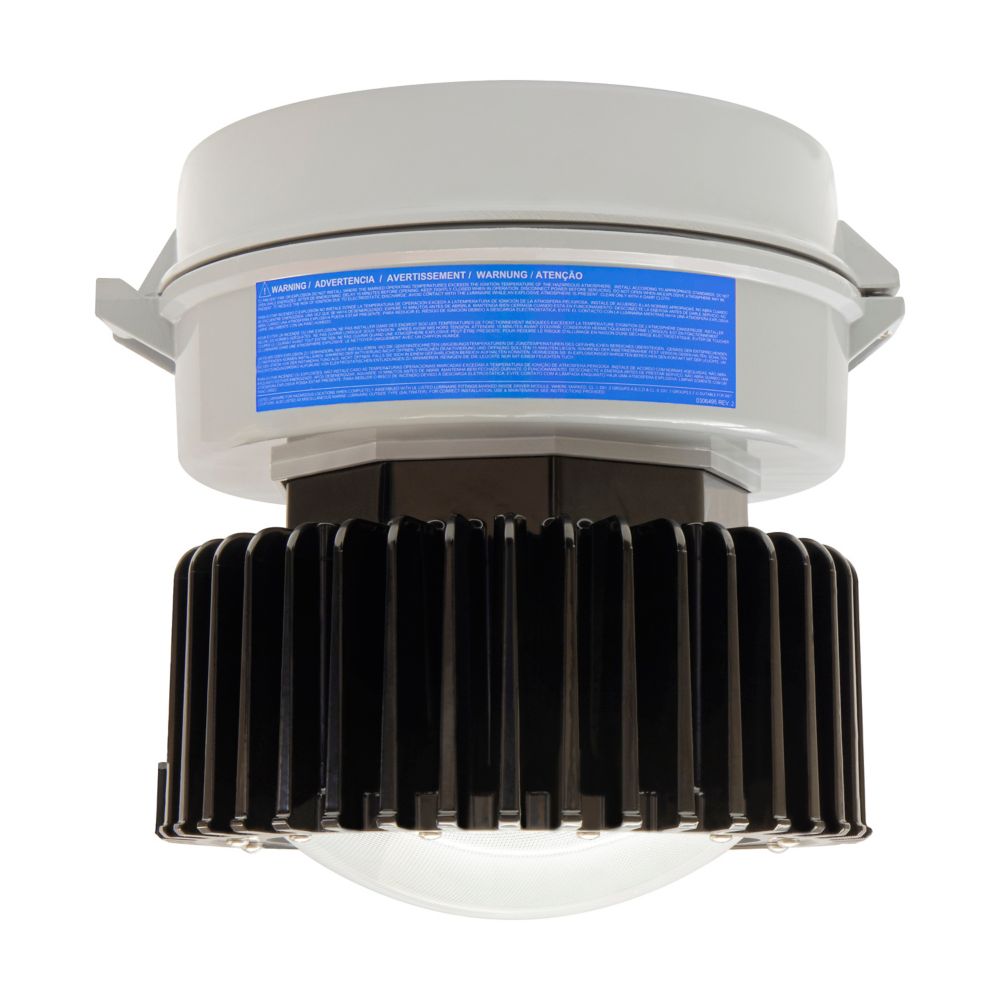

PVML-13-N-UNV1-M2 is an Eaton Crouse-Hinds series Champ Pro LED light fixture designed for general illumination in ordinary locations. This neutral white LED fixture delivers 13000 lumens with exceptional efficiency and durability. The unit features a heat and impact resistant glass lens, die cast aluminum construction, and a NEMA 4X rating for corrosion resistance. It operates across a wide voltage range and includes a dimmable driver for flexible lighting control. Key Specifications

• Part Number: PVML-13-N-UNV1-M2
• Manufacturer: Eaton
• Lumens: 13000
• Lumens per Watt: 125
• Wattage: 95 W
• Color Temperature: Neutral white
• Voltage Rating: 100-277 Vac, 127-250 Vdc
• Frequency: 50/60 Hz
• NEMA Rating: 4X
• IP Rating: IP66
• Optical Distribution: Type V
• Dimming: Dimmable driver
• Power Factor: > 0.90
• HID Equivalent: 400W
• Material: Die cast aluminum
• Lens Material: Heat and impact resistant glass
• Dimensions: 13 in L x 12.75 in W x 13.13 in H
• Weight: 20.8 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PVML-13-N-UNV1-M2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 100-277 V
• Nema Rating : 4X
• Watts : 95 W
• Hz : 50/60 Hz
• Material : Die cast aluminum
• Ingress protection (IP) ratings : IP66
• Lumens : 13000
• Lumens per watt : 125
• Color temperature : Neutral white
• Mounting Method : No mounting module
• Equivalent luminaire : 400W HID
• Guard type : No guard
• Dimming : Dimmable driver
• Power factor : > 0.90

Product Data

• UPC : 662276972162
• Dimensions : 13 in x 13.13 in x 12.75 in (Length/Depth x Height x Width)
• Weight : 20.8 lb
