PVML-11-P-UNV34 - Eaton Lighting and controls LED Fixture 11000 lm

PVML-11-P-UNV34

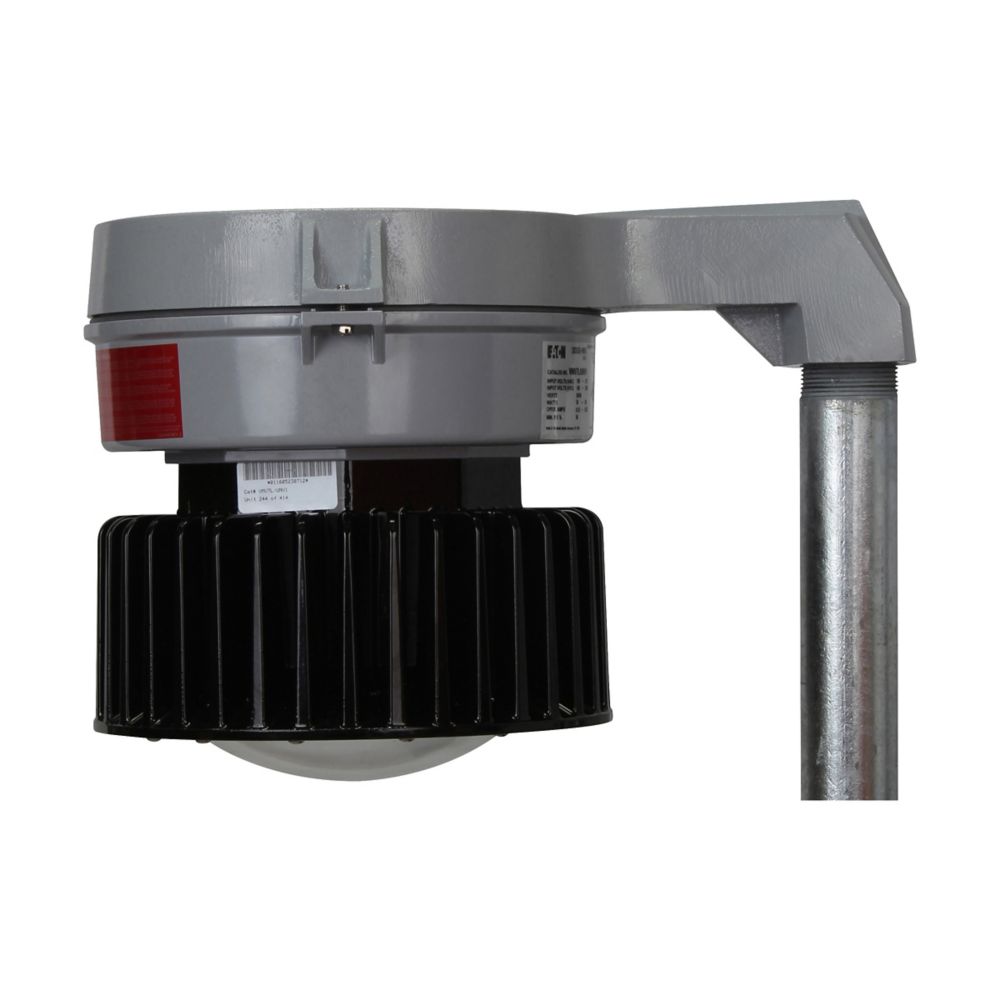

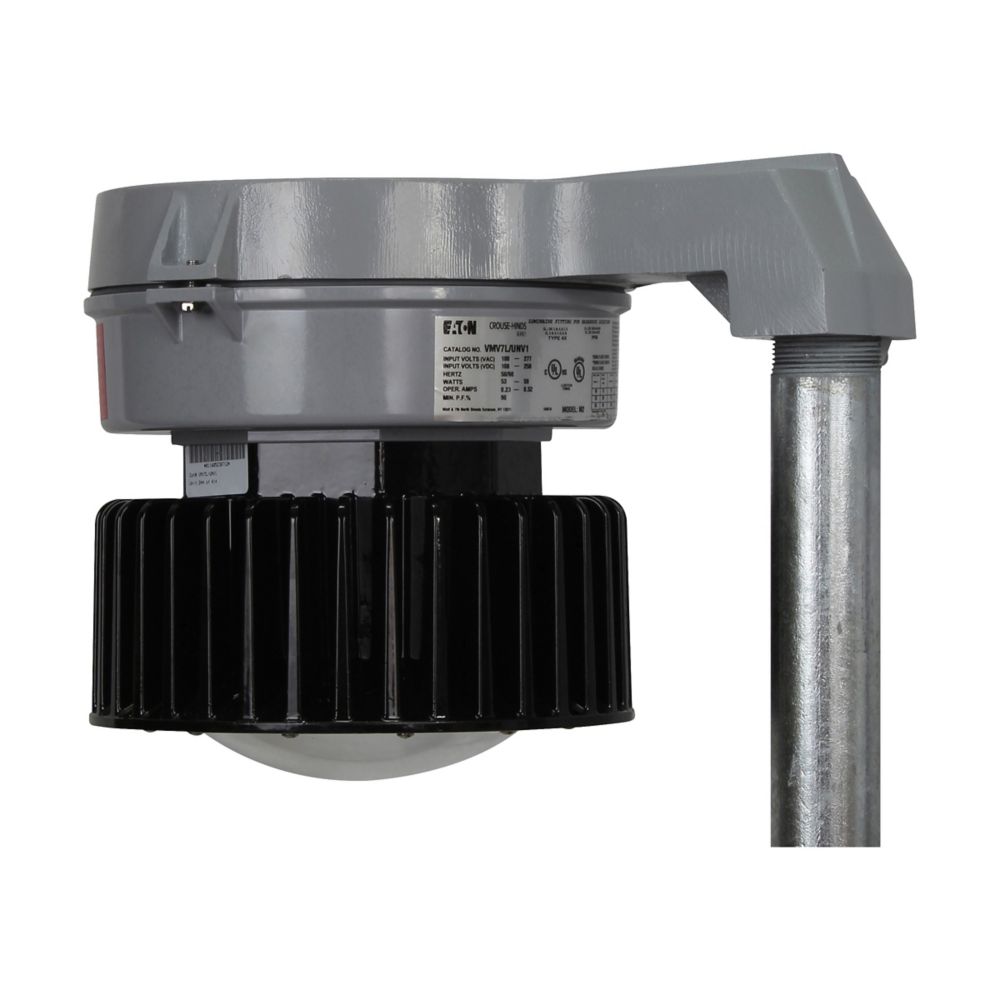

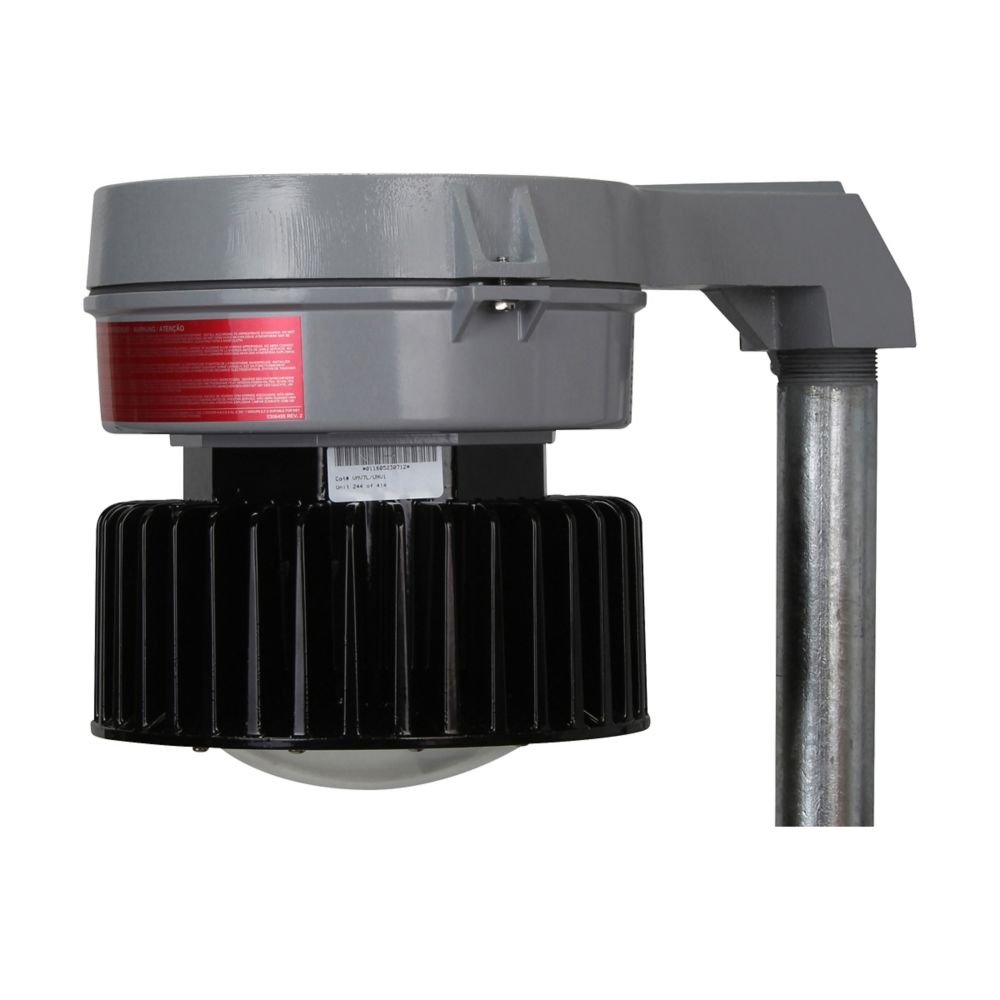

PVML-11-P-UNV34 is an Eaton Crouse-Hinds series Champ Pro PVML LED fixture designed for industrial lighting applications. This cool white LED luminaire delivers 11000 lumens with a 320W HID equivalent output, featuring a die cast aluminum construction with a glass lens and no guard. The fixture operates at 347-480 Vac, 50/60 Hz with an 83W power consumption and includes a dimmable driver for flexible lighting control. With a luminous efficacy of 134 lm/W and 50000 hours of rated life at 65°C ambient, this fixture provides reliable, energy-efficient performance for demanding industrial environments. Key Specifications

• Part Number: PVML-11-P-UNV34
• Manufacturer: Eaton
• Voltage: 347-480 V
• Frequency: 50/60 Hz
• Wattage: 83 W
• Lumens: 11000 lm
• Luminous Efficacy: 134 lm/W
• Color Temperature: 5000 K
• CRI: 70
• HID Equivalent: 320 W
• Dimming: Dimmable driver
• Rated Life: 50000 hours at 65°C
• Construction: Die cast aluminum
• Lens: Glass

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PVML-11-P-UNV34
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 347-480 V
• Nema Rating : 4X
• Watts : 83 W
• Hz : 50/60 Hz
• Duty : 50000 hours at 65°C
• Material : Die cast aluminum
• Ingress protection (IP) ratings : IP66
• Lumens : 11000 lm
• Lumens per watt : 134 lm/W
• Color temperature : 5000 K
• Mounting Method : Stanchion straight
• Equivalent luminaire : 320 W HID
• Guard type : No guard
• Dimming : Dimmable driver
• Power factor : > 0.90
• Trade size : 1-1/2"

Product Data

• UPC : 662276912243
• Dimensions : 16.03 in x 11.1 in x 11.62 in (Length/Depth x Height x Width)
• Weight : 23.7 lb
