Product Info
- Manufacturer:Eaton
- Sub-Category:Highbay, lowbay and industrials
Description
PVML-11-J-R1-G-UNV1

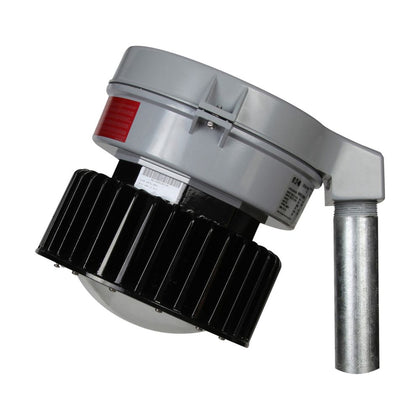

PVML-11-J-R1-G-UNV1 is an Eaton Crouse-Hinds Champ Pro series LED light fixture designed for ordinary and non-hazardous locations.
- 11000 lumens output with 92W power consumption, equivalent to 320W HID.
- 100-277 Vac / 127-250 Vdc universal voltage, 50/60 Hz.
- NEMA 4X and IP66 rated, die cast aluminum construction with glass lens and wire guard.
- Cool white color temperature, dimmable driver, power factor >0.90, Type I distribution.
- Stanchion 25° angled mounting, 1-1/2" trade size.
- Part Number: PVML-11-J-R1-G-UNV1
- Manufacturer: Eaton
- Lumens: 11000
- Voltage: 100-277 Vac, 127-250 Vdc
- Wattage: 92W
- Frequency: 50/60 Hz
- NEMA Rating: 4X
- IP Rating: IP66
Specifications
- Part Number: PVML-11-J-R1-G-UNV1
- Manufacturer : Eaton
- Brand : Eaton
- Category : Lighting and controls
- Item Subcategory : Highbay, lowbay and industrials
- Voltage : 100-277 Vac, 127-250 Vdc
- Nema Rating : 4X
- Watts : 92W
- Enclosure : Die cast aluminum
- Mounting : Stanchion 25° angled
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 11000
- Lumens per watt : 122 lm/W
- Color temperature : Cool white
- Mounting Method : Stanchion 25 deg angled
- Equivalent luminaire : 320W HID
- Guard type : Wire
- Dimming : Dimmable driver
- Power factor : > 0.90
- Trade size : 1-1/2"
Product Data
- UPC : 662276910959
- Dimensions : 15.07 in x 12.85 in x 11.62 in (Length/Depth x Height x Width)
- Weight : 22.7 lb
