PVML-11-2A-R1-G-UNV1 - Eaton Lighting and controls LED Fixture 11000 lm

PVML-11-2A-R1-G-UNV1

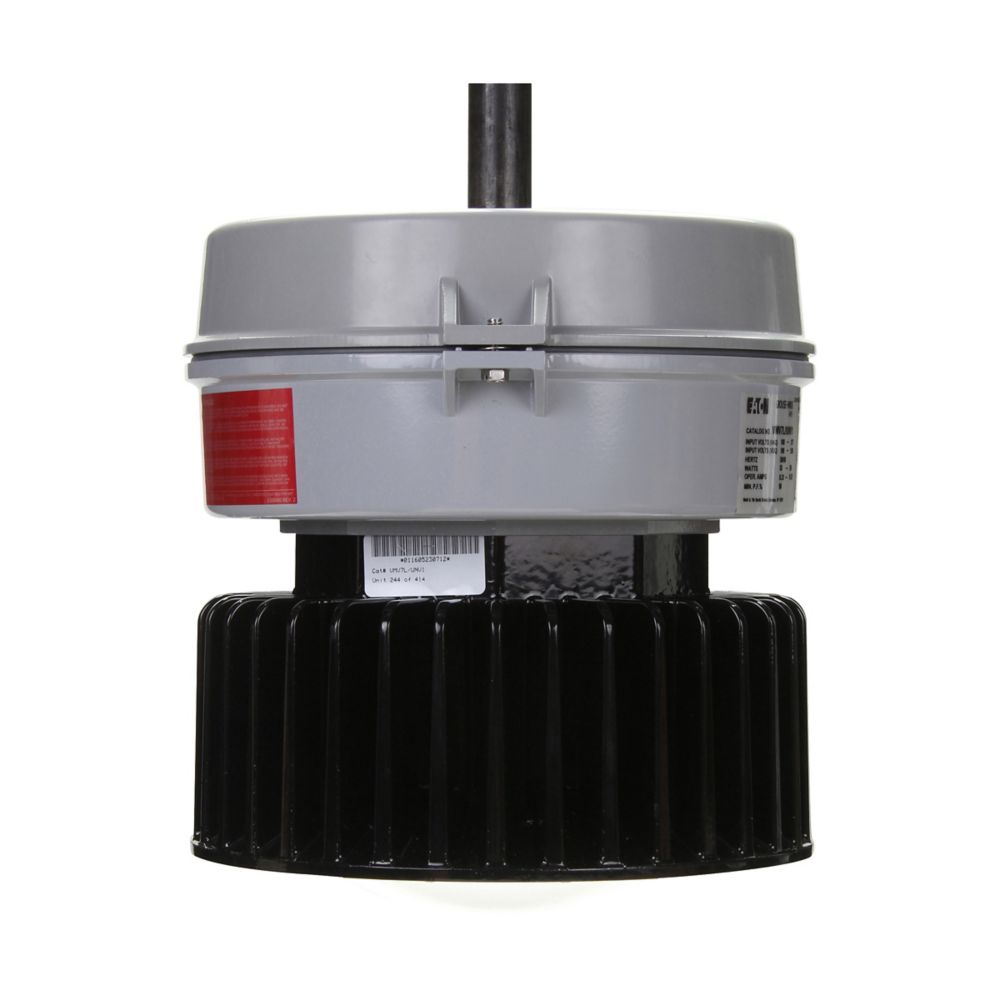

PVML-11-2A-R1-G-UNV1 is an Eaton Crouse-Hinds series Champ Pro PVML LED industrial light fixture designed for mid-bay and high-bay downlighting applications. This cool white LED fixture delivers 11000 lumens with a 320W HID equivalent output, providing efficient full-spectrum lighting for industrial environments. The fixture features a die cast aluminum construction with heat and impact resistant glass lens, wire guard protection, and pendant mounting. It is rated NEMA 4X with IP66 ingress protection, making it suitable for corrosive, wet, dusty, and extreme temperature conditions. The fixture operates at 92W with a power factor greater than 0.90 and includes a dimmable driver for flexible lighting control. It supports universal voltage input (100-277 Vac, 127-250 Vdc) at 50/60 Hz frequency and achieves 122 lumens per watt efficiency. The Type I optical distribution provides focused downlighting for general area illumination in heavy industrial, mining, platforms, loading docks, tunnels, and outdoor spotlighting applications. Key Specifications

• Part Number: PVML-11-2A-R1-G-UNV1
• Manufacturer: Eaton
• Lumens: 11000
• Wattage: 92W
• Lumens per Watt: 122
• Color Temperature: Cool white
• Voltage Rating: 100-277 Vac, 127-250 Vdc
• Frequency: 50/60 Hz
• NEMA Rating: 4X
• IP Rating: IP66
• Mounting Method: Pendant
• Optical Distribution: Type I
• Guard Type: Wire
• Dimming: Dimmable driver
• Power Factor: > 0.90
• Material: Die cast aluminum
• Lens Material: Heat and impact resistant glass
• HID Equivalent: 320W

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PVML-11-2A-R1-G-UNV1
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 100-277 V
• Nema Rating : 4X
• Watts : 92
• Hz : 50/60 Hz
• Protection : IP66
• Material : Die cast aluminum
• Ingress protection (IP) ratings : IP66
• Lumens : 11000
• Lumens per watt : 122
• Color temperature : Cool white
• Mounting Method : Pendant
• Equivalent luminaire : 320W HID
• Guard type : Wire
• Dimming : Dimmable driver
• Power factor : > 0.90
• Trade size : 3/4 inch

Product Data

• UPC : 662276910973
• Dimensions : 11.62 in x 11 in x 11.62 in (Length/Depth x Height x Width)
• Weight : 20.45 lb
