Product Info
- Manufacturer:Eaton
- Sub-Category:Low Voltage Fuse
Description

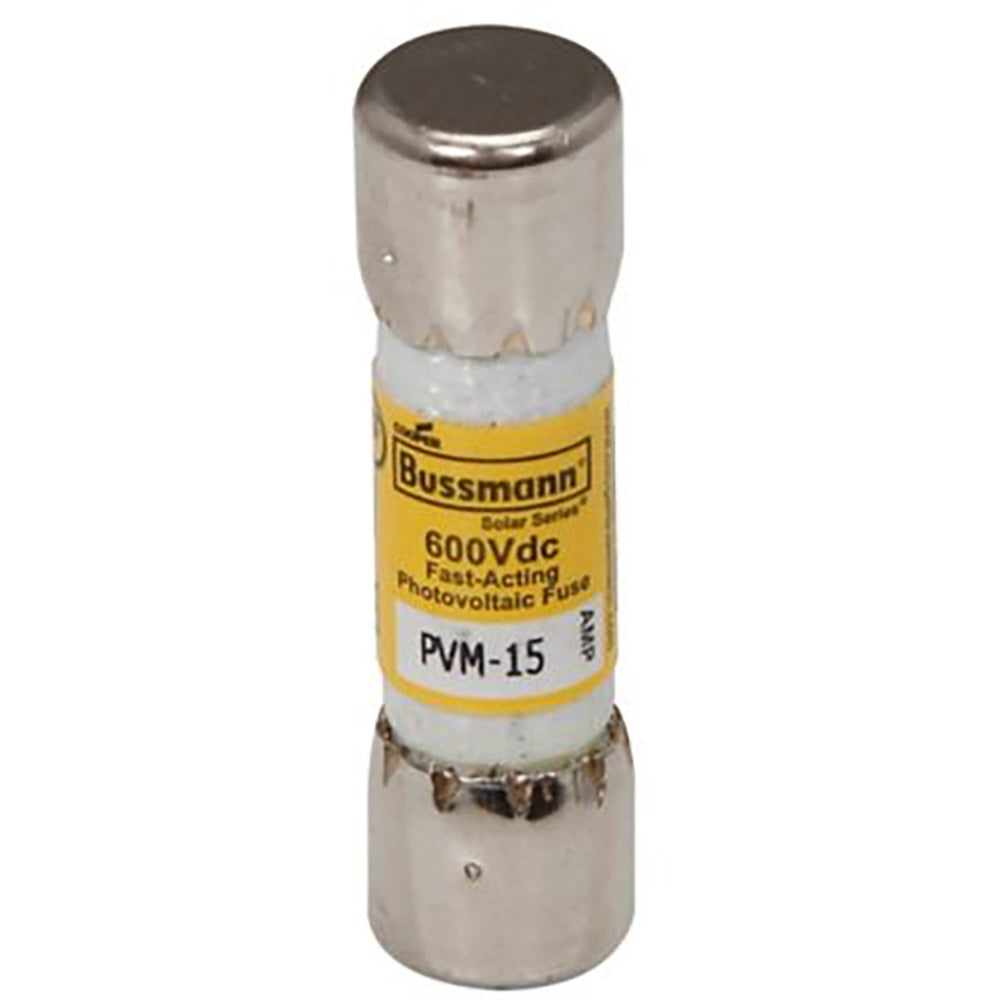

PVM-15
PVM-15 is a 15 Amp, 600 VDC fast-acting photovoltaic midget fuse designed for reliable protection in solar power systems.This Eaton Bussmann series PVM fuse features a 10x38 mm (13/32" x 1-1/2") footprint, UL 248-19 listing for photovoltaic applications, and a 50 kA interrupt rating. It provides fast-acting protection under low fault current conditions typical in PV systems and performs reliably in extreme temperature cycling. The fuse is RoHS compliant and ideal for use with solar combiner boxes, inverters, and solar strings.
- Amperage: 15 A
- Voltage Rating: 600 VDC
- Fuse Type: Fast-Acting
- Size: 10x38 mm (13/32" x 1-1/2") midget
- Interrupt Rating: 50 kA DC
- Mounting Type: Fuse holder required
- UL Listed: UL 248-19 for photovoltaic use
- RoHS Compliant
- Application: Photovoltaic solar power systems
Specifications
- Part Number: PVM-15
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Low Voltage Fuse
- Family : PVM Series
- Type : PVM
- Voltage : 600
- Amperage : 15
- AIC rating : 50kA@600VDC
- Connection : Ferrule
- Diameter : 10.3
- Barrels : 1
- Velocity : Fast Acting
Product Data
- UPC : 51712369268
- GTIN : 00051712369268
- Country of Origin : Mexico
- Dimensions : x 13/32 in x
- Weight : 0.08
- Certification : CSA, E335324, UL 2579
