Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
PV-5A10F

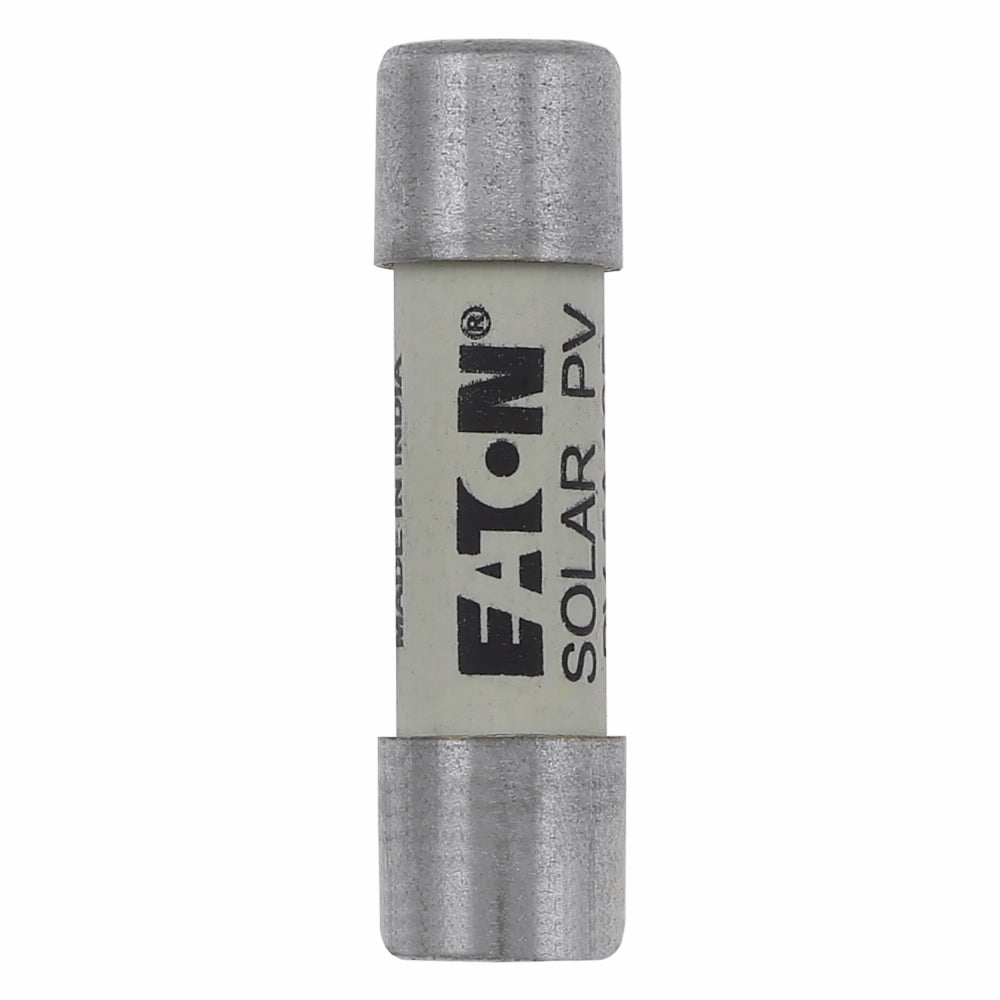

PV-5A10F is a Bussmann Series photovoltaic fuse designed for reliable circuit protection in solar power systems. This fuse features a 5A current rating and a 1000VDC voltage rating, making it suitable for demanding PV applications. The PV-5A10F is a non-indicating fuse with a 50kAIC interrupt rating, ensuring safe operation under high fault current conditions. It is constructed with a ceramic body and ferrule ends, providing durability and compatibility with standard 10x38mm fuse holders. The fuse is engineered for use in environments with extreme temperatures and high cycling, meeting IEC 60269-6 Type A and Class gPV standards.
- Part Number: PV-5A10F
- Manufacturer: Eaton
- Series: Bussmann Series
- Amperage Rating: 5A
- Voltage Rating: 1000VDC
- Interrupt Rating: 50kAIC
- Mounting Type: Ferrule End x Ferrule End
- Physical Size: 10x38mm
- Indication Type: Non-Indicating
- Standards: IEC 60269-6 Type A, Class gPV
- Time Constant: 1-3 ms
- Watt Losses: 1 W
Specifications
- Part Number: PV-5A10F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : PV Series
- Type : PV
- Voltage : 1000
- Amperage : 5
- AIC rating : 50kA@1000Vdc
- Connection : Ferrule
- Diameter : 0.01
- Barrels : 1
Product Data
- UPC : 051712245203
- GTIN : 00051712245203
- Country of Origin : India
- Dimensions : 38 mm x 10 mm x 10 mm (Length/Depth x Height x Width)
- Weight : 0.02093
- Certification : CCC (1-15A), CSA, IEC 60269-6, UL 2579 (File number E335324)
