Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
PV-32A14F

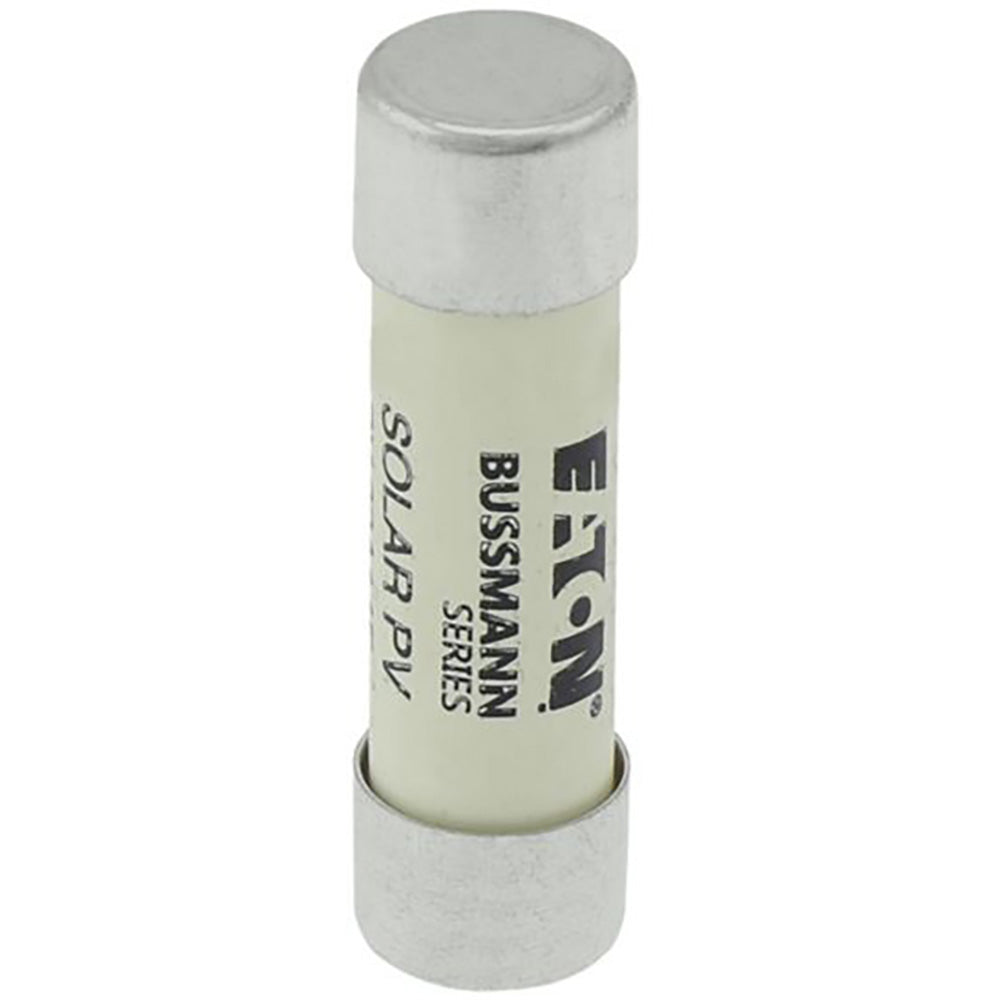

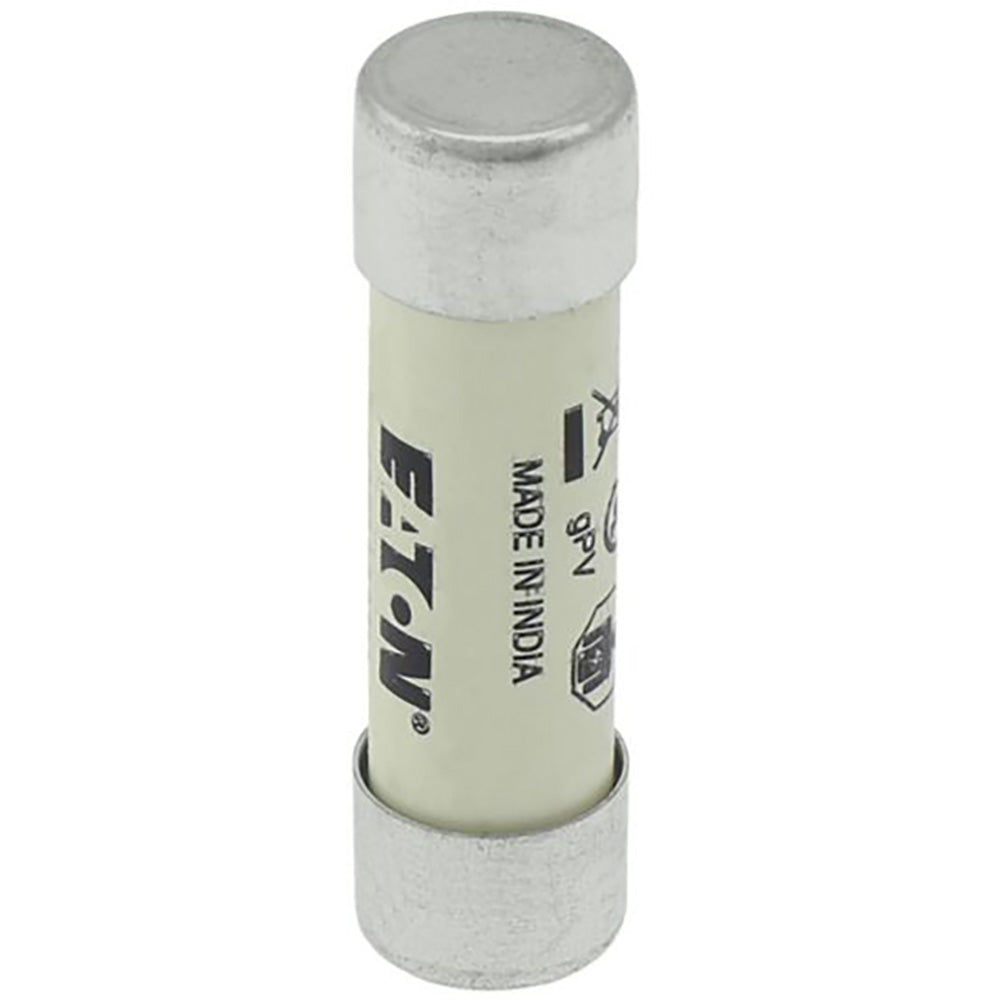

PV-32A14F is a 32 amp, 1000V DC photovoltaic fuse from Eaton's Bussmann series designed for solar string protection.This fuse features a 14 x 51 mm ferrule size, a 30 kA interrupt rating, and is classified as Class gPV. It is suitable for photovoltaic string applications and compatible with CHPV14 modular fuse holders. The fuse is UL Listed, IEC Rated, and CCC certification is pending.
- Amperage Rating: 32 A
- Voltage Rating: 1000 V DC
- Interrupt Rating: 30 kAIC
- Fuse Type: PV-A14F
- Fuse Size: 14 x 51 mm
- Class: Class gPV
- Application: Photovoltaic strings
- Fuse Indicator: Other (non-indicating)
- Compatible Holder: CHPV14 Modular fuse holder
- Certifications: UL Listed, IEC Rated, CCC pending
- Watt Losses: 6.2 W
- Product Dimensions: 15 mm width x 15 mm height x 51 mm length
Specifications
- Part Number: PV-32A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : PV Series
- Type : PV
- Voltage : 1000
- Amperage : 32
- AIC rating : 10kA@1000Vdc
- Connection : Ferrule
- Diameter : 0.14
- Barrels : 1
Product Data
- UPC : 05171237722
- GTIN : 00051712377225
- Dimensions : 51 mm x 15 mm x 15 mm (Length/Depth x Height x Width)
- Weight : 0.04945
