Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
PV-25A14F

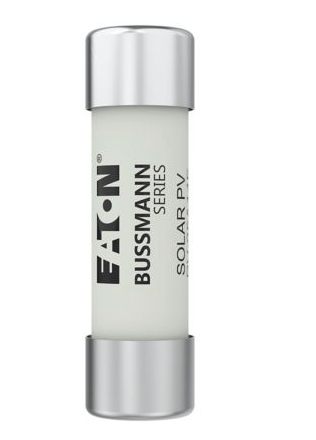

PV-25A14F is a 25 amp, 1000 Vdc photovoltaic fuse from Eaton's Bussmann series designed for protecting photovoltaic strings.
This fuse features a 14 x 51 mm ceramic body with copper terminals, providing fast-acting protection under low fault current conditions typical in PV systems. It has a 30 kA interrupt rating and is non-indicating. The crimp terminals eliminate the need for a fuse holder or block, supporting easy installation. This fuse meets UL and IEC photovoltaic standards for global acceptance and is suitable for use in recombiner boxes and inverters.
- Amperage: 25A
- Voltage Rating: 1000 Vdc
- Interrupt Rating: 30 kAIC
- Fuse Size: 14 x 51 mm
- Fuse Type: Photovoltaic (PV) Fuse
- Body Material: Ceramic
- Terminal Material: Copper
- Non-Indicating
- Mounting: Crimp terminals, no fuse holder required
- Standards: UL and IEC photovoltaic certified
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PV-25A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : PV Series
- Type : PV
- Voltage : 1000
- Amperage : 25
- AIC rating : 10kA@1000Vdc
- Connection : Ferrule
- Diameter : 0.14
- Barrels : 1
Product Data
- UPC : 051712377218
- GTIN : 00051712377218
- Dimensions : 51 mm x 15 mm x 15 mm (Length/Depth x Height x Width)
- Weight : 0.04945
