Description
PV-20A14F

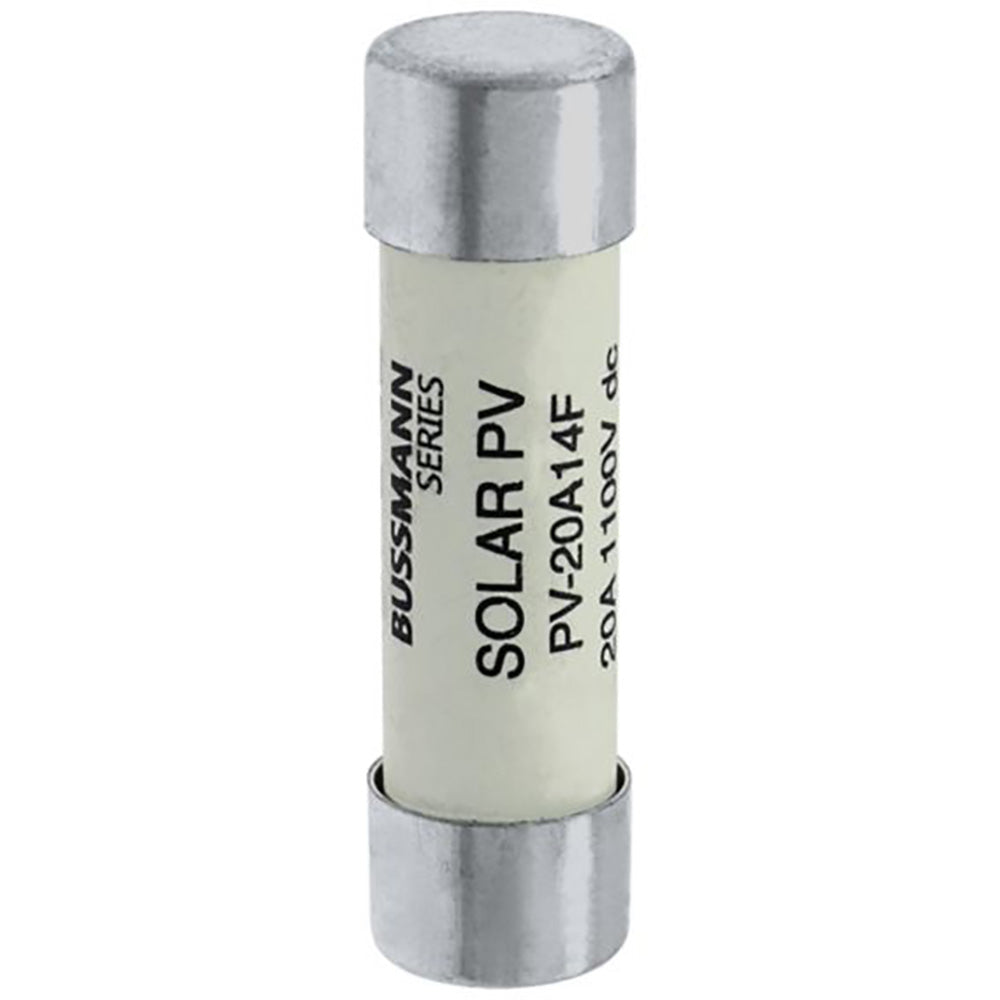

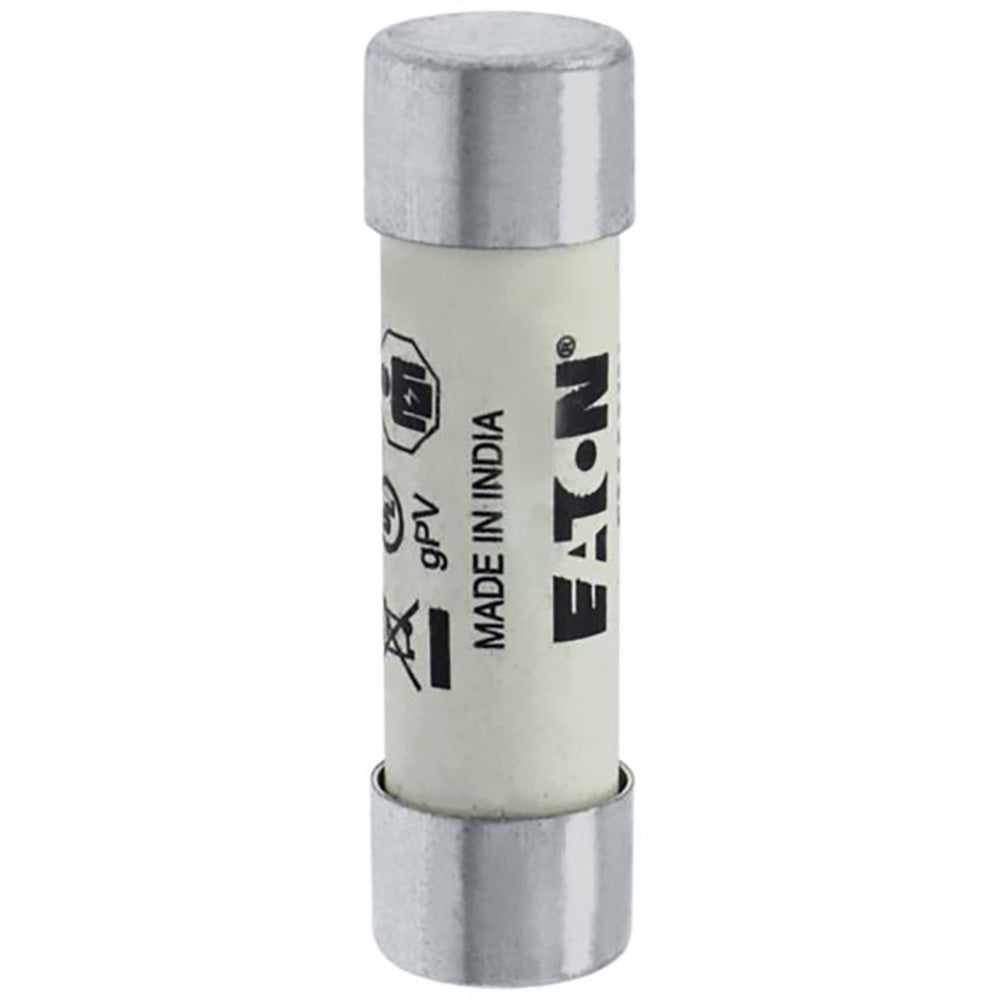

PV-20A14F is a Eaton Bussmann PV Series photovoltaic fuse designed for solar power applications. This fuse provides reliable protection for photovoltaic strings in medium voltage DC systems.This cartridge-style fuse features a 14 x 51 mm size and is rated for 1100 Vdc and 20A. It is non-indicating and designed for use in photovoltaic systems requiring high interrupt capacity and safety. The PV-20A14F is suitable for direct current (DC) circuits and is engineered for durability and performance in demanding solar environments.
- Part Number: PV-20A14F
- Manufacturer: Eaton Bussmann
- Series: PV Series
- Amperage: 20A
- Voltage Rating: 1100 Vdc
- Fuse Type: Cartridge
- Fuse Size: 14 x 51 mm
- Interrupt Rating: 30 kAIC
- Application: Photovoltaic strings
- Mounting Type: 1 Barrel
- Current Type: DC
- Operating Temperature: -45°C to 80°C
Specifications
- Part Number: PV-20A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Renewable & Non-Renewable Fuses
- Section : High speed photovoltaic fuse
- Family : PV Series
- Type : PV
- Voltage : 1100
- Amperage : 20
- AIC rating : 10kA@1000Vdc
- Connection : Ferrule
- Diameter : 0.14
- Barrels : 1
Product Data
- UPC : 051712377201
- GTIN : 051712377201
- Dimensions : 51 mm x 15 mm x 15 mm (Length/Depth x Height x Width)
- Weight : 0.05451
