Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description

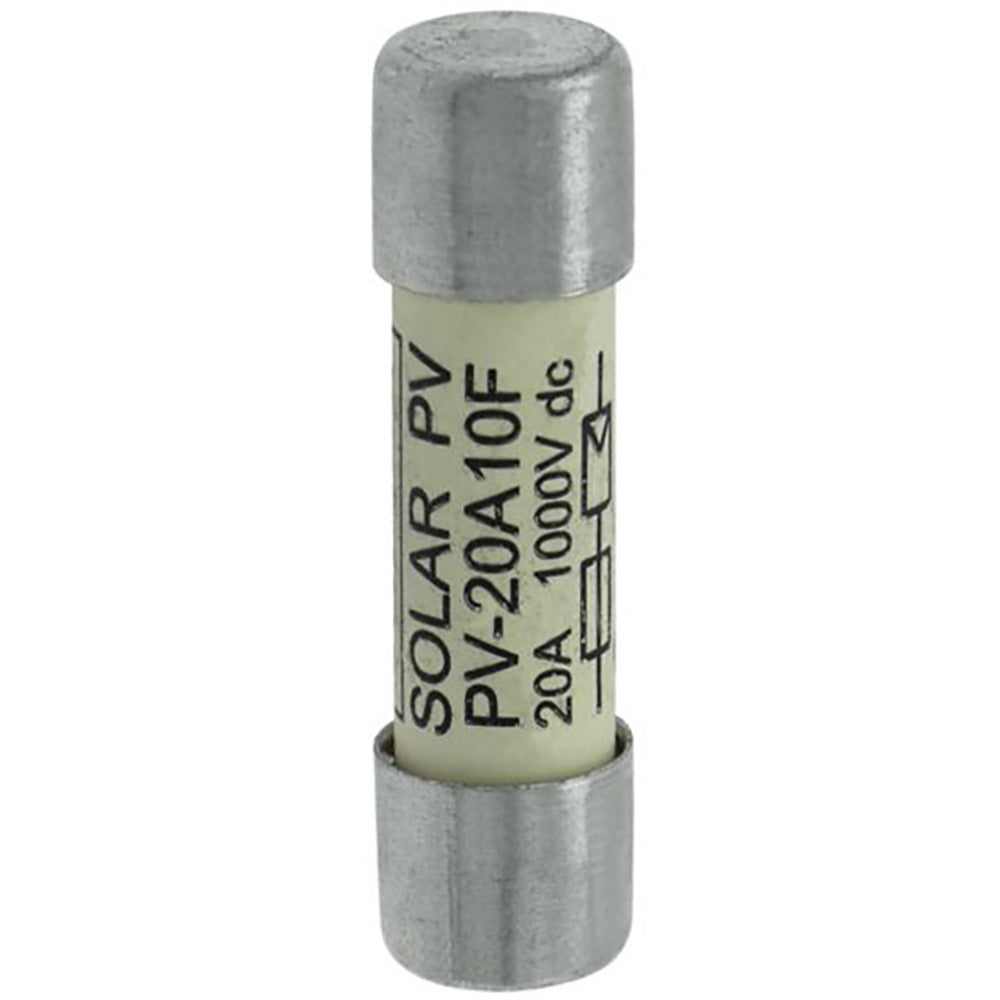

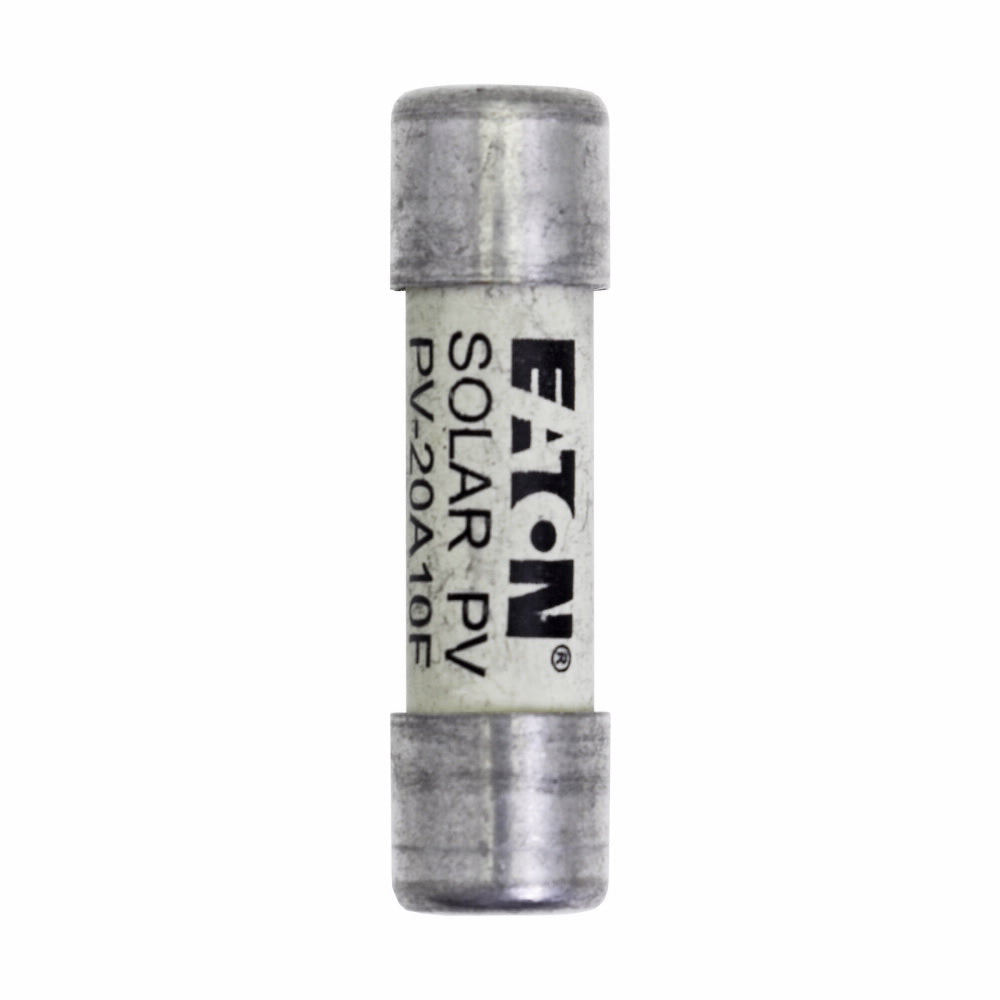

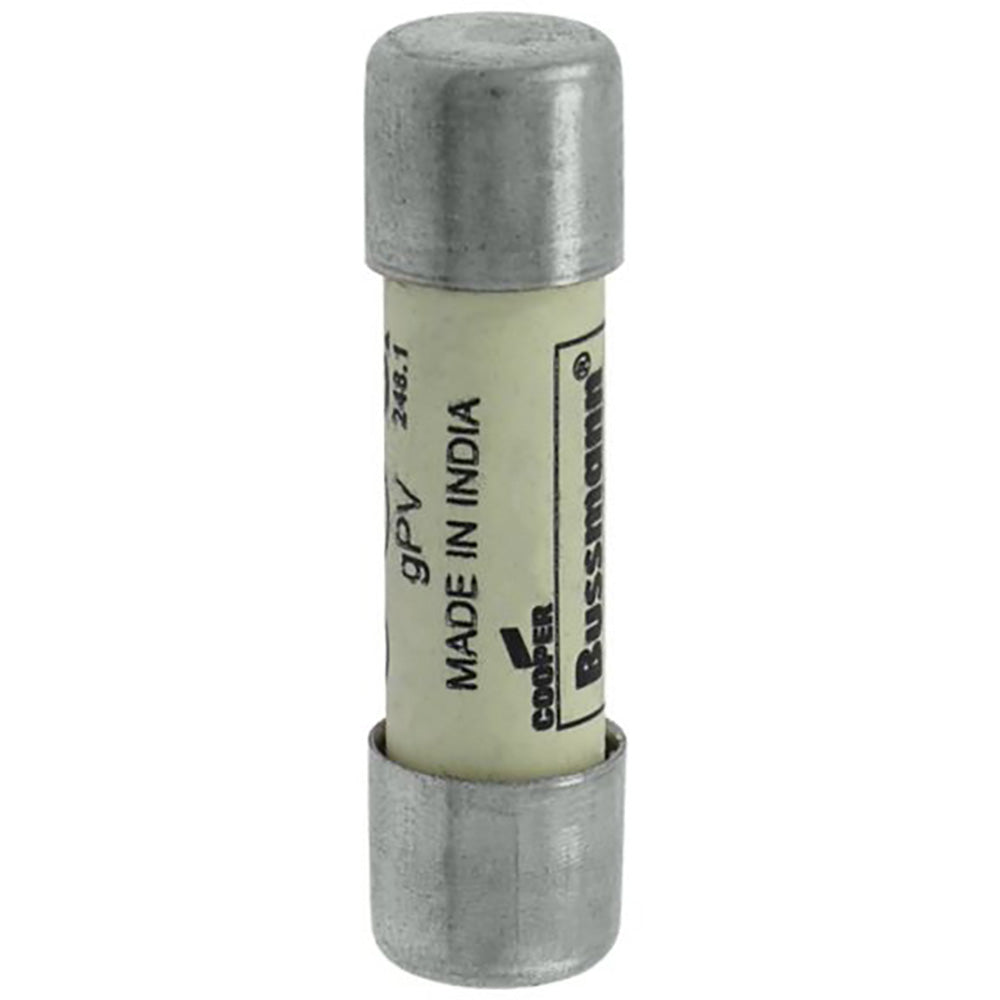

PV-20A10F
PV-20A10F is a 20A, 1000VDC photovoltaic fuse from the Eaton Bussmann series, designed for solar power applications requiring reliable circuit protection. This cartridge fuse features a gPV class rating and is built for high interrupt capacity and durability in demanding environments.Engineered to meet IEC 60269-6 Type A standards, the PV-20A10F offers non-indicating operation, a time constant of 1-3 ms, and ferrule end connections for secure mounting. Its ceramic cartridge construction provides excellent thermal and mechanical stability, making it ideal for use in solar PV systems where safety and performance are critical.
- Part Number: PV-20A10F
- Manufacturer: Eaton
- Amperage: 20A
- Voltage: 1000VDC
- Interrupt Rating: 50 kAIC
- Mounting Type: Cartridge
- Class: gPV
- Series: Bussmann
- Standards: IEC 60269-6 Type A
- Time Constant: 1-3 ms
- End Type: Ferrule x Ferrule
- Length: 38 mm
- Diameter: 10 mm
Specifications
- Part Number: PV-20A10F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : PV Series
- Type : PV
- Voltage : 1000
- Amperage : 20
- AIC rating : 50kA@1000Vdc
- Connection : Ferrule
- Diameter : 0.01
- Barrels : 1
Product Data
- UPC : 051712358231
- GTIN : 00051712358231
- Country of Origin : India
- Dimensions : 38 mm x 10 mm x 10 mm (Length/Depth x Height x Width)
- Weight : 0.02231
- Certification : CCC (1-15A), CSA, IEC 60269-6, UL 2579 (File number E335324)
