Product Info
- Manufacturer:Eaton
- Sub-Category:Medium Voltage Fuse
Description
PV-15A14F

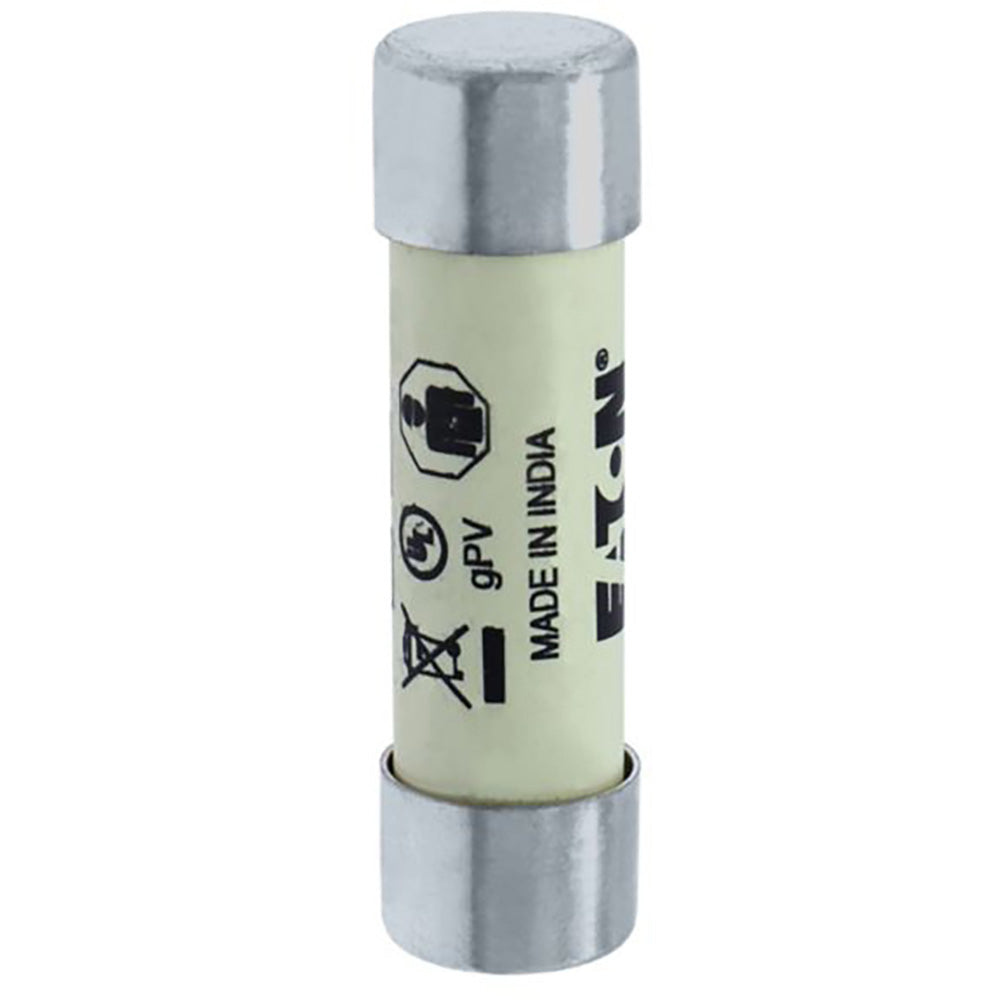

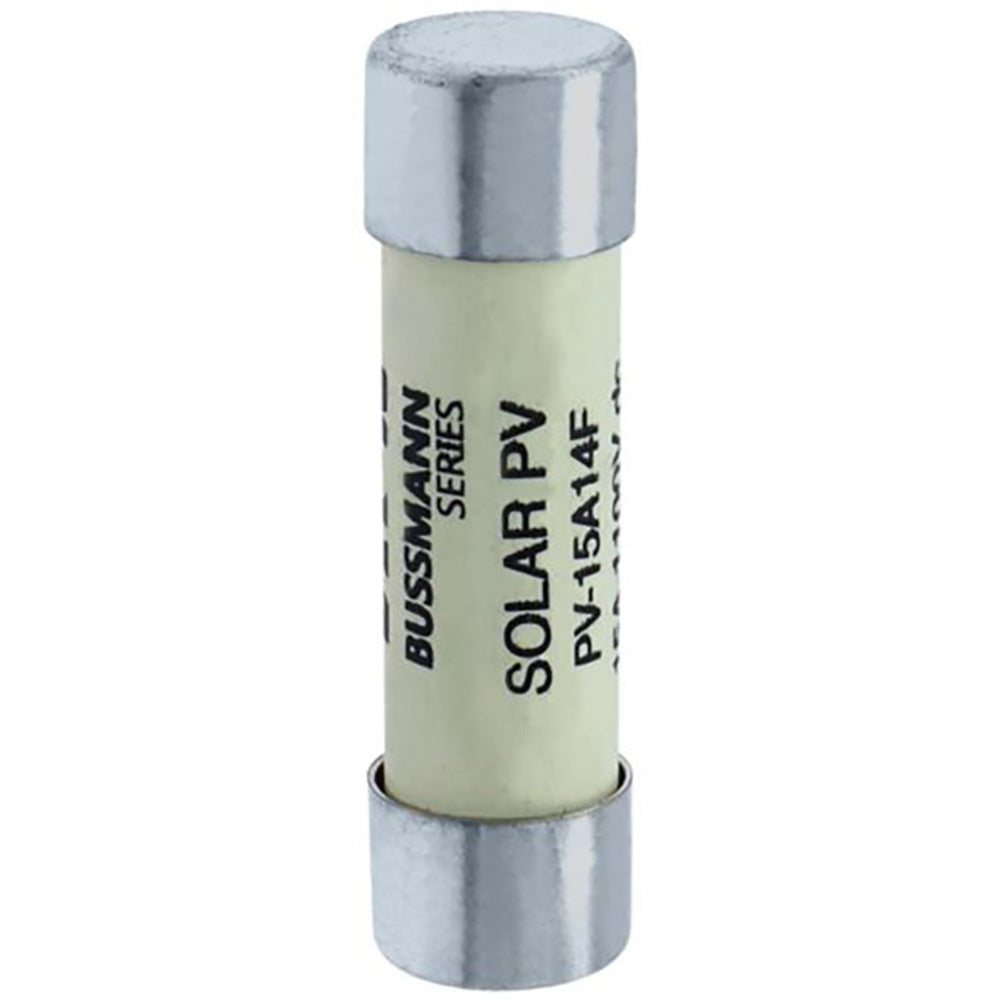

PV-15A14F is a photovoltaic fuse from Eaton's Bussmann series designed for solar power system protection.
This fuse features a 15 ampere rating and a voltage rating of 1100 Vdc, suitable for photovoltaic applications. It has a fuse size of 14 x 51 mm and a Class gPV rating. The fuse is non-indicating and offers an interrupt rating of 30 kAIC. It is UL listed and IEC rated, ensuring compliance with industry safety standards. The compact dimensions include a length of 51 mm, height of approximately 14.4 mm, and width of approximately 14.4 mm, with a weight of 21.5 grams.
- Amperage: 15 A
- Voltage: 1100 Vdc
- Fuse Size: 14 x 51 mm
- Series: Bussmann
- Class: gPV
- Interrupt Rating: 30 kAIC
- Fuse Indicator: Non-indicating
- Certifications: UL Listed, IEC Rated
- Application: Photovoltaic systems
- Weight: 21.5 g
- Dimensions (LxHxW): 51 mm x 14.4 mm x 14.4 mm
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PV-15A14F
- Manufacturer : Eaton
- Brand : Bussmann
- Category : Fuse
- Item Subcategory : Medium Voltage Fuse
- Family : PV Series
- Type : PV
- Voltage : 1100
- Amperage : 15
- AIC rating : 10kA@1000Vdc
- Connection : Ferrule
- Diameter : 0.14
- Barrels : 1
Product Data
- UPC : 051712377195
- GTIN : 00051712377195
- Dimensions : 51 mm x 14 mm x 14 mm (Length/Depth x Height x Width)
- Weight : 0.04945
