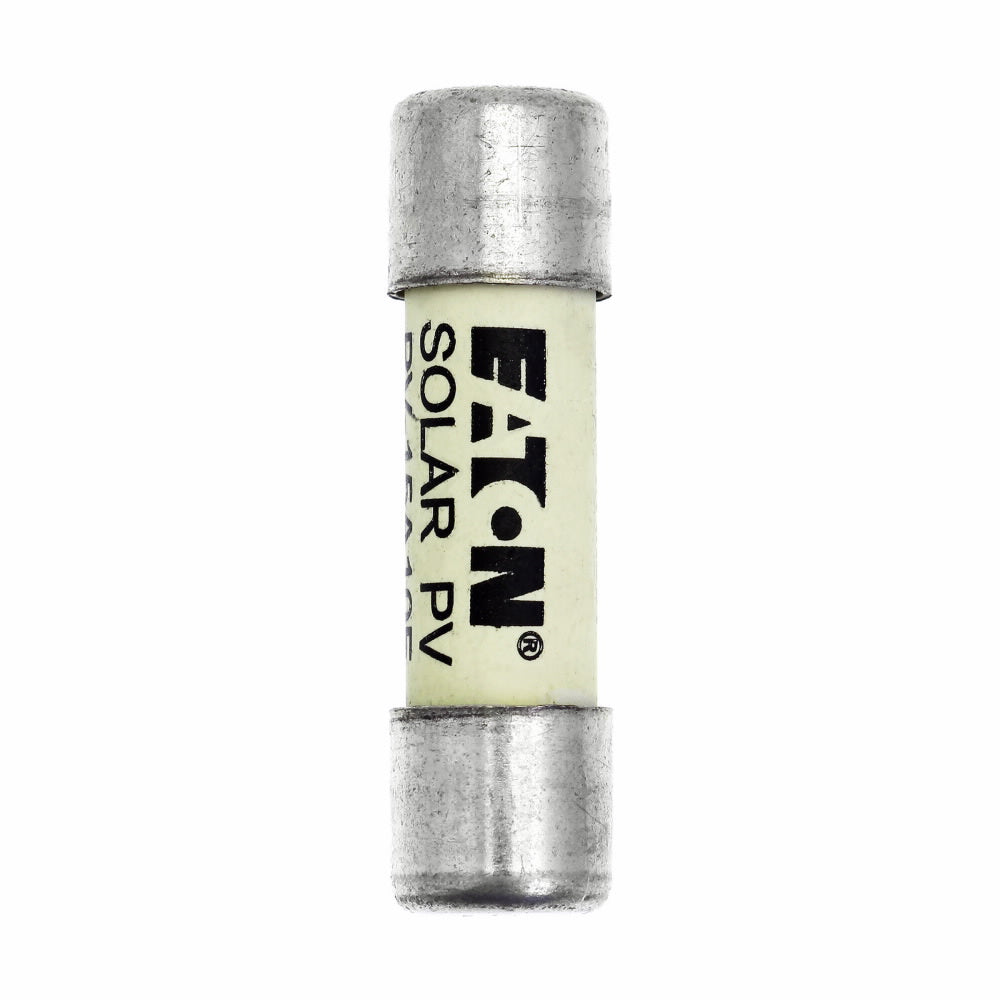

PV-15A10F - Eaton 15A 1000Vdc Photovoltaic Fuse 10x38mm 50kAIC Class gPV

PV-15A10F

PV-15A10F is a 15 amp, 1000 Vdc photovoltaic fuse from Eaton's Bussmann series designed for solar power system protection.PV-15A10F features a 10 x 38 mm ceramic body with a 50 kA interrupting rating and complies with IEC 60269-6 type A and Class gPV standards. It is non-indicating with a fast time constant of 1-3 ms and suitable for use in combiner boxes, inverters, and PV wire harnesses.

Key Specifications
• Amperage: 15 A
• Voltage Rating: 1000 Vdc
• Interrupting Rating: 50 kAIC
• Fuse Size: 10 x 38 mm
• Fuse Type: Photovoltaic (PV) Fuse
• Material: Ceramic Body
• Class: gPV, IEC 60269-6 type A
• Time Constant: 1-3 ms
• Mounting Type: Ferrule end x ferrule end
• Certifications: UL Listed, CSA Certified, CE Marked, RoHS Compliant, CCC Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PV-15A10F
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : PV Series
• Type : PV
• Voltage : 1000
• Amperage : 15
• AIC rating : 50kA@1000Vdc
• Connection : Ferrule
• Diameter : 0.01
• Barrels : 1

Product Data

• UPC : 051712204040
• GTIN : 00051712204040
• Country of Origin : India
• Dimensions : 38 mm x 10 mm x 10 mm (Length/Depth x Height x Width)
• Weight : 0.023
• Certification : CCC (1-15A), CSA, IEC 60269-6, UL 2579 (File number E335324)
