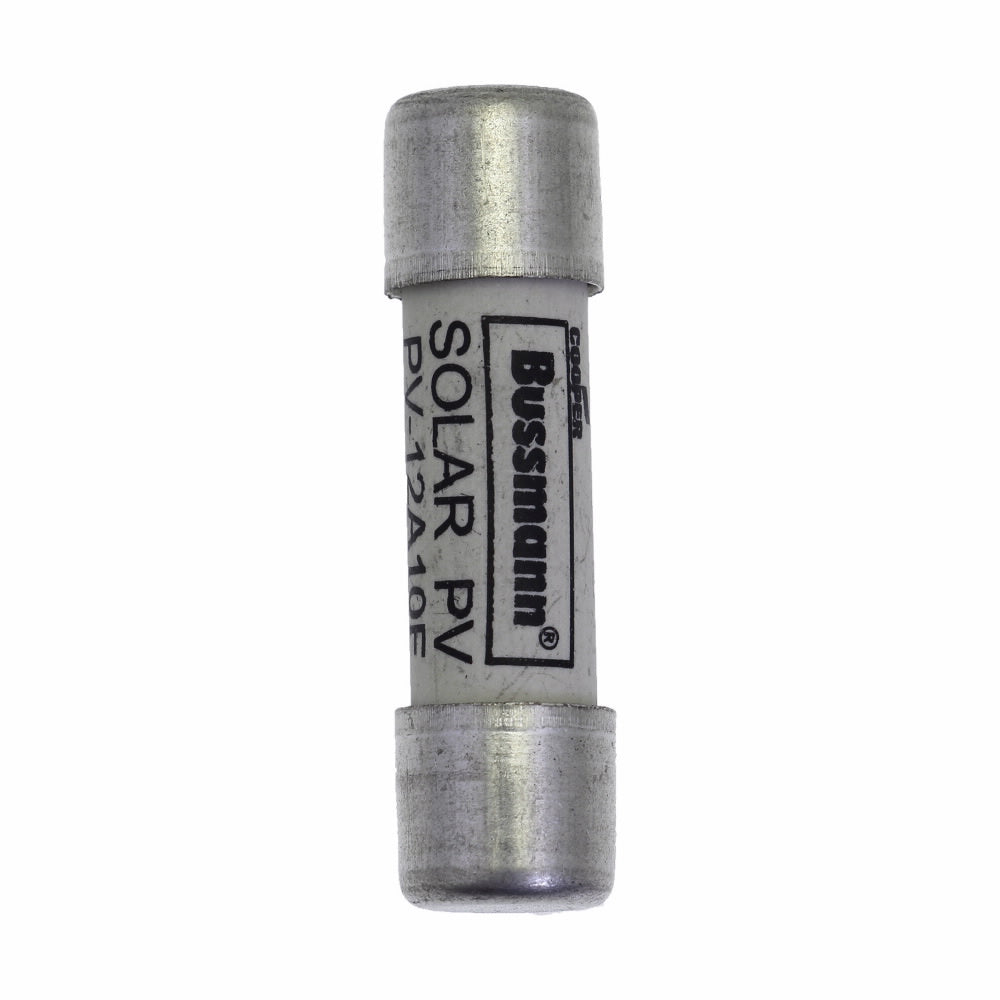

PV-12A10F - Eaton 12A 1000V DC Solar Ferrule Fuse 10x38mm 50kAIC Class gPV

PV-12A10F

PV-12A10F is a 12 amp, 1000V DC solar ferrule fuse designed for photovoltaic system protection.PV-12A10F from Eaton's Bussmann series features a 10 x 38mm ceramic body and is rated for a 50 kA interrupt capacity. It complies with IEC 60269-6 type A and Class gPV standards, ensuring reliable and safe isolation in solar power applications. This fuse is non-indicating and has a fast time constant of 1-3 milliseconds.

• Amperage Rating: 12 A
• Voltage Rating: 1000 V DC
• Interrupt Rating: 50 kAIC
• Fuse Size: 10 x 38 mm
• Body Material: Ceramic
• Fuse Type: Solar Ferrule
• Standards: IEC 60269-6 type A, Class gPV
• Time Constant: 1-3 ms
• Non-Indicating

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PV-12A10F
• Manufacturer : Eaton
• Brand : Bussmann
• Category : Fuse
• Item Subcategory : Medium Voltage Fuse
• Family : PV Series
• Type : PV
• Voltage : 1000
• Amperage : 12
• AIC rating : 50kA@1000Vdc
• Connection : Ferrule
• Diameter : 0.01
• Barrels : 1

Product Data

• UPC : 051712204033
• GTIN : 00051712204033
• Country of Origin : India
• Dimensions : 38 mm x 10 mm x 10 mm (Length/Depth x Height x Width)
• Weight : 0.023
• Certification : CCC (1-15A), CSA, IEC 60269-6, UL 2579 (File number E335324)
