Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description
PTQ46120GH

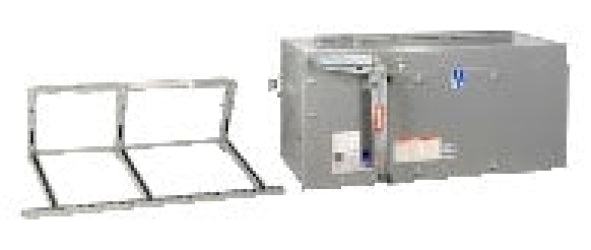

PTQ46120GH is a 1200A, 600V fusible bus plug from the Square D I-Line series, designed for 3-phase 4-wire applications with a 4-pole configuration and horizontal bolt-on mounting.This fusible bus plug provides reliable circuit protection for industrial and commercial power distribution systems. It features a 4-pole design with 3 fuse + ground, suitable for use with Class H fuses, and is rated for up to 1200A at 600VAC. The unit is designed for horizontal bolt-on connection to I-Line busway systems, offering flexibility and ease of installation in demanding environments.
- Part Number: PTQ46120GH
- Manufacturer: Square D
- Amperage: 1200A
- Voltage: 600VAC max
- Poles: 4
- Mounting Type: Horizontal bolt-on
- Series/Frame: I-Line, PTQ
- Interrupt Rating: 200kA
- Fuse Type: Class H
- Phase: 3
- Wire: 4
- Certifications: UL Listed, CSA Certified
Specifications
- Part Number: PTQ46120GH
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PTQ
- Voltage : 600
- Amperage : 1200
- Phase : 3
- AIC rating : 200kA@480V
- Fuse Class : L
- Wire : 4
Product Data
- UPC : 785901174448
- GTIN : 00785901174448
- Country of Origin : United States
- Dimensions : Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 447.001
- Certification : UL - CSA
