PTMH36350GNV - Schneider Electric Busway I-Line Circuit Breaker Plug-In 350A M-Frame 25kA 600V 4-Wire Vertical

PTMH36350GNV

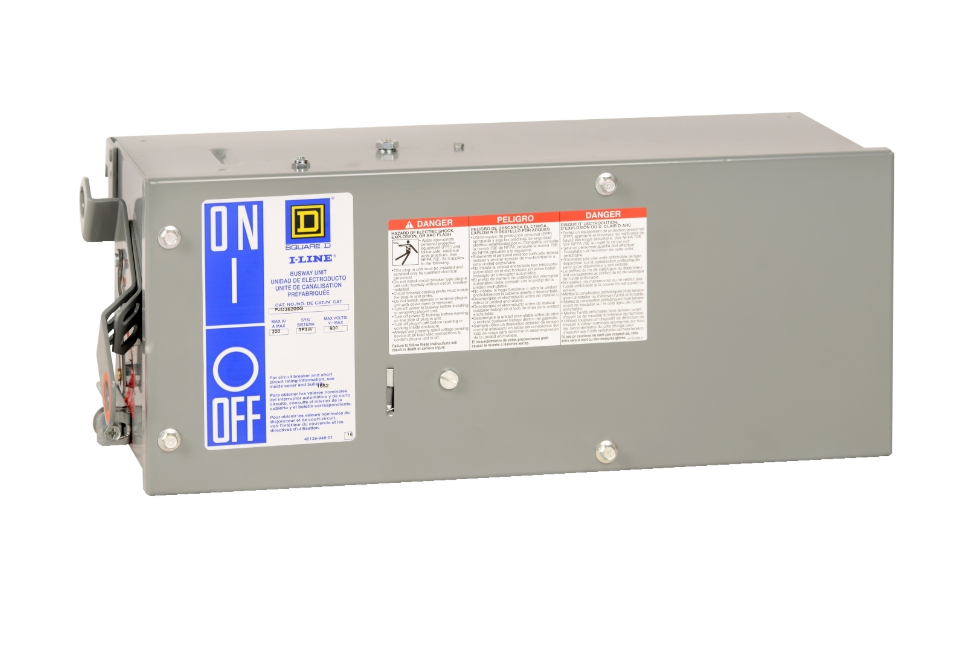

PTMH36350GNV is a Busway I-Line circuit breaker plug-in unit designed for industrial power distribution applications requiring high-capacity branch circuit protection. This M-frame unit delivers 350 amperes at rated operational voltage with vertical mounting orientation and integral ground bus configuration. PTMH36350GNV features a 25kA interrupt rating at 600V AC, 65kA at 480V AC, and 100kA at 240V AC, making it suitable for demanding commercial and industrial installations. The unit supports 4-wire configuration with integral ground bus and accommodates conductor sizes from AWG 3/0 to 500 kcmil for 3-phase and neutral, and AWG 6 to 300 kcmil for ground connections. Rated service short-circuit breaking capacity is 80 percent.

• Amperage: 350A
• Voltage: 600V AC (permissible), 277/480V AC (rated operational)
• Poles: 3-phase, 4-wire with integral ground bus
• Frame: M-Frame
• Mounting: Vertical plug-in connector type
• Interrupt Rating: 100kA at 240V AC, 65kA at 480V AC, 25kA at 600V AC
• Rated Service Short-Circuit Breaking Capacity: 80 percent
• Conductor Range: AWG 3/0 to 500 kcmil (phase and neutral), AWG 6 to 300 kcmil (ground)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PTMH36350GNV
• Manufacturer : Schneider Electric
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : I-Line
• Type : PTMH
• Voltage : 600
• Amperage : 350
• Phase : 3
• AIC rating : 65kA@480V
• Wire : 4

Product Data

• Weight : 225
