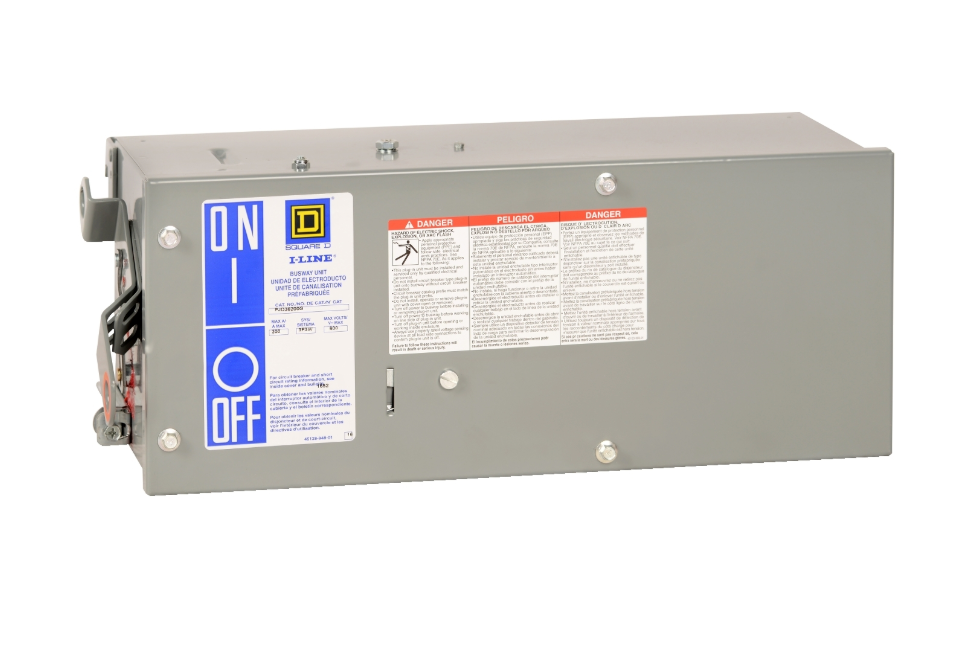

PTMH36300GNH - Schneider Electric 300A 600V 4-Pole M-Frame Bus Plug Horizontal

PTMH36300GNH

PTMH36300GNH is a Schneider Electric bus plug designed for 300 Amp, 600 Volt applications with a 4-pole M-frame breaker in a horizontal mounting configuration.This busway I-Line circuit breaker plug-in unit supports 3-phase, 4-wire systems with an integral ground bus. It features a thermal magnetic trip unit and an interrupt rating of 25 kA at 600 V AC, 65 kA at 480 V AC, and 100 kA at 240 V AC. The unit accommodates conductor sizes from AWG 3/0 to 500 kcmil for phases and neutral, and AWG 6 to 300 kcmil for the ground. The PTMH36300GNH is designed for reliable power distribution in industrial and commercial busway systems.

Key Specifications
• Amperage: 300 A
• Voltage: 600 V AC
• Poles: 4 (3 phase + neutral)
• Mounting Type: Horizontal
• Frame: M-Frame
• Interrupt Rating: 25 kA at 600 V AC, 65 kA at 480 V AC, 100 kA at 240 V AC
• Trip Unit: Thermal Magnetic
• Conductor Range: AWG 3/0 to 500 kcmil (phase and neutral), AWG 6 to 300 kcmil (ground)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: PTMH36300GNH
• Manufacturer : Schneider Electric
• Category : Bus Plug
• Item Subcategory : Breaker Type
• Family : I-Line
• Type : PTMH
• Voltage : 600
• Amperage : 300
• Phase : 3
• AIC rating : 65kA@480V
• Wire : 4



Product Data

• Weight : 225
