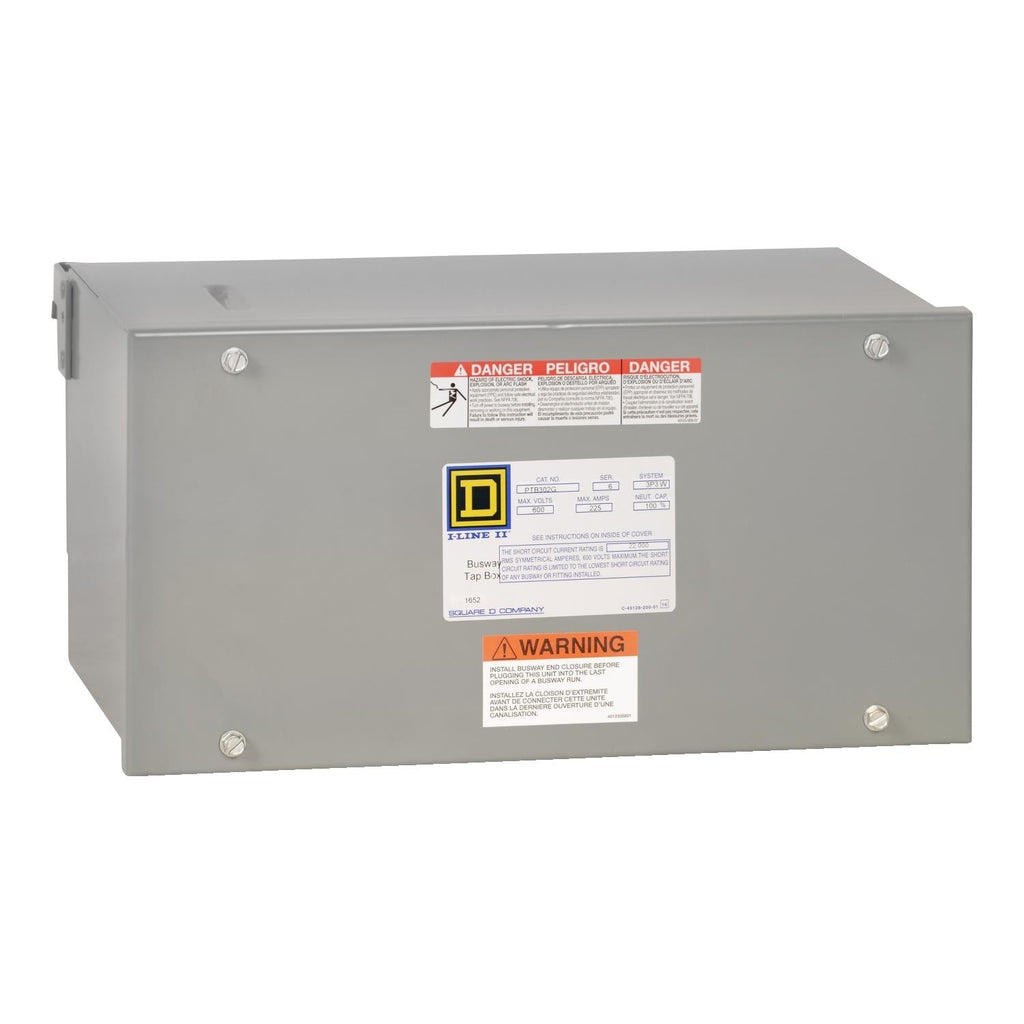

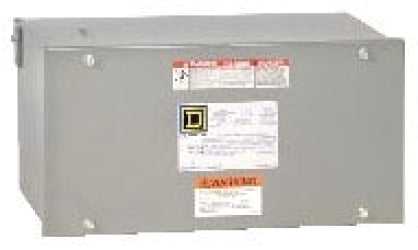

PTB502G - Square D 225 Amp 4-Pole 3-Phase 4-Wire I-Line Busway Plug-In Tap Box

PTB502G

PTB502G is a Square D I-Line busway plug-in tap box designed for three-phase, four-wire power distribution systems. This fusible plug-in unit integrates seamlessly with I-Line busway infrastructure, providing reliable connection and distribution in commercial and industrial applications. The tap box features a compact aluminum construction with integral ground bus, ensuring safe and efficient power delivery to connected equipment. Key Specifications

• Amperage: 225 Amps
• Voltage: 347/600 Volt (480Y/277V)
• Poles: 4
• Phase: 3-Phase
• Wiring: 4-Wire with Integral Ground Bus
• Series: I-Line I & II
• Mounting: Plug-In
• Material: Aluminum
• Height: 8.5 inches
• Width: 16.38 inches
• Depth: 7.76 inches
• Certifications: UL Listed (File E22182), CSA C22.2 No. 27, UL 857
• Country of Origin: United States
• Warranty: 18 months

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PTB502G
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PBTB
• Voltage : 480
• Amperage : 225
• Phase : 3
• Wire : 4

Product Data

• UPC : 785901087410
• GTIN : 00785901087410
• Country of Origin : United States
• Dimensions : 8.5 in (216 mm) x 16.4 in (416 mm) x 7.8 in (197 mm) (Height x Width x Depth)
• Weight : 18.781
• Certification : UL, CSA
