Description
PQ4240GR

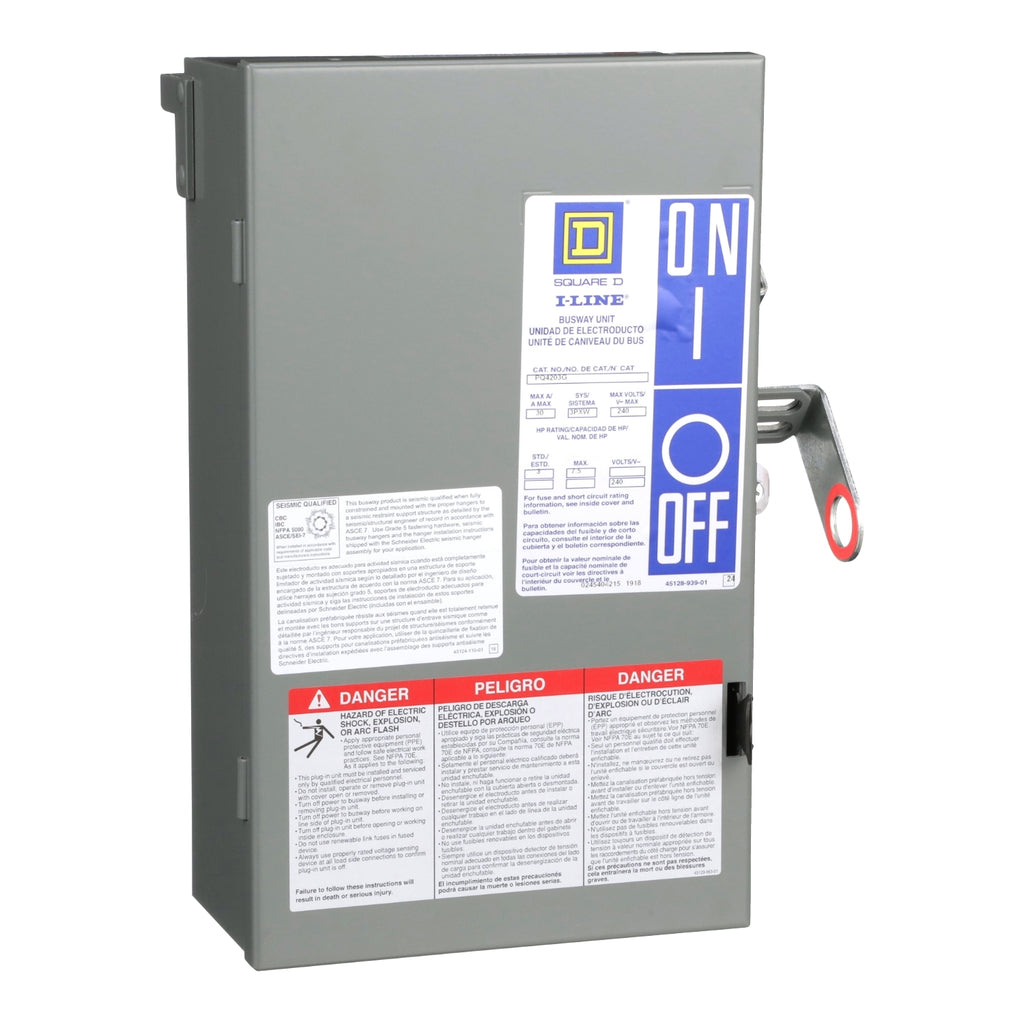

PQ4240GR is a 3-phase 4-wire fusible bus plug rated for 400 Amps at 240 Volts, designed for use with Square D I-Line busway systems. This plug-in fusible disconnect unit provides reliable overcurrent protection and is ideal for commercial and industrial power distribution applications requiring high-amperage switching and isolation capabilities. Key Specifications
- Amperage: 400A
- Voltage: 240V
- Poles: 4
- Phase: 3-Phase
- Wire Configuration: 4-Wire with Ground
- Connection Type: Plug-In
- Fusible: Yes
- Series: I-Line
- Certifications: UL, CSA
- NEMA Rating: 1
Specifications
- Part Number: PQ4240GR
- Manufacturer : Square D
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 240
- Amperage : 400
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H,K,R
- Wire : 4
Product Data
- Weight : 150
