Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description
PQ4220G

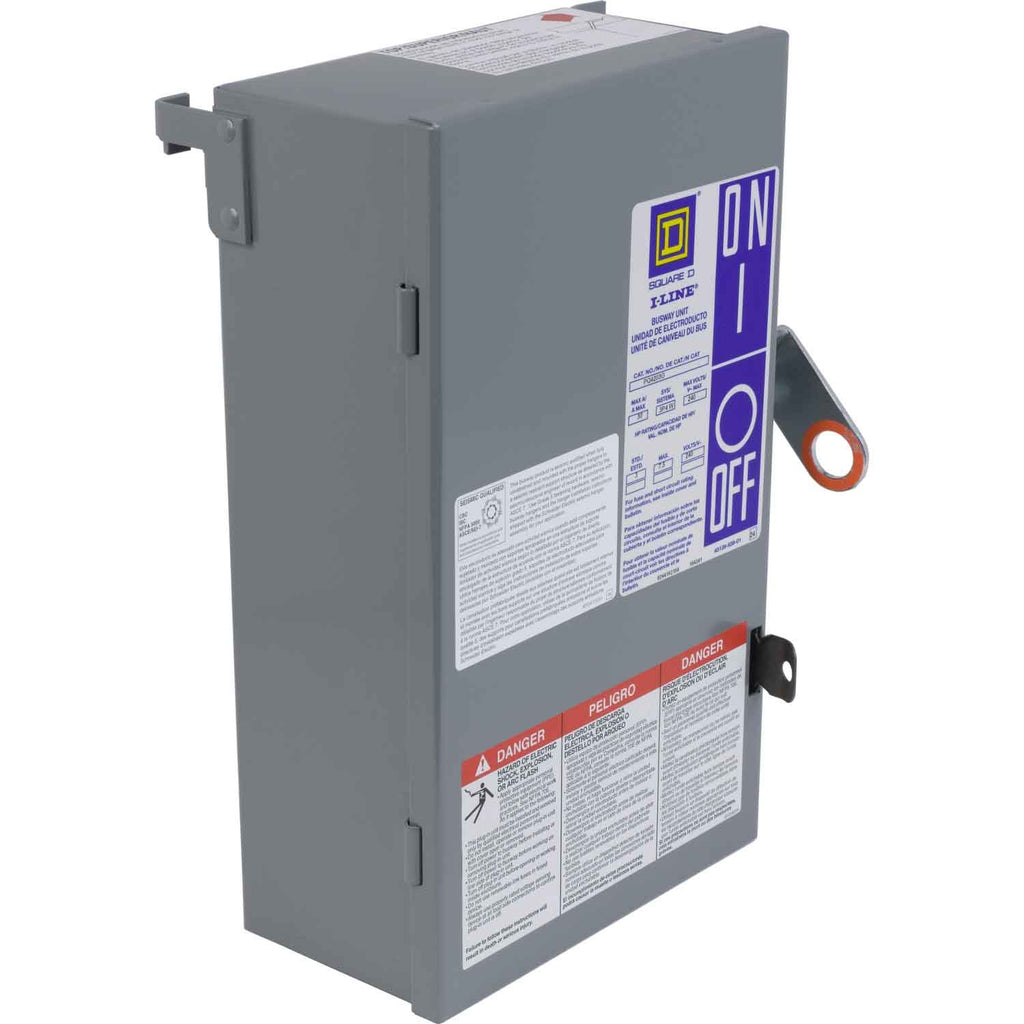

PQ4220G is a Square D fusible bus plug designed for use with I-Line busway systems, rated at 200 amps and 120/208/240 volts AC.
This 4-pole bus plug features a fusible design with integral ground bus, suitable for 3-phase, 4-wire applications. It accepts Class H fuses and is compatible with I-Line aluminum and copper busway. The unit provides reliable overcurrent protection and quick plug-in installation with mounting hook alignment. It is designed for use in commercial and industrial power distribution systems requiring a fusible plug-in unit.
- Amperage: 200A
- Voltage: 120/208/240 VAC
- Poles: 4
- Phase: 3-phase
- Wires: 4-wire with integral ground bus
- Fuse Class: Class H (also accepts K and R fuses)
- Series/Frame: I-Line
- Mounting Type: Plug-in unit with mounting hook alignment
- Interrupt Rating: 200kA at 240V
- Application: Busway fusible plug-in unit
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: PQ4220G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 120/208/240 AC
- Amperage : 200
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H, K, J, R
- Wire : 4
Product Data
- UPC : 785901017356
- GTIN : 00785901017356
- Country of Origin : Mexico
- Dimensions : 22-1/2 in x 16-13/64 in
- Weight : 70.601
- Certification : CSA Certified, UL Listed
