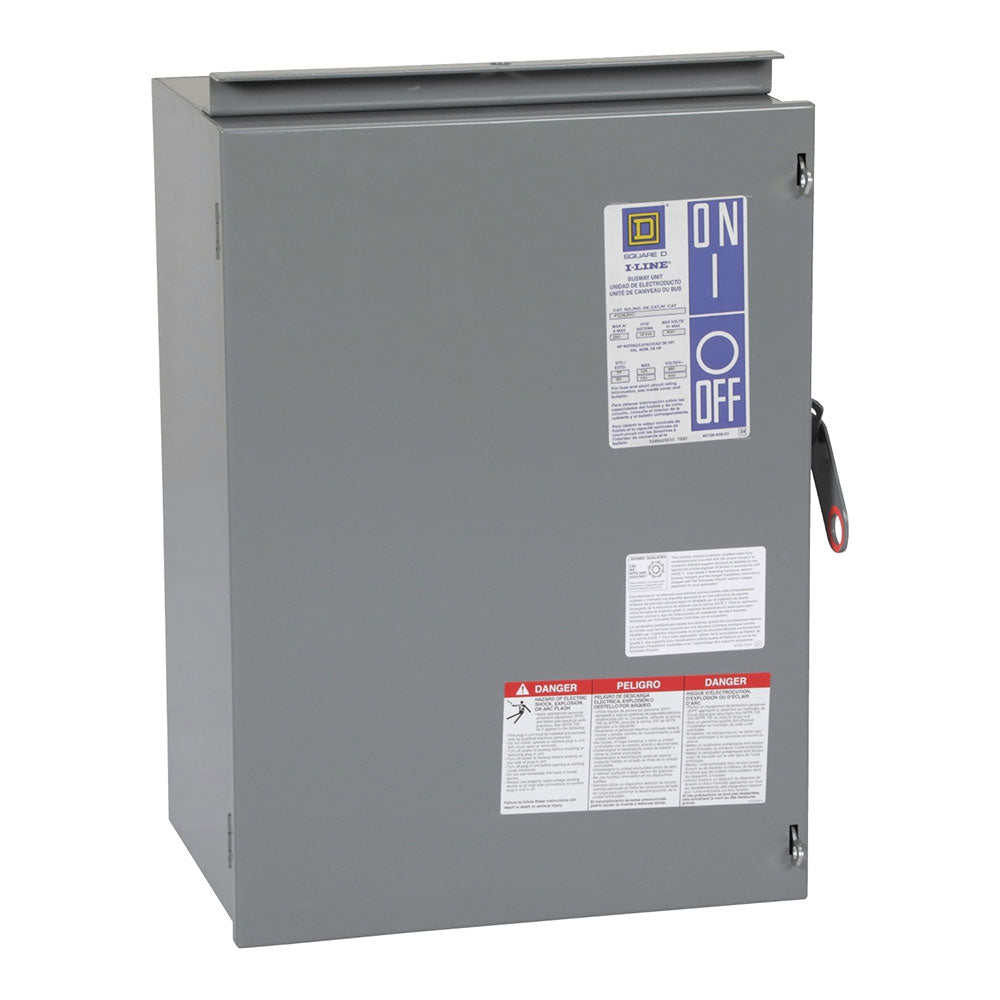

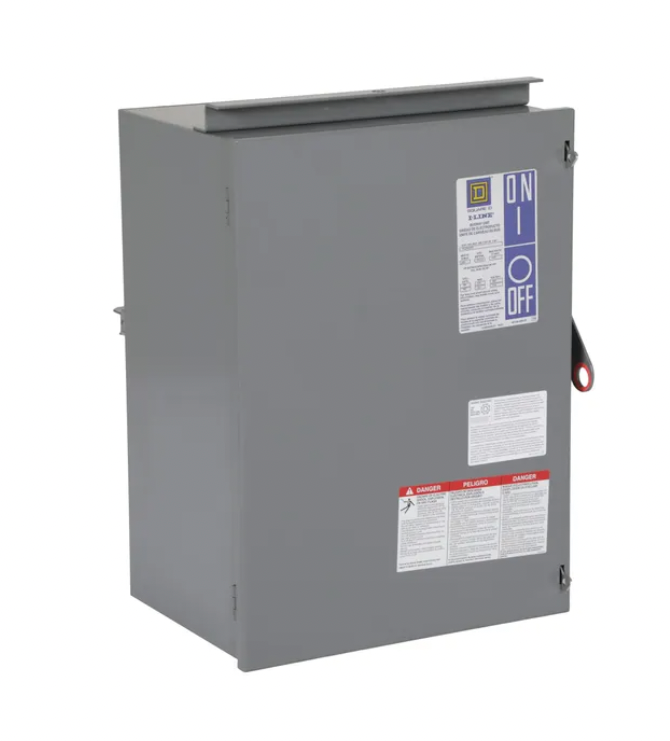

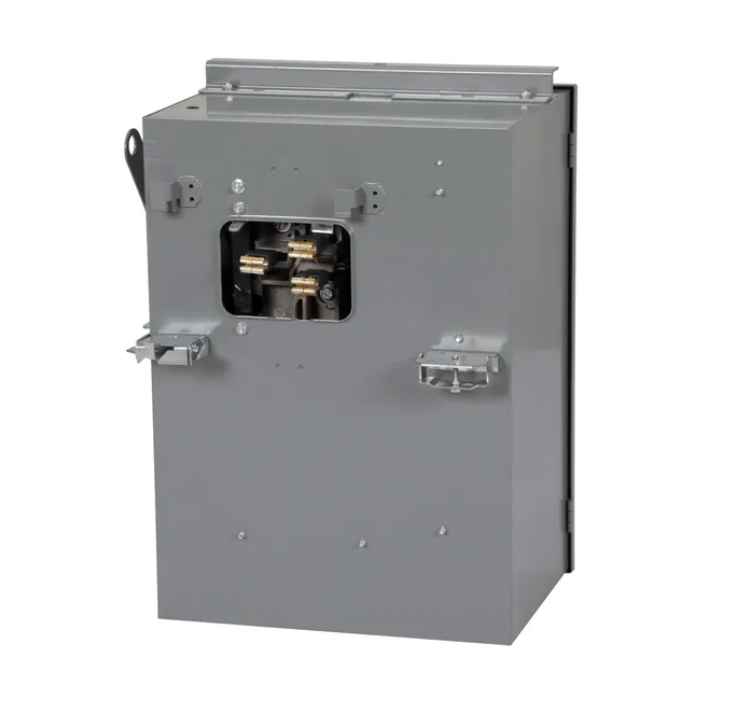

PQ3620G - Square D 200A 600V 3-Pole Fusible Bus Plug I-Line Series

PQ3620G

PQ3620G is a Square D 200 amp, 600 volt, 3-pole fusible bus plug designed for use with I-Line bus duct systems.This plug-in unit features a 3-wire design with ground, mechanical lugs, and is rated for 200 amps continuous current with a 600 VAC voltage rating. It uses R-class fuses for overcurrent protection and is UL Listed and CSA Certified. The PQ3620G is compatible with Square D I-Line I and I-Line II busway systems and provides reliable circuit protection in industrial power distribution.

• Amperage: 200A
• Voltage: 600V AC
• Poles: 3
• Wire: 3-wire plus ground
• Fuse Type: Fusible, R-class fuses standard
• Mounting: Plug-in connection for I-Line bus duct
• Series: I-Line
• Interrupt Rating: Suitable for busway applications
• Certifications: UL Listed, CSA Certified
• Mechanical lugs standard
• Compatible with I-Line I and I-Line II bus duct

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PQ3620G
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Bus Plug
• Item Subcategory : Fusible
• Family : I-Line
• Type : PQ
• Voltage : 600 AC
• Amperage : 200
• Phase : 3
• AIC rating : 200kA@480V
• Fuse Class : H, K, J, R
• Wire : 3

Product Data

• UPC : 785901263937
• GTIN : 00785901263937
• Country of Origin : Mexico
• Dimensions : 22-1/2 in x 16-13/64 in
• Weight : 68.961 lb
• Certification : CSA Certified, UL Listed
