Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Fusible
Description

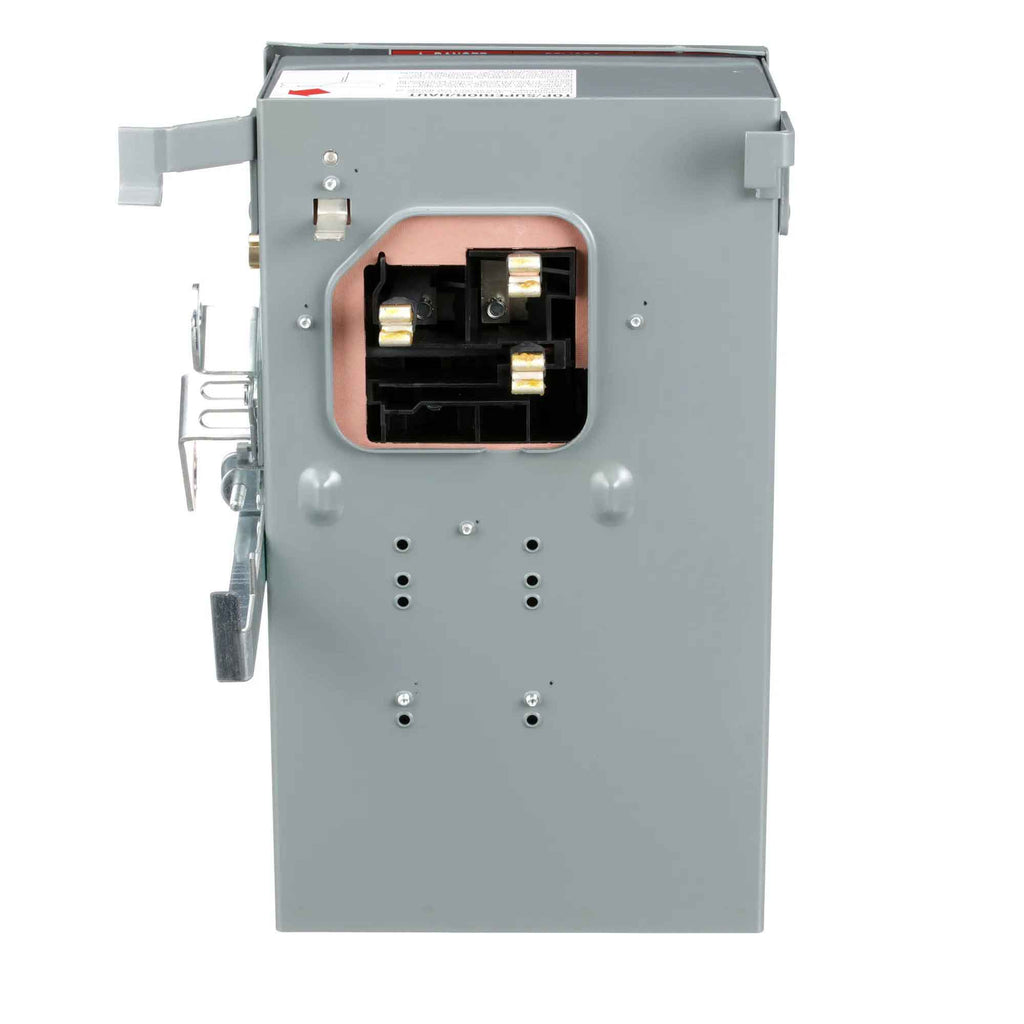

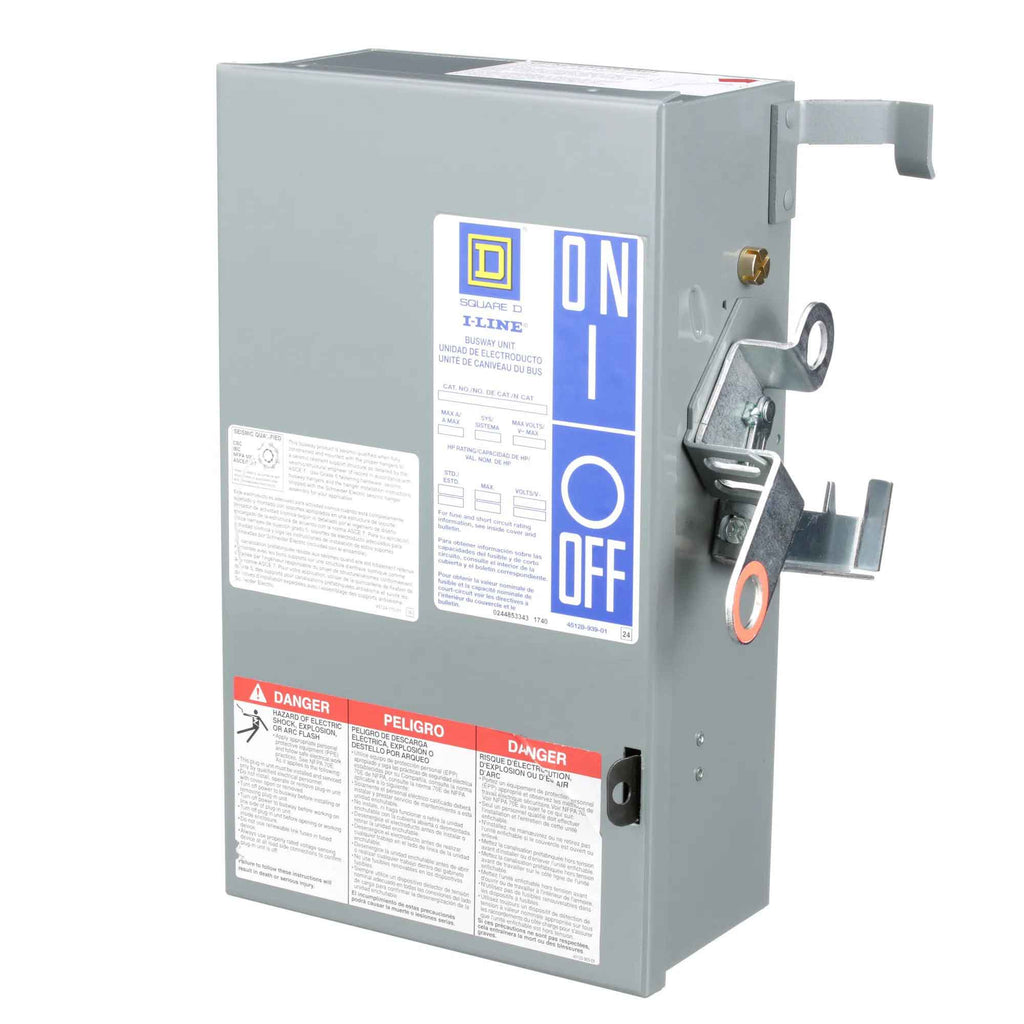

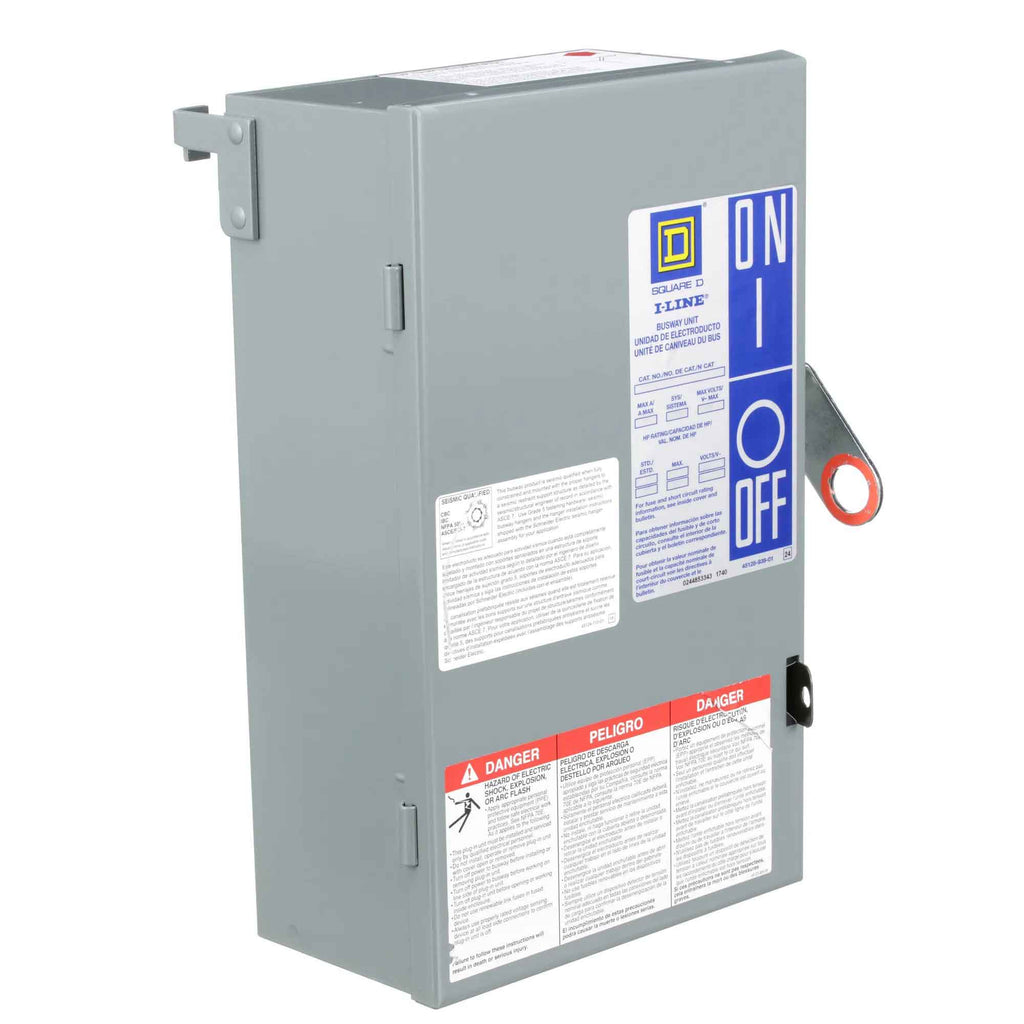

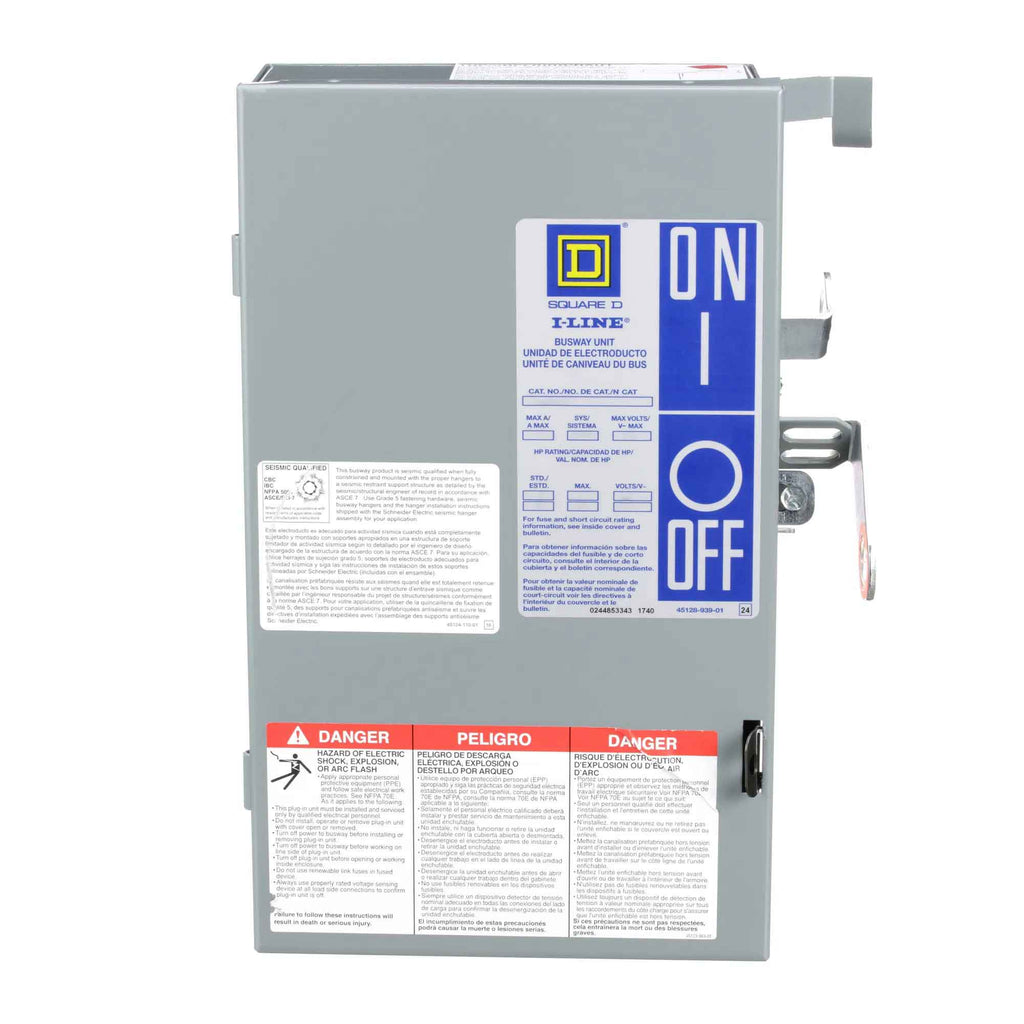

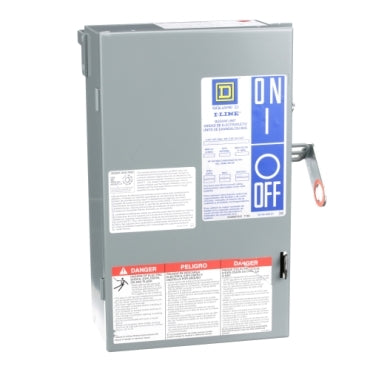

PQ3206G
PQ3206G is a 60 Amp, 240 Volt, 3 Pole fusible bus plug designed for Square D I-Line busway systems.This bus plug features a plug-in connection type compatible with I-Line I and II aluminum and copper bus duct. It includes R-class fuse protection with mechanical lugs standard, providing reliable overcurrent protection. The PQ3206G is suitable for use with Class H, K, and R fuses and is UL 857 and CSA C22.2 certified.
- Manufacturer: Square D
- Series: PQ
- Amperage: 60 Amps
- Voltage: 240 Volts AC
- Poles: 3 Pole
- Fusibility: Fusible with R-class fuse protection
- Connection Type: Plug-in
- Compatible Busway: I-Line I and II
- Fuse Classes Accepted: H, K, R
- Certifications: UL 857, CSA C22.2
- Grounding: Ground tab included
Specifications
- Part Number: PQ3206G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Fusible
- Family : I-Line
- Type : PQ
- Voltage : 240 AC
- Amperage : 60
- Phase : 3
- AIC rating : 200kA@240V
- Fuse Class : H, K, J, R
- Wire : 3
Product Data
- UPC : 785901263951
- GTIN : 00785901263951
- Country of Origin : Mexico
- Dimensions : 15 in x 8-7/8 in
- Weight : 13.501
- Certification : CSA Certified, UL Listed
