PLLA4N-UNV1-S903-P-M2 - Eaton Lighting and controls LED Fixture 8000 lm

PLLA4N-UNV1-S903-P-M2

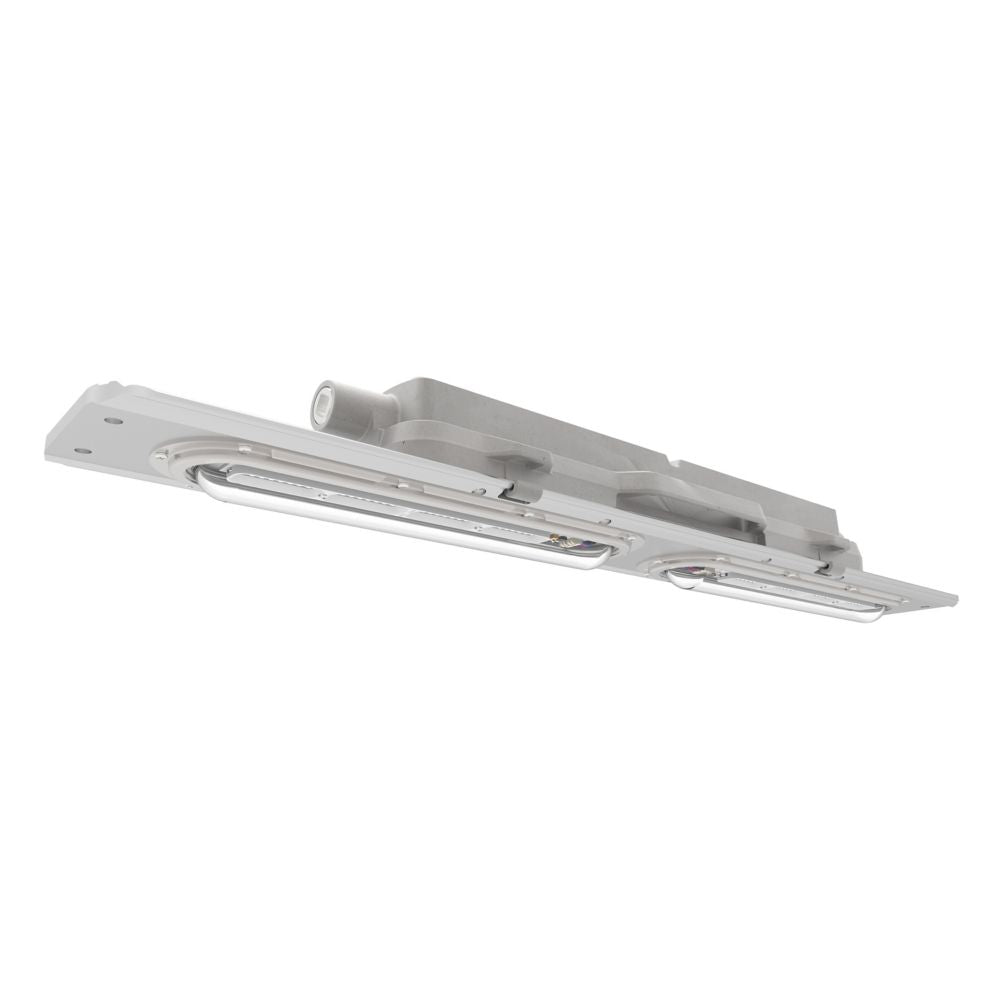

PLLA4N-UNV1-S903-P-M2 is an Eaton Crouse-Hinds series Champ Pro PLLA linear LED light fixture designed for ordinary and non-hazardous locations. This 4-foot fixture delivers 8000 lumens with cool white color temperature and features a polycarbonate lens with narrow optical distribution. The unit is constructed from copper-free aluminum with a painted gray epoxy finish and includes 3/4-inch entries for flexible installation. It operates at 120-277 Vac or 127/250 Vdc with 50/60 Hz frequency rating and consumes 59 watts at a power factor greater than 0.94. The fixture meets NEMA 4X rating and IP66/IP67 ingress protection standards, making it suitable for wet and corrosive environments. Key Specifications

• Part Number: PLLA4N-UNV1-S903-P-M2
• Manufacturer: Eaton
• Lumens: 8000
• Lumens per Watt: 135
• Color Temperature: Cool white
• Wattage: 59 W
• Voltage Rating: 120-277 Vac, 127/250 Vdc
• Frequency: 50/60 Hz
• Mounting Method: Flush ceiling
• Optical Distribution: Narrow
• NEMA Rating: 4X
• IP Rating: IP66 IP67
• Lens Material: Polycarbonate
• Material: Copper-free aluminum
• Finish: Painted gray epoxy
• Entry Size: 3/4 in
• Lamp Length: 4 ft
• Power Factor: >0.94

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PLLA4N-UNV1-S903-P-M2
• Manufacturer : Eaton
• Brand : Eaton
• Category : Lighting and controls
• Item Subcategory : Linear
• Voltage : 120-277 V, 127-250 V
• Nema Rating : 4X
• Watts : 59
• Hz : 50/60
• Protection : IP66 IP67
• Material : Copper-free aluminum
• Ingress protection (IP) ratings : IP66 IP67
• Lumens : 8000
• Lumens per watt : 135
• Color temperature : Cool white
• Mounting Method : Flush ceiling
• Power factor : >0.94
• Trade size : 3/4 in

Product Data

• UPC : 786689779948
• Dimensions : 39 in x 4.42 in x 7.13 in (Length/Depth x Height x Width)
• Weight : 23.5 lb
