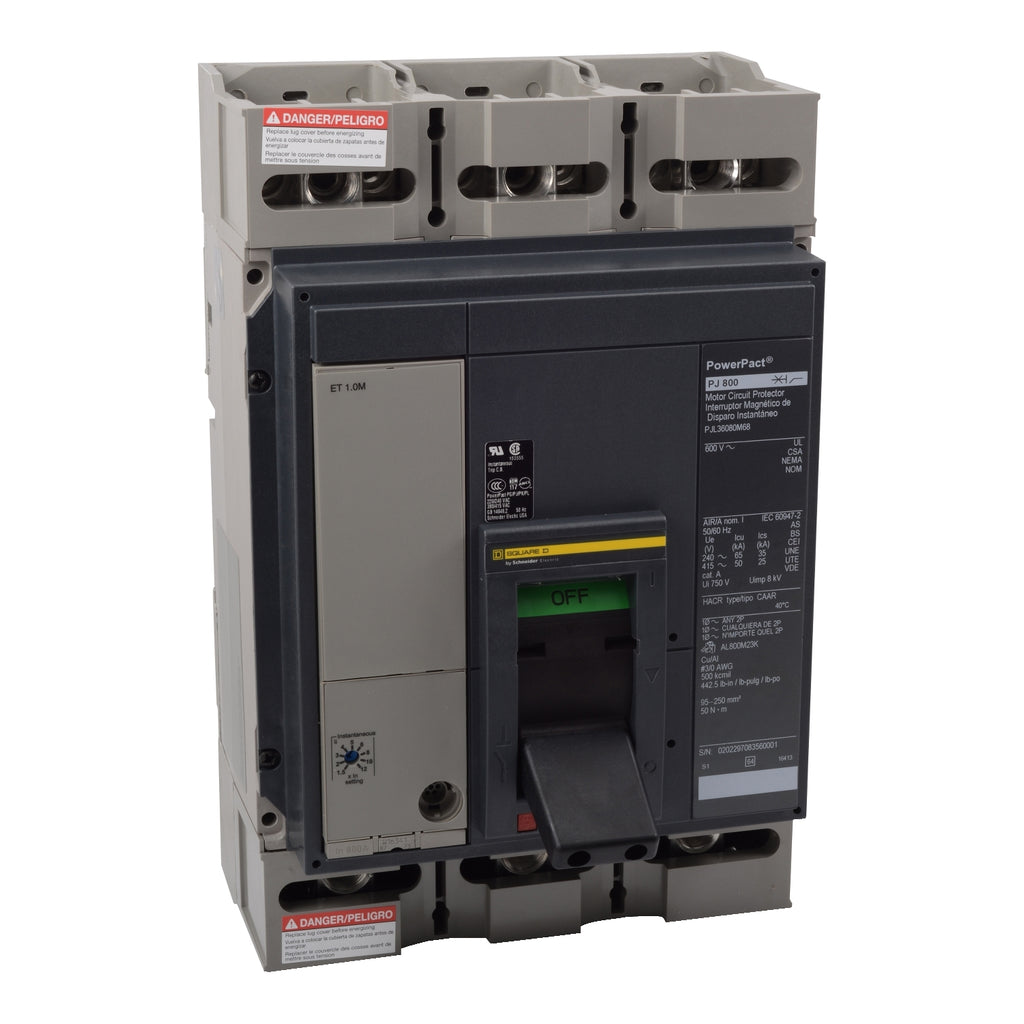

PJL36120U64AE1 - Schneider Electric (Square D) 3-Pole 120 A 600 V AC Lug-Lug Circuit Breaker, PowerPact PJL

PJL36120U64AE1

PJL36120U64AE1 is a PowerPact P-frame molded case circuit breaker from Schneider Electric (Square D), rated 120 A, 3 poles, 600 V AC. It provides electronic protection with Micrologic 6.0E LSIG with energy metering (E1 option). Line and load terminations use mechanical lugs (lug-lug) for straightforward panelboard or switchboard integration.

• Family: PowerPact P-Frame, Type PJL (lug-lug)
• Poles: 3 poles
• Amperage: 120 A
• Voltage: 600 Vac
• Trip unit: Micrologic 6.0E LSIG with energy metering (E1 option)
• Certifications: UL 489 Listed, CSA Certified

Suffix meanings in this catalog number

• Factory configuration per suffix

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJL36120U64AE1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : Feed-Thru
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Protection : Solid State

Product Data

• UPC : 3.60649E+12
• Country of Origin : Mexico
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 39.45
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
