Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PJG36175GN

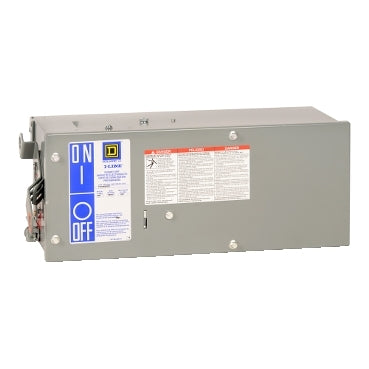

PJG36175GN is a Square D bus plug designed for 175 amp, 600 volt AC applications with a 3-phase, 4-wire configuration and J-frame circuit breaker.This bus plug features a J-frame circuit breaker with an 18kA interrupting rating, suitable for use in I-Line busway systems. It supports 3-phase, 4-wire power distribution at 600 volts AC and 175 amps, providing reliable protection and connection in industrial and commercial electrical setups.
- Manufacturer: Square D
- Part Number: PJG36175GN
- Amperage: 175 Amps
- Voltage: 600 VAC
- Phases: 3-Phase
- Wires: 4-Wire
- Frame: J-Frame Circuit Breaker
- Interrupt Rating: 18kA
- Mounting Type: Plug-in Unit
Specifications
- Part Number: PJG36175GN
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PJG
- Voltage : 600
- Amperage : 175
- Phase : 3
- AIC rating : 35kA@480V
- Fuse Class : J
- Wire : 4
- Compatible Frames : JGP
Product Data
- UPC : 606487115925
- GTIN : 03606490000000
- Dimensions : Height 8.50 in (216 mm) x Depth 3.09 in (78.49 mm) x Width 4.44 in (112.78 mm)
- Weight : 32
- Certification : UL listed file E22182 - CSA C22.2 No 27
