Description
PJD36250G

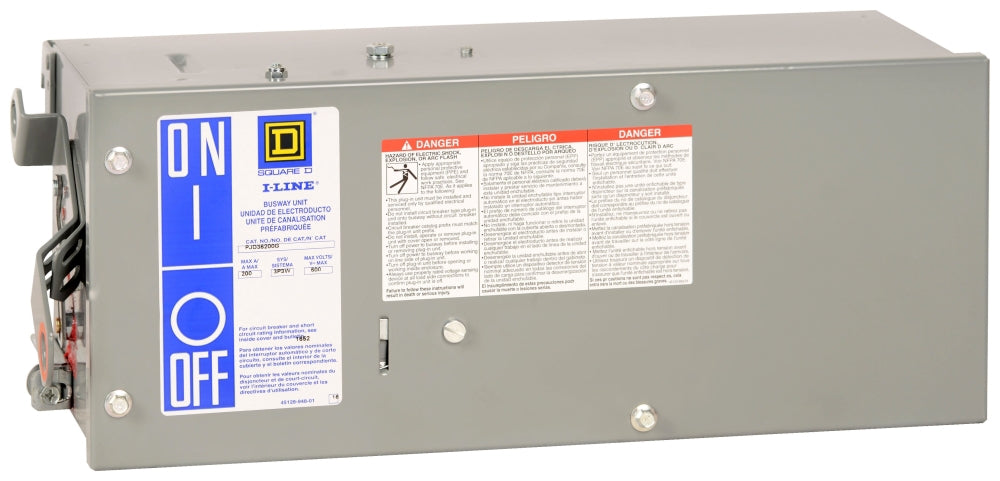

PJD36250G is a Square D I-Line bus plug rated for 250 amperes at 600 volts AC, designed for three-phase, three-wire with ground applications. This breaker-type plug-in unit features a JD frame configuration and is engineered for use with Square D I-Line II busway systems. The unit provides a 14 kA interrupting rating at 600V and operates at 50/60 Hz. Key Specifications
- Amperage: 250A
- Voltage: 600V AC
- Phase Configuration: 3 Phase, 3 Wire with Ground
- Breaker Type: JD Frame
- Interrupting Rating: 14 kA at 600V
- Mounting: Plug-in
- Enclosure Rating: NEMA 1
- Certifications: UL Listed, CSA Certified
- Height: 20-21/64 inches
- Width: 8-1/2 inches
- Depth: 8 inches
Specifications
- Part Number: PJD36250G
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PJD
- Voltage : 600
- Amperage : 250
- Phase : 3
- AIC rating : 18kA@480V
- Wire : 3
- Compatible Frames : JDP
Product Data
- UPC : 60648711591
- GTIN : 03606487115915
- Dimensions : Depth 18.33 in (465.58 mm) Width 34.19 in (868.43 mm) Height 70.05 in (1779.27 mm)
- Weight : 32
