PJA36120YP - Schneider Electric PowerPact P-Frame 3-Pole 1200A 600V Molded Case Circuit Breaker

SKU: PJA36120YP-New
Condition: New
Price:
Call For Price
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

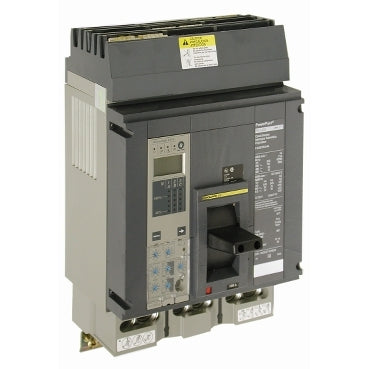

600V 1200A 3 Pole - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
600V 1200A 3 Pole - Essential Electric Supply

Description

PJA36120YP


PJA36120YP is a Schneider Electric PowerPact P-Frame molded case circuit breaker designed for reliable protection in demanding electrical environments. This 3-pole breaker features a 1200A current rating, 600V AC voltage rating, and an interrupting capacity of 25kA at 600V, making it suitable for main panel disconnect and industrial applications. The breaker utilizes an electronic trip unit with LI (Long-Time and Instantaneous) protection and is built with I-Line style plug-in mounting for easy installation and replacement. It is UL 489, CSA, and IEC listed for global compliance. The PJA36120YP is engineered for durability and safety, supporting a wide range of wire sizes and offering consistent performance in critical power distribution systems. Its compact design and standardized mounting facilitate integration into existing panels.
  • Part Number: PJA36120YP
  • Manufacturer: Schneider Electric
  • Series/Frame: PowerPact P-Frame
  • Poles: 3
  • Amperage: 1200A
  • Voltage: 600V AC
  • Interrupting Rating: 25kA at 600V
  • Mounting Type: I-Line Plug-In
  • Protection Type: Solid State Electronic (LI)
  • Trip Unit: ET 1.0I, Non-Interchangeable
  • Certifications: UL 489, CSA, IEC
  • Wire Size: 4 x AWG 3/0 to 500 kcmil (Al/Cu)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: PJA36120YP
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : PJA
  • Voltage : 600
  • Amperage : 1200
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LI - Long-Time and Instantaneous
  • Terminal Connection : AL800M23K
  • Frame Size : P Frame
  • Temp Rating : 13-158 °F (-25-70 °C)
  • Protection : Solid State

Product Data

  • UPC : 785901725749
  • GTIN : 00785901725749
  • Country of Origin : United States
  • Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Weight : 32
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
