PJA36120U64AE1 - Schneider Electric (Square D) 3-Pole 1200 A 600 V AC I-Line Circuit Breaker, PowerPact PJA

SKU: PJA36120U64AE1-New
Condition: New
Price:
$20,894.77
Stock:
Low inventory, please call for stock check

Same-Day Shipping

Most items ship same-day if ordered by 1:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

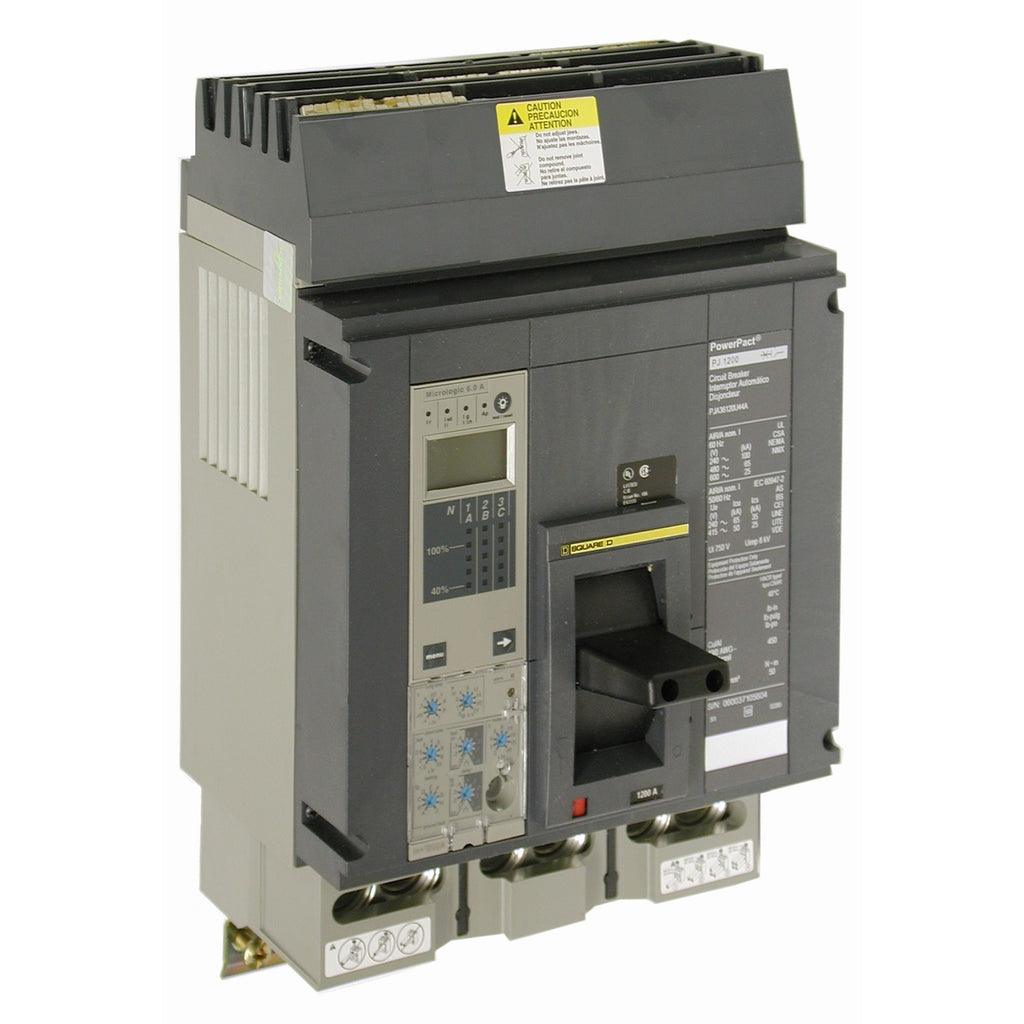

PJA36120U64AE1 - Square D I-Line Style Plug-In 600V 1200A 3 pole circuit breaker 65kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
PJA36120U64AE1 - Square D I-Line Style Plug-In 600V 1200A 3 pole circuit breaker 65kA@480V - Essential Electric Supply

Description

PJA36120U64AE1


PJA36120U64AE1 is a PowerPact P-frame molded case circuit breaker from Schneider Electric (Square D), rated 1200 A, 3 poles, and 600 V AC for I-Line applications. It provides electronic protection with Micrologic 6.0E LSIG with energy metering (E1). The breaker uses I-Line plug-on line terminations with mechanical load-side lugs for straightforward panelboard and switchboard integration.
  • Family: PowerPact P-Frame, Type PJA (I-Line)
  • Poles: 3 poles
  • Amperage: 1200 A
  • Voltage: 600 Vac
  • Trip unit: Micrologic 6.0E LSIG with energy metering (E1)
  • Certifications: UL 489 Listed, CSA Certified
Suffix meanings in this catalog number
  • Energy metering trip-unit option E1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: PJA36120U64AE1
  • Manufacturer : Schneider Electric
  • Brand : Square D
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : Powerpact
  • Type : PJA
  • Voltage : 600
  • Amperage : 1200
  • Phase : 3
  • Poles : 3
  • AIC rating : 65kA@480V
  • Connection : I-Line Style Plug-In
  • Functions : LSIG - Long Time, Short Time, Instantaneous and Ground Fault
  • Terminal Connection : AL800M23K
  • Frame Size : P Frame
  • Temp Rating : 13-158 °F (-25-70 °C)
  • Protection : Solid State

Product Data

  • UPC : 762179035831
  • GTIN : 03606486285473
  • Country of Origin : Mexico
  • Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
  • Weight : 32
  • Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
  • Certification : UL, CSA, NOM
  • Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
