Product Info
- Manufacturer:Square D
Description
PJA36120U63AE1LV

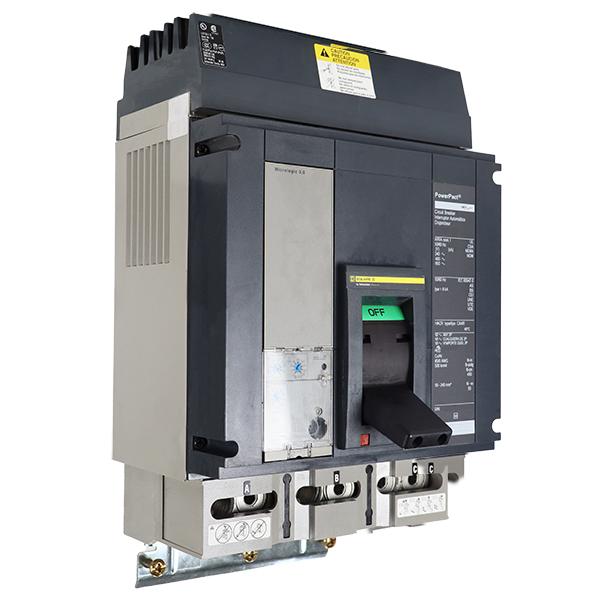

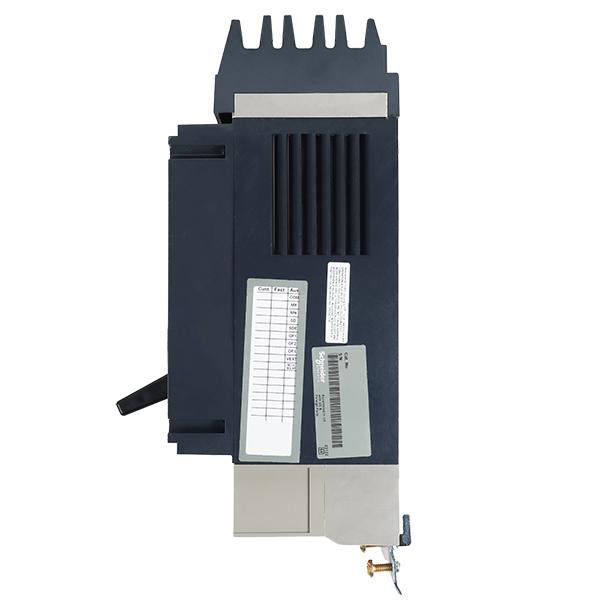

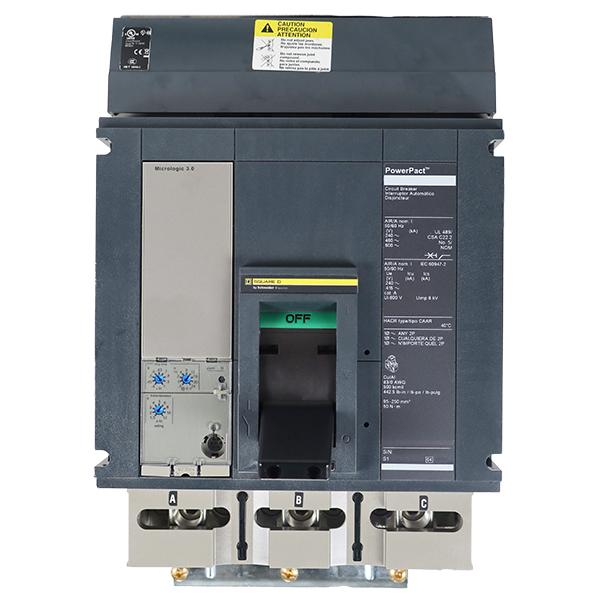

PJA36120U63AE1LV is a Square D molded case circuit breaker designed for high-capacity electrical protection.This 3-pole circuit breaker is rated for 1200 amps and 600 volts, featuring an I-Line frame and a 25kA interrupt rating at 600VAC. It includes a Micrologic 5.0P trip unit with LSI functions and supports Modbus communication. The breaker is UL 489 listed, CSA NMX, and IEC certified for worldwide applications, making it suitable as a main panel disconnect in control panels.
- Key Specifications
- Manufacturer: Square D by Schneider Electric
- Amperage: 1200A
- Voltage: 600V AC
- Poles: 3
- Interrupt Rating: 25kA @ 600VAC
- Frame/Series: I-Line
- Trip Unit: Micrologic 5.0P with LSI functions
- Certifications: UL 489, CSA NMX, IEC
- Mounting Type: Plug-In I-Line
- Communication: Modbus
- Part Number: PJA36120U63AE1LV
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Terminal Connection : AL800M23K
- Frame Size : P Frame
- Temp Rating : 13-158 °F (-25-70 °C)
- Wire : 3 x AWG 3/0...500 kcmil aluminium/copper
- Protection : Solid State
- UPC : 762179035794
- Country of Origin : United States
- Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
- Weight : 37
- Certification : CE, UL, CSA, NEMA, NOM, IEC, RoHS
