PJA36120CU43A - Schneider Electric PowerPact P 1200A 3 Pole 600V Molded Case Circuit Breaker I-Line Micrologic 5.0A 80% ABC

PJA36120CU43A

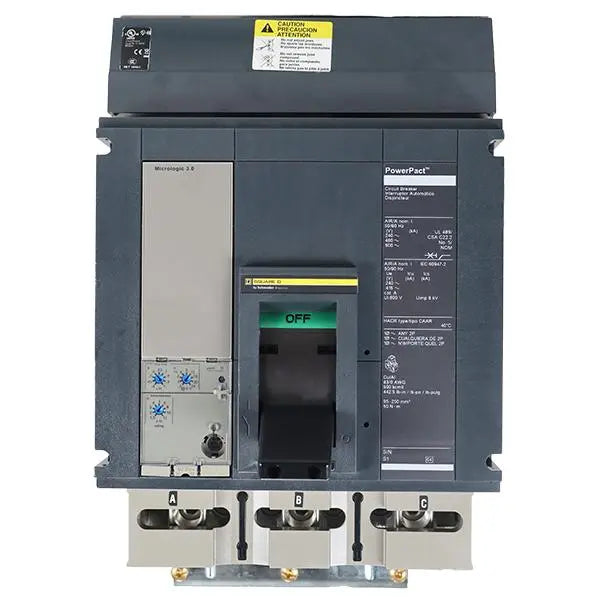

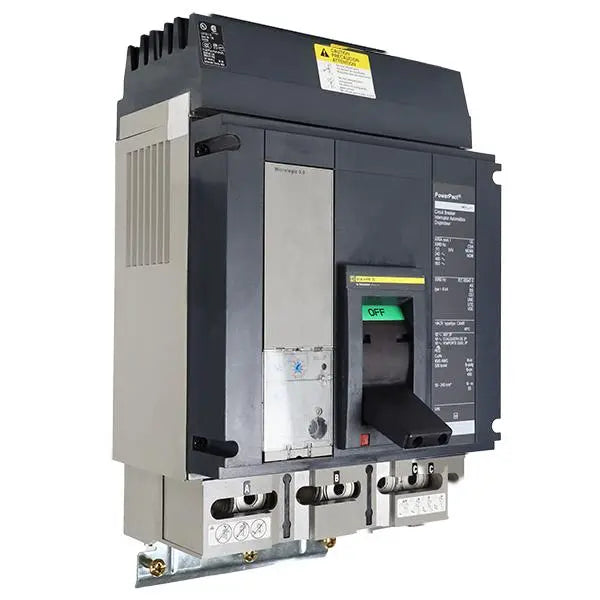

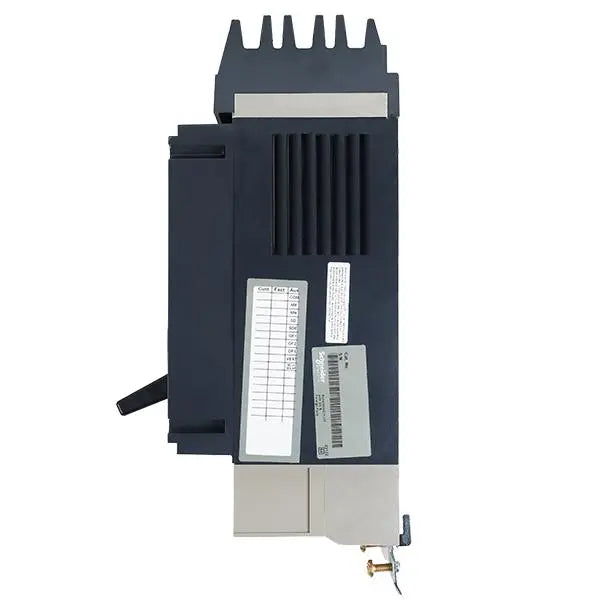

PJA36120CU43A is a Schneider Electric PowerPact P series molded case circuit breaker designed for high-performance power distribution applications. This 3-pole, 1200A circuit breaker features an I-Line plug-in mounting style and is rated for 600V AC. It includes a Micrologic 5.0A trip unit with LSI (Long-Time, Short-Time, Instantaneous) protection and an 80% continuous current rating. The breaker is suitable for use as a main panel disconnect and offers high interrupting capacity for demanding environments.

• Part Number: PJA36120CU43A
• Manufacturer: Schneider Electric
• Series/Frame: PowerPact P
• Amperage: 1200A
• Voltage: 600V AC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 25kA @ 600V AC, 65kA @ 480V AC, 100kA @ 240V AC
• Continuous Current Rating: 80%
• Phase Connection: ABC
• Trip Unit: Micrologic 5.0A
• Certifications: UL 489 Listed, CSA NMX, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJA36120CU43A
• Manufacturer : Schneider Electric
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJA
• Voltage : 600
• Amperage : 1200
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSI - Long-Time, Short-Time and Instantaneous
• Terminal Connection : AL800M23K
• Frame Size : P Frame
• Temp Rating : 13-158 °F (-25-70 °C)
• Protection : Solid State

Product Data

• UPC : 762179034490
• Country of Origin : United States
• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 37
• Certification : CE, UL, CSA, NEMA, NOM, IEC, RoHS
