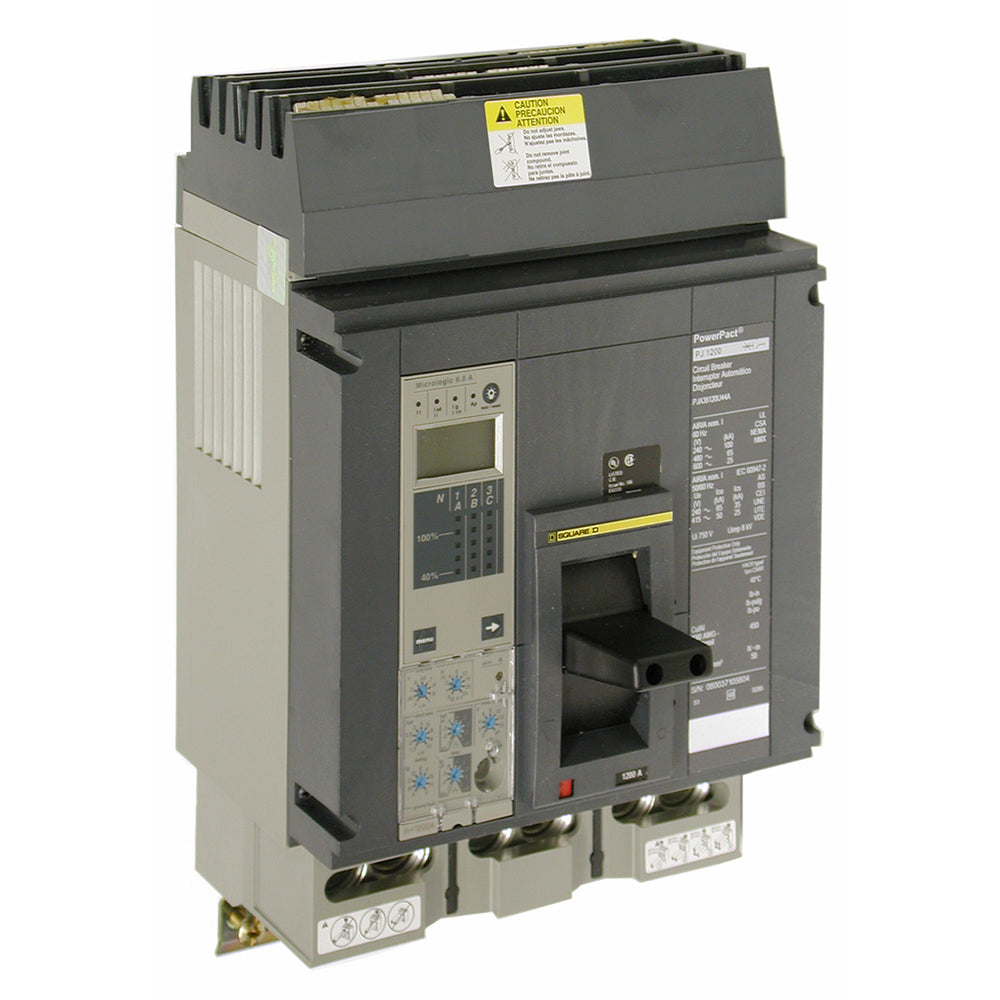

PJA36100U64AE1 - Square D Powerpact P-Frame 1000A 600V 3-Pole Molded Case Circuit Breaker

PJA36100U64AE1

PJA36100U64AE1 is a Square D Powerpact P-Frame molded case circuit breaker rated for 1000 amps and 600 volts with 3 poles.This circuit breaker features a 3-pole design with an I-Line style plug-in mounting type. It has a 65kA interrupting rating at 480V and includes an interchangeable MicroLogic trip unit offering LSIG (Long-Time, Short-Time, Instantaneous, and Ground Fault) protection. The breaker is UL listed and designed for solid-state electronic trip functions.

Key Specifications
• Amperage: 1000A
• Voltage: 600V
• Poles: 3
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 65kA @ 480V
• Series/Frame: Powerpact P-Frame
• Trip Unit: MicroLogic electronic LSIG
• Certifications: UL Listed
• Connection: Line rated plug-in with lugs for load
• Phase: 3
• Control Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJA36100U64AE1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJA
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : AL800M23K
• Frame Size : P Frame
• Temp Rating : 13-158 °F (-25-70 °C)
• Protection : Solid State

Product Data

• UPC : 762179033899
• GTIN : 03606486285442
• Country of Origin : United States
• Dimensions : 16.16 in (410.46 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 4 x AWG 3/0...500 kcmil aluminium/copper
