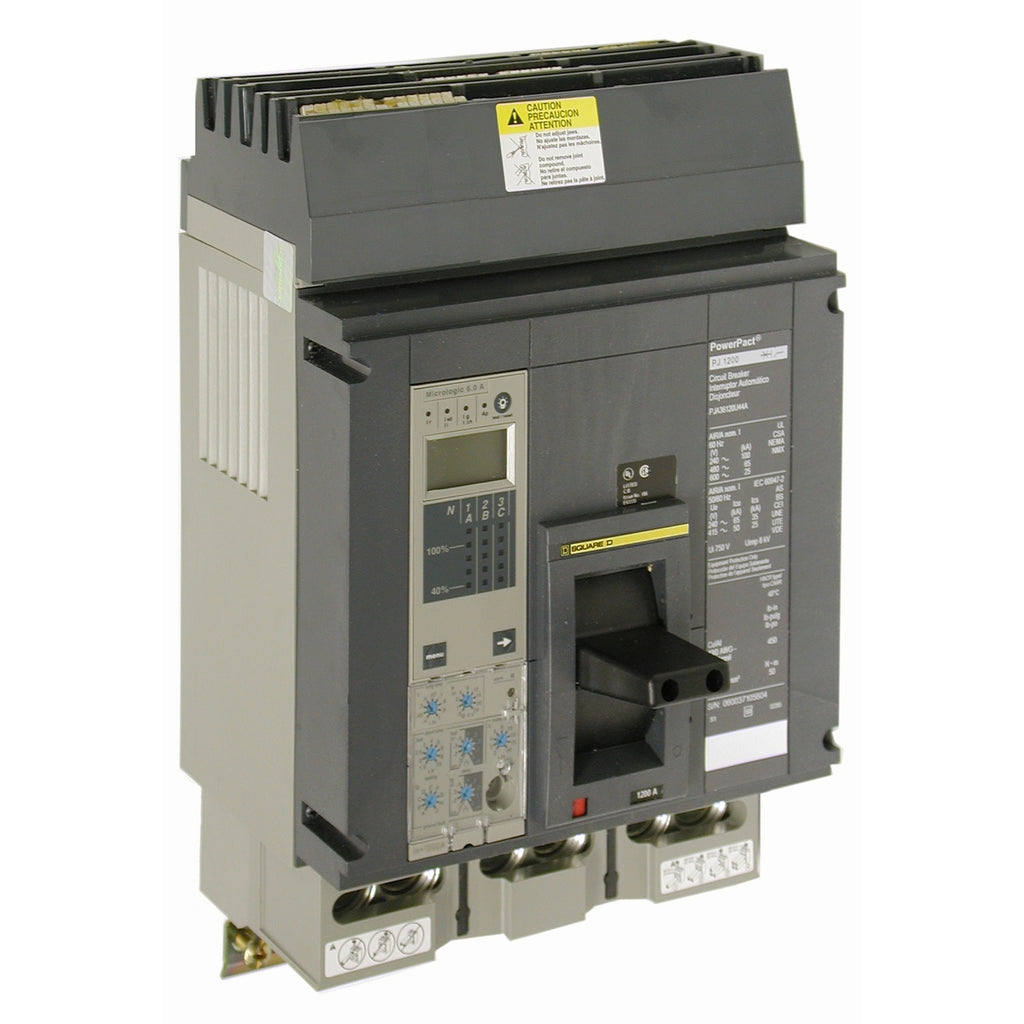

PJA36100U44AE1 - Square D PowerPact P 1000A 600V 3P I-Line Plug-In Molded Case Circuit Breaker LSIG MicroLogic 6.0A

PJA36100U44AE1

PJA36100U44AE1 is a 1000A, 600V, 3-pole, I-Line plug-in molded case circuit breaker from the Square D PowerPact P series, featuring LSIG protection and MicroLogic 6.0A trip unit. This circuit breaker is designed for high-interrupting capacity applications, offering solid-state electronic protection with long-time, short-time, instantaneous, and ground fault trip functions. It is suitable for use as a main panel disconnect in control panels and features an 80% continuous current rating. The breaker is UL listed and meets CSA, IEC, and NEMA standards for reliability and safety.

• Part Number: PJA36100U44AE1
• Manufacturer: Square D
• Series/Frame: PowerPact P
• Amperage: 1000A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 65kA@480V
• Protection: LSIG (Long-Time, Short-Time, Instantaneous, Ground Fault)
• Frame Type: PJA
• Continuous Current Rating: 80%
• Standards: UL 489, CSA, IEC, NEMA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJA36100U44AE1
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJA
• Voltage : 600
• Amperage : 1000
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
• Terminal Connection : AL800M23K
• Frame Size : P Frame
• Temp Rating : 13-158 °F (-25-70 °C)
• Protection : Solid State

Product Data

• UPC : 762179033684
• Country of Origin : United States
• Dimensions : Depth 8.05 in (204.47 mm) Width 8.27 in (210.06 mm) Height 12.86 in (326.64 mm)
• Weight : 32
• Certification : CE, UL, CSA, NEMA, NOM, IEC, RoHS
