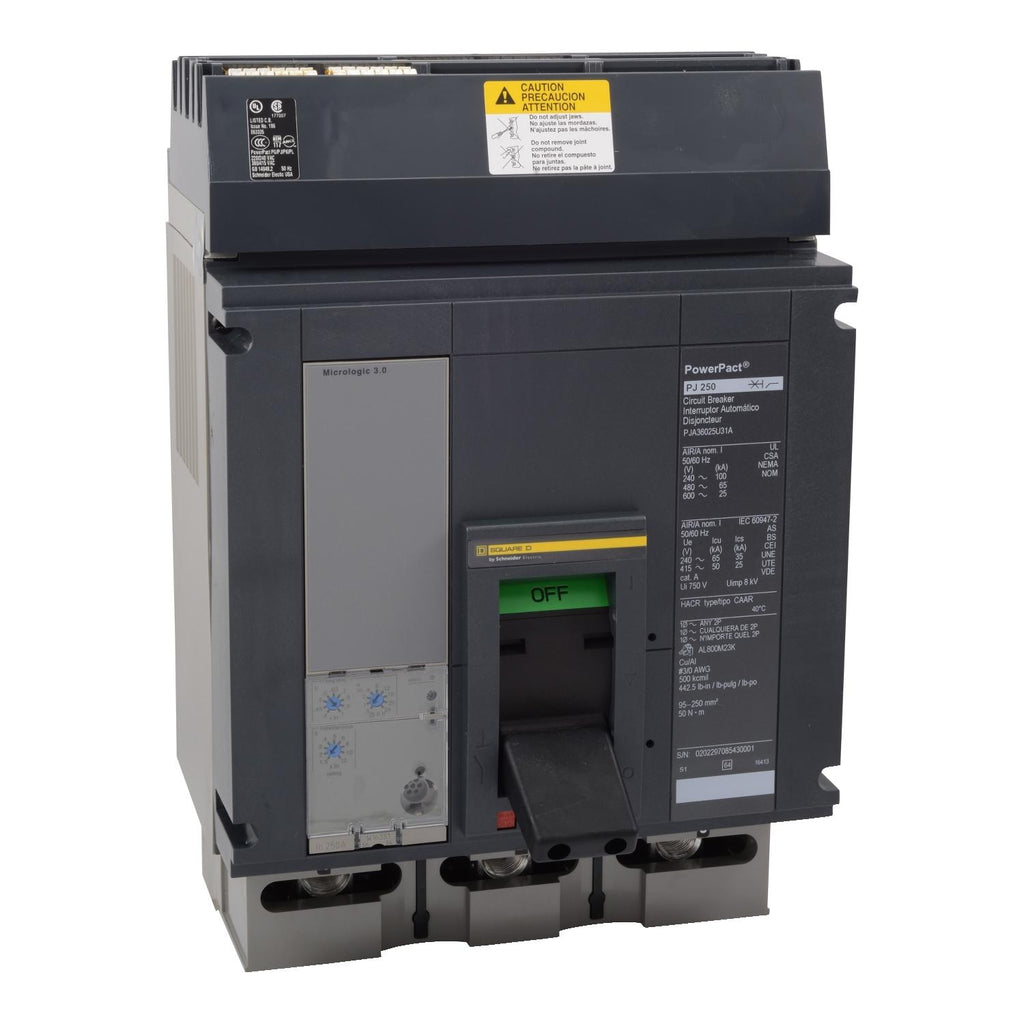

PJA36080U41A - Schneider Electric (Square D) 3-Pole 800 A 600 V AC I-Line Circuit Breaker, PowerPact PJA

PJA36080U41A

PJA36080U41A is a PowerPact P-frame molded case circuit breaker from Schneider Electric (Square D), rated 800 A, 3 poles, and 600 V AC for I-Line applications. It provides electronic protection with Micrologic 6.0 LSI. The breaker uses I-Line plug-on line terminations with mechanical load-side lugs for straightforward panelboard and switchboard integration.

• Family: PowerPact P-Frame, Type PJA (I-Line)
• Poles: 3 poles
• Amperage: 800 A
• Voltage: 600 Vac
• Trip unit: Micrologic 6.0 LSI
• Certifications: UL 489 Listed, CSA Certified

Suffix meanings in this catalog number

• Factory configuration per suffix

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJA36080U41A
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJA
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : AL800M23K
• Frame Size : P Frame
• Temp Rating : 13-158 °F (-25-70 °C)
• Protection : Solid State

Product Data

• UPC : 785901761877
• GTIN : 00785901761877
• Country of Origin : United States
• Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
• Weight : 32
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
• Certification : UL, CSA, NOM
• Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
