Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
PJA36060

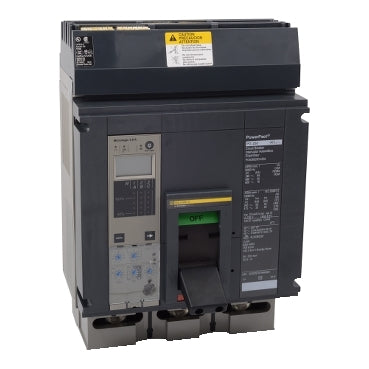

The Square D PJA36060 is a Molded Case Circuit Breaker. This type PJA circuit breaker is a member of The Powerpact family. The PJA36060 is a 3 pole, 600 Volt, 600 amp rated circuit breaker, with an AIC rating of 65kA@480V. The PJA36060 is manufactured by Square D. The PJA36060 uses a I-Line Style Plug-In connection. Includes Solid State protection. Every part Essential Electric sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: PJA36060
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : PJA
- Voltage : 600
- Amperage : 600
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : I-Line Style Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : AL800M23K
- Frame Size : P Frame
- Temp Rating : 13-158 °F (-25-70 °C)
- Protection : Solid State
Product Data
- UPC : 762179027874
- GTIN : 03606486285350
- Country of Origin : United States
- Dimensions : 12.86 in (326.64 mm) x 8.27 in (210.06 mm) x 8.05 in (204.47 mm) (Height x Width x Depth)
- Weight : 32
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
- Certification : UL, CSA, NOM
- Wire Size : 3 x AWG 3/0...500 kcmil aluminium/copper
