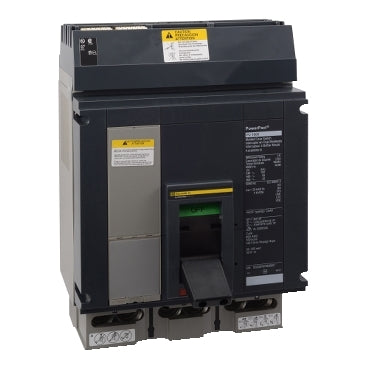

PJA36000S80 - Schneider Electric PowerPacT P Frame 800A 3 Pole 600VAC Magnetic Circuit Breaker

PJA36000S80

PJA36000S80 is a Schneider Electric PowerPacT P Frame circuit breaker designed for reliable power distribution and protection.This 3-pole automatic switch features an 800 ampere rating and operates at 600 volts AC. It includes a magnetic trip unit and is rated for a short circuit interrupt capacity of 25kA at 600VAC. The breaker is designed for I-Line mounting and is UL 489 Listed, CSA, ANCE, and IEC certified, ensuring compliance with industry safety standards. It is factory set with a nonadjustable trip point to protect the molded case switch and supports a wide range of accessories and lug connections.

• Amperage: 800A
• Voltage: 600VAC
• Poles: 3
• Mounting Type: I-Line
• Interrupt Rating: 25kA at 600VAC
• Frame/Series: PowerPacT P Frame
• Trip Unit: Magnetic
• Certifications: UL 489, CSA, ANCE, IEC

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PJA36000S80
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : PJA
• Voltage : 600
• Amperage : 800
• Phase : 3
• Poles : 3
• AIC rating : 65kA@480V
• Connection : I-Line Style Plug-In
• Functions : NA - No Overcurrent Protection
• Terminal Connection : AL800M23K
• Frame Size : P Frame
• Temp Rating : 13-158 °F (-25-70 °C)
• Protection : Non-Automatic

Product Data

• UPC : 785901731054
• GTIN : 00785901731054
• Country of Origin : United States
• Dimensions : 16.24 in (412.50 mm) x 16.54 in (420.12 mm) x 14.49 in (368.05 mm) (Height x Width x Depth)
• Weight : 32
• Certification : CE, UL, CSA, NEMA, NOM, IEC, RoHS
• Wire Size : 3 x AWG 3/0...500 kcmil ( aluminium/copper )
