Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Breaker Type
Description
PHG36150GNU31X

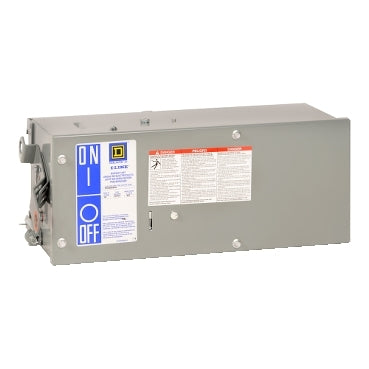

PHG36150GNU31X is a Square D I-Line bus plug designed for reliable power distribution in industrial and commercial applications. This unit features a compact, durable design with a polyester powder coat finish for long-lasting performance. The PHG36150GNU31X is a 150A, 600VAC, 3-phase, 4-wire bus plug with H-frame construction and a Micrologic 3.2 trip unit. It is engineered for easy installation and offers superior voltage drop characteristics, even at low power factors. The unit is suitable for use in I-Line busway systems and provides a robust solution for circuit protection.
- 150A current rating
- 600VAC voltage rating
- 3-phase, 4-wire configuration
- H-frame construction
- Micrologic 3.2 trip unit
- 18kA interrupt rating at 600V
- Compact, enclosed design
- Polyester powder coat finish
- Easy installation
- Superior voltage drop characteristics
- 3 poles
- Busway mounting type
Specifications
- Part Number: PHG36150GNU31X
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Bus Plug
- Item Subcategory : Breaker Type
- Family : I-Line
- Type : PHG
- Voltage : 600
- Amperage : 150
- Phase : 3
- AIC rating : 35kA@480V
- Wire : 4
- Compatible Frames : HGP
Product Data
- Dimensions : 8.5 in (216 mm) x 21.7 in (551 mm) x 9.1 in (232 mm) (Height x Width x Depth)
- Weight : 32
