PH750MLI - Hammond Power Solutions 750 VA Encapsulated Core Industrial Control Transformer 1-Phase 460/230/208V-115/24V 50/60Hz

PH750MLI

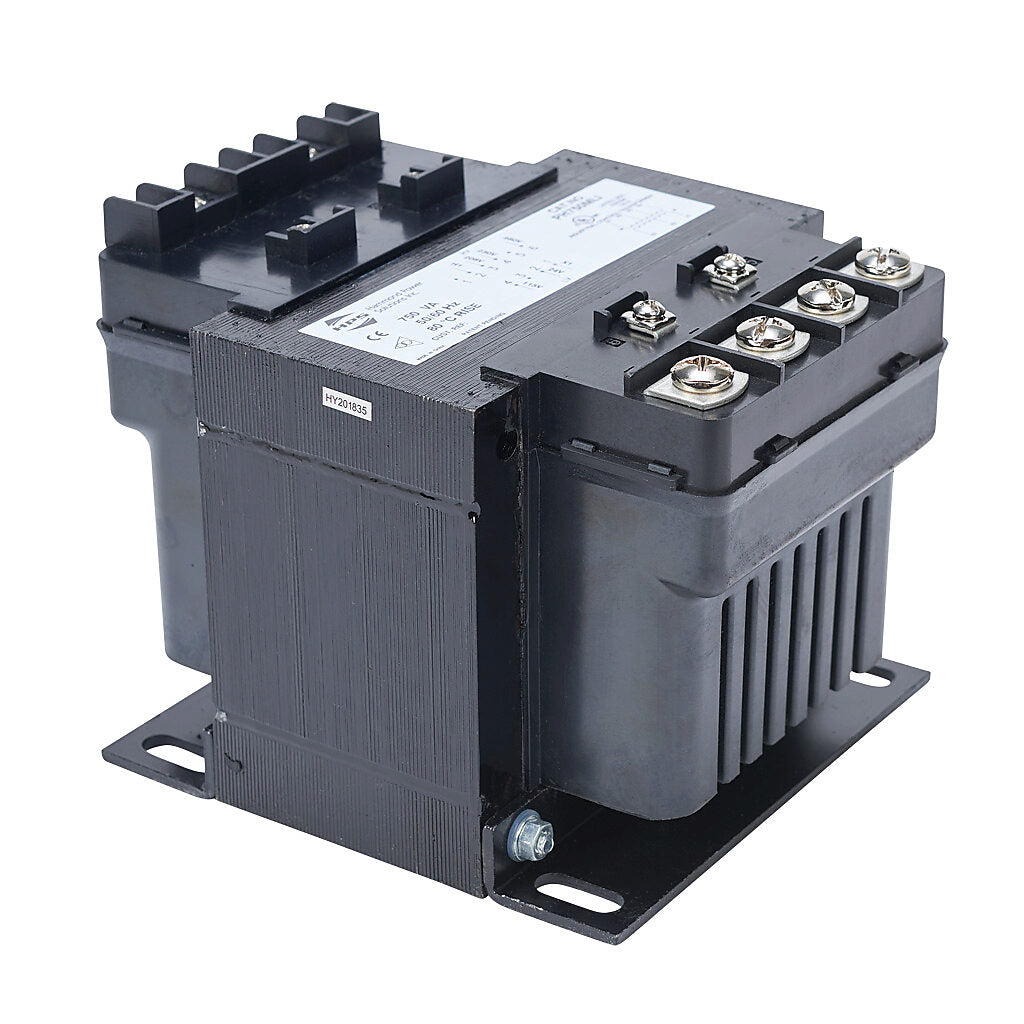

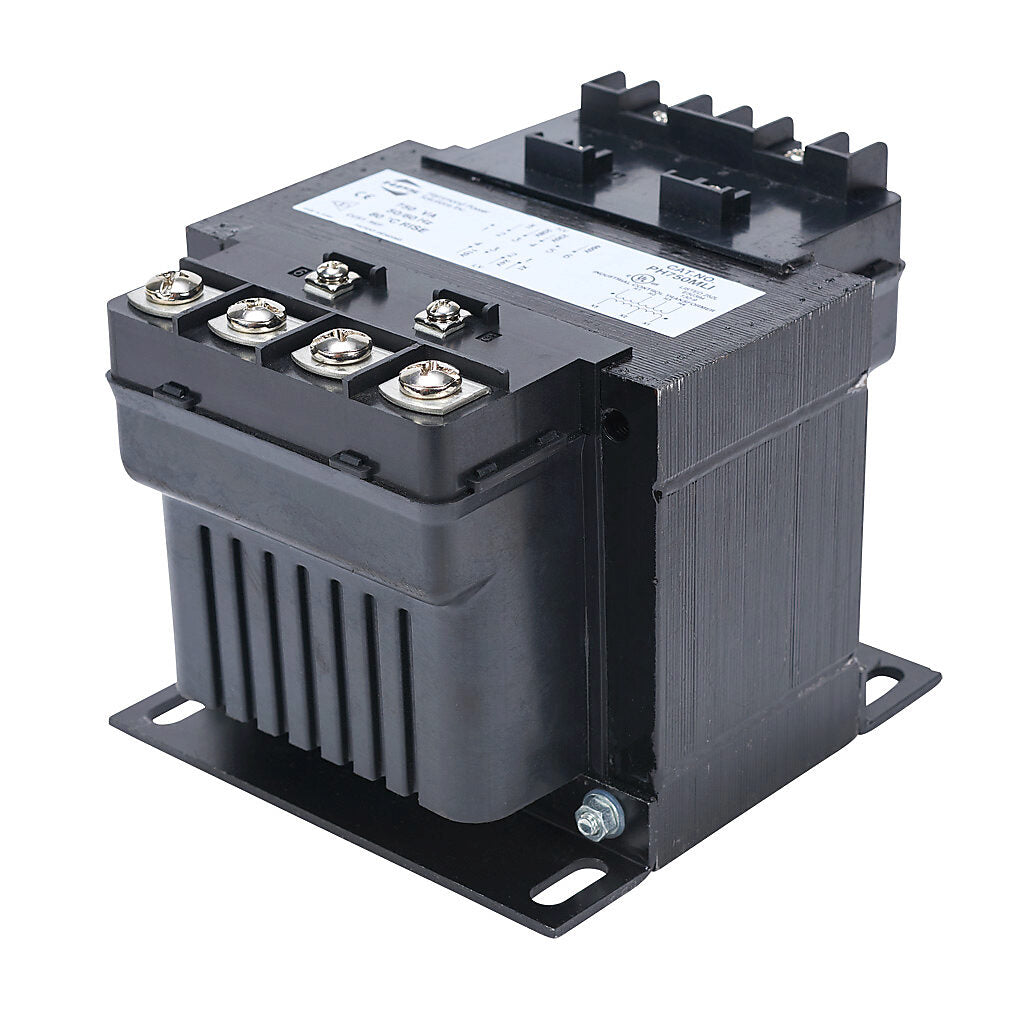

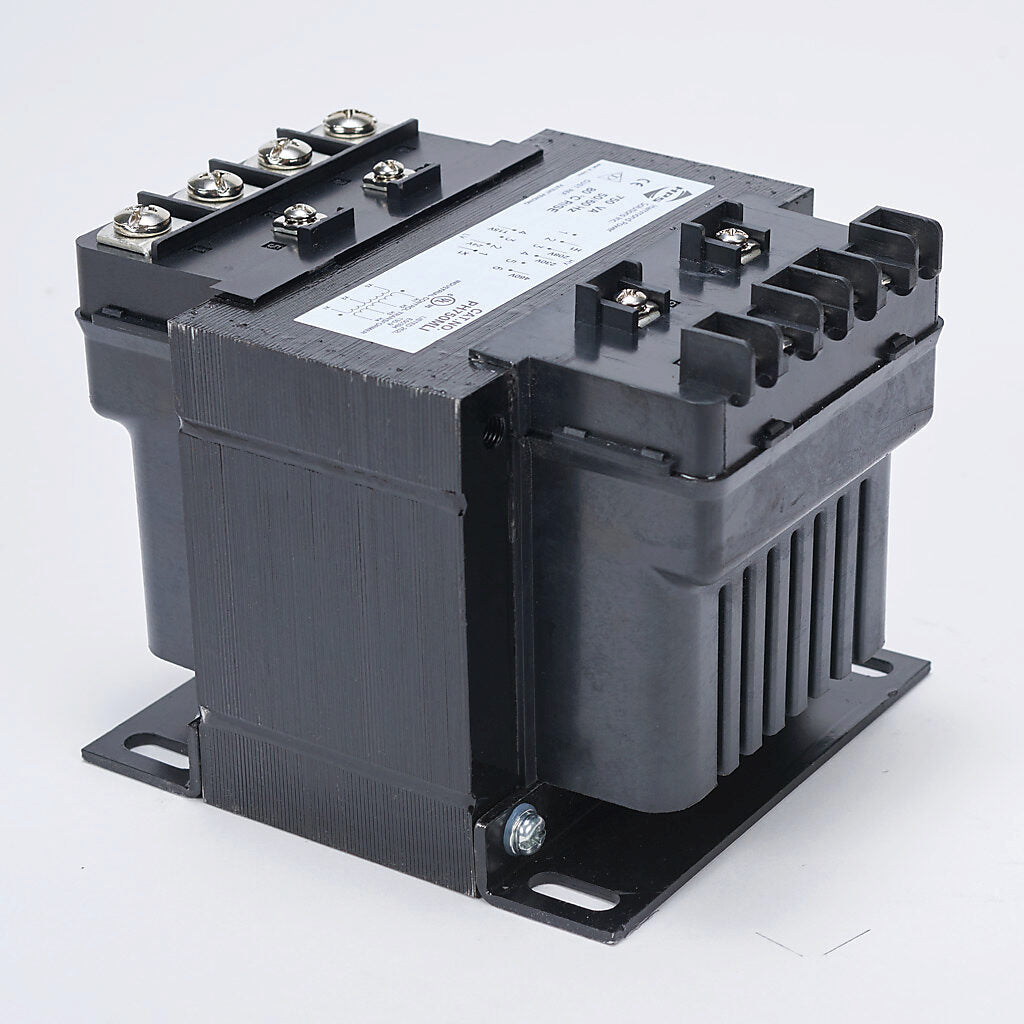

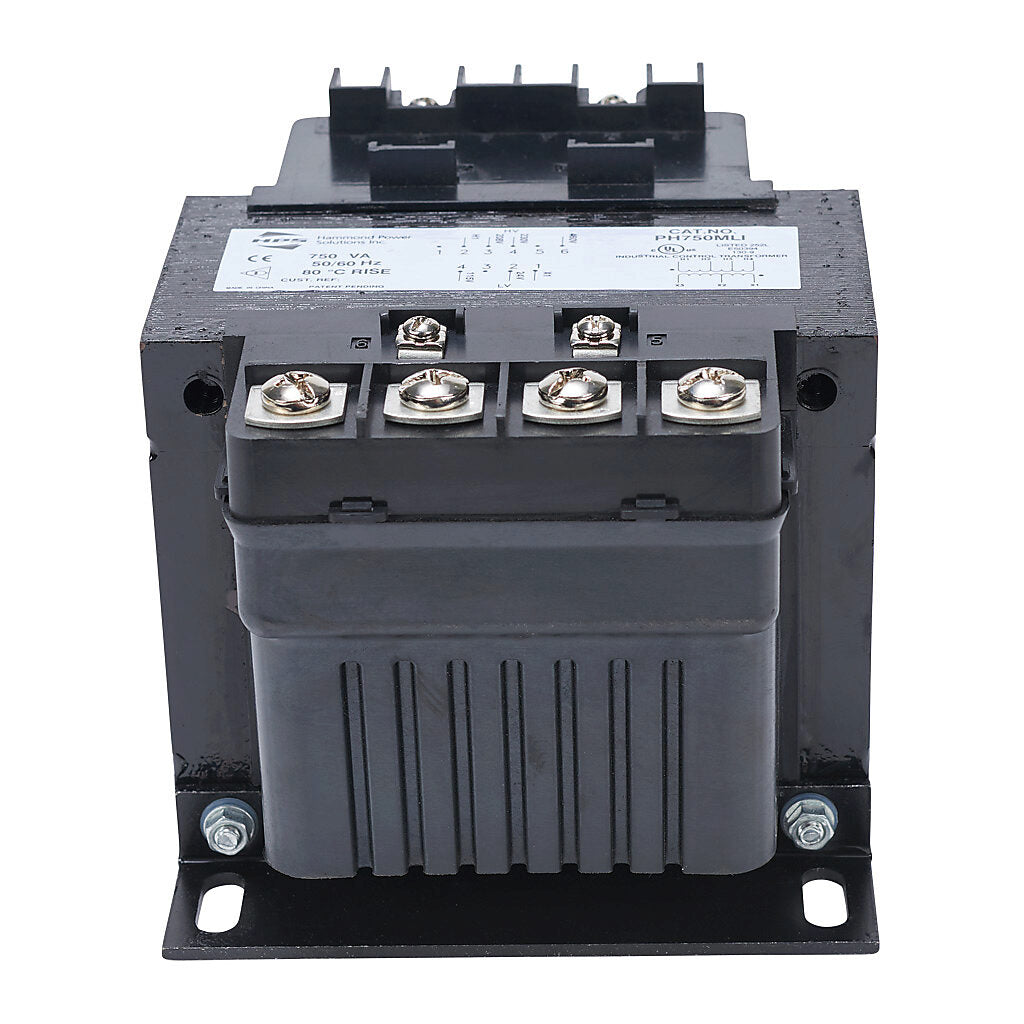

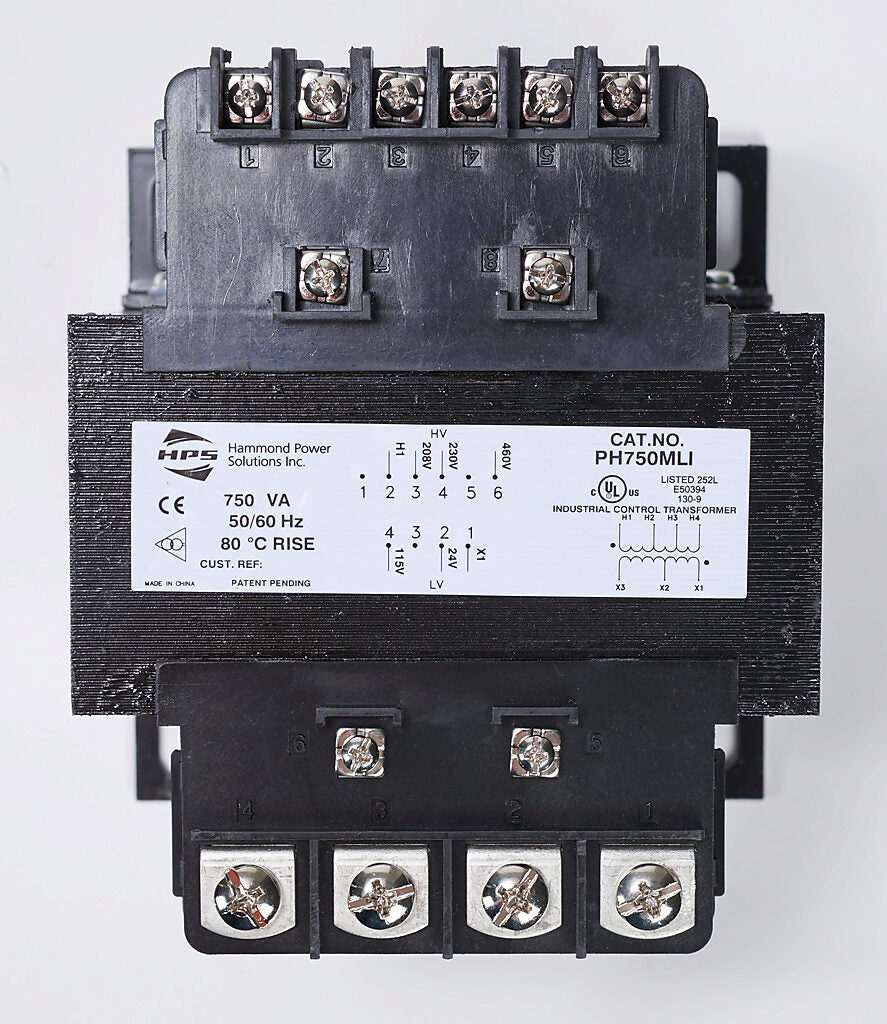

PH750MLI is a single-phase encapsulated core industrial control transformer from Hammond Power Solutions, rated at 750 VA for reliable performance in demanding applications. This transformer is designed for machine tool and industrial control use, featuring a robust encapsulated core construction and multiple standard voltage groups for flexible installation. It is built to handle high inrush currents commonly found in electromagnetic loads such as relays, solenoids, and motor starters.

• Part Number: PH750MLI
• Manufacturer: Hammond Power Solutions
• Type: Industrial Control Transformer
• VA Rating: 750 VA
• Phase: Single Phase
• Primary Voltage: 460, 230, 208 VAC
• Secondary Voltage: 115, 24 VAC
• Frequency: 50/60 Hz
• Mounting Type: Panel Mount
• Insulation Class: 130°C
• Temperature Rise: 80°C
• Material: Copper
• Dimensions: 5.25 in W x 6.5 in D x 4.94 in H
• Weight: 21 lb (10 kg)
• Terminal Block: Standard
• Certifications: UL Listed, cULus, CE Marked
• Standards: UL 506, ANSI 506, IEC 61558

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PH750MLI
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 460, 230, 208
• Primary Connection : Series (V)
• Secondary Voltage : 115, 24
• Secondary Connection : Series (V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 1.11093
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block, Terminal Block, Terminal Block

Product Data

• UPC : 803423078409
• Weight : 21
• Certification : cULus, CE

Documentation and Resources

• Engineering Drawing (PDF)
• Brochure
• Hammond Product Application Videos
• Frequently Asked Questions
• Troubleshooting Guide
