PH150MLI - Hammond Power Solutions 150 VA Encapsulated Core Industrial Control Transformer 1-Phase 460/230/208 Primary 115/24 Secondary 50/60 Hz

PH150MLI

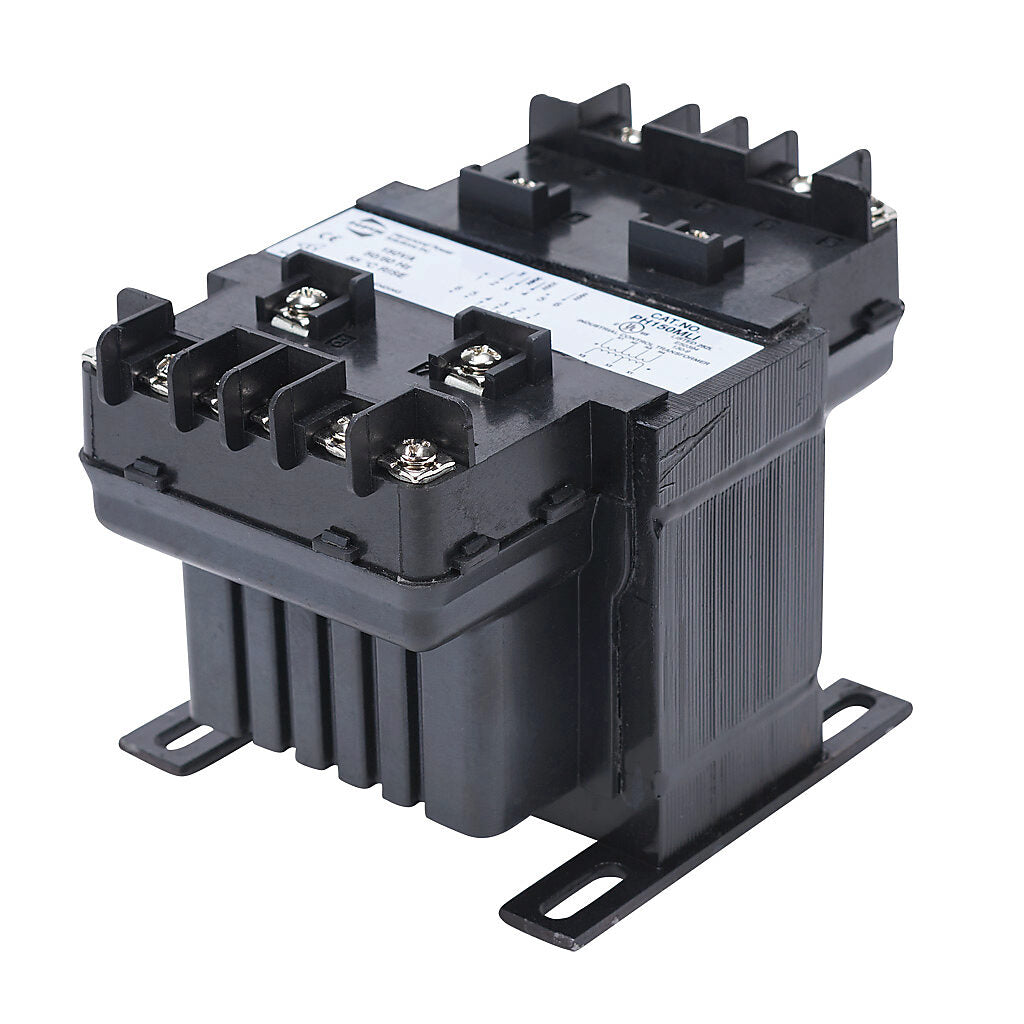

PH150MLI is a 150 VA encapsulated core industrial control transformer from Hammond Power Solutions, designed for reliable single-phase power conversion in industrial environments.This HPS Imperator® series transformer features a robust insulation system, multi-tap primary and secondary windings for flexible voltage selection, and is built for high inrush applications such as relays, solenoids, and magnetic motor starters. The unit is panel mountable and includes secondary fuse clips for added safety.

• 150 VA capacity
• Single-phase operation
• Primary voltage: 460/230/208 VAC
• Secondary voltage: 115/24 VAC
• 50/60 Hz frequency
• Encapsulated core construction
• Panel mount design
• Secondary fuse clips included
• UL and CE certified
• Temperature rise: 55°C
• Insulation class: 130°C
• Weight: 7.6 lbs

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PH150MLI
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 460, 230, 208
• Primary Connection : Series (V)
• Secondary Voltage : 115, 24
• Secondary Connection : Series (V)
• Material : Copper
• Temperature Rise : 55°C
• Insulation Class : 130°C
• EKVA : 0.280816
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block, Terminal Block, Terminal Block

Product Data

• UPC : 080342307836
• Weight : 8
• Certification : cULus, CE
