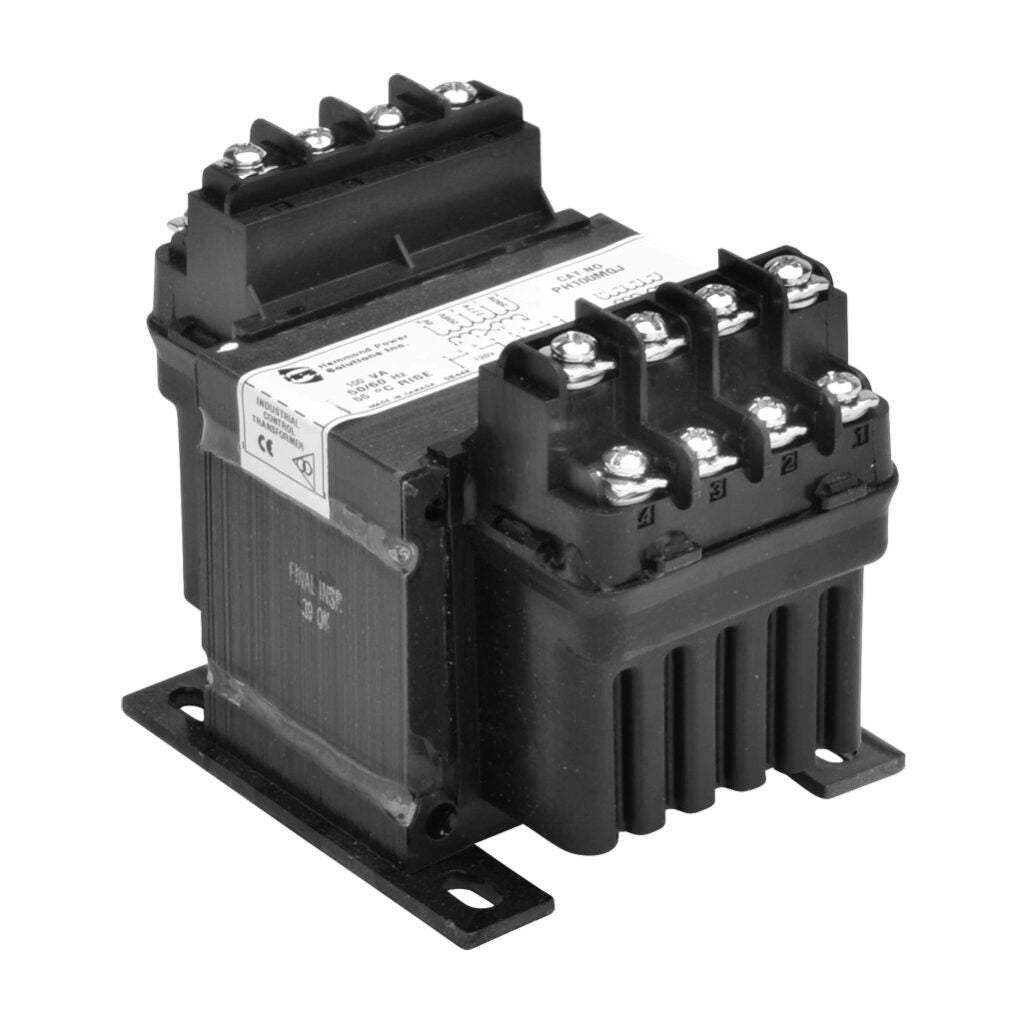

PH100MGJ - Hammond Power Solutions 100VA Encapsulated Machine Tool Control Transformer 208/277/380V Primary 120/240V Secondary

PH100MGJ

PH100MGJ is a single-phase encapsulated machine tool control transformer from Hammond Power Solutions, designed for industrial control applications. This transformer provides reliable voltage conversion with a robust insulation system and versatile mounting options for a wide range of environments.Engineered for durability and safety, the PH100MGJ features a 100VA power rating, multi-primary and secondary voltage groups, and is suitable for both 50Hz and 60Hz operation. Its encapsulated construction protects against moisture and contaminants, making it ideal for demanding industrial settings.

• Part Number: PH100MGJ
• Manufacturer: Hammond Power Solutions
• Series: HPS Imperator
• Mounting Type: Chassis Mount
• Primary Voltage: 208/277/380 VAC
• Secondary Voltage: 120/240 VAC
• Power Rating: 100 VA
• Frequency Rating: 50/60 Hz
• Phase: Single
• Connection Type: Screw
• Approvals: UL 506, ANSI 506, CE
• Dimensions: 3.25" W x 4.69" D x 3.63" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PH100MGJ
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 380, 277, 208
• Primary Connection : Series (V)
• Secondary Voltage : 120x240
• Secondary Connection : Parallel x Series (Vx2V)
• Material : Copper
• Temperature Rise : 55°C
• Insulation Class : 130°C
• EKVA : 0.187211
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block, Terminal Block, Terminal Block

Product Data

• UPC : 803423078539
• Weight : 5
• Certification : cULus, CE
