Hammond Power Solutions PH1000MLI - Transformer 1.48 kVA Seismic Compliant

PH1000MLI

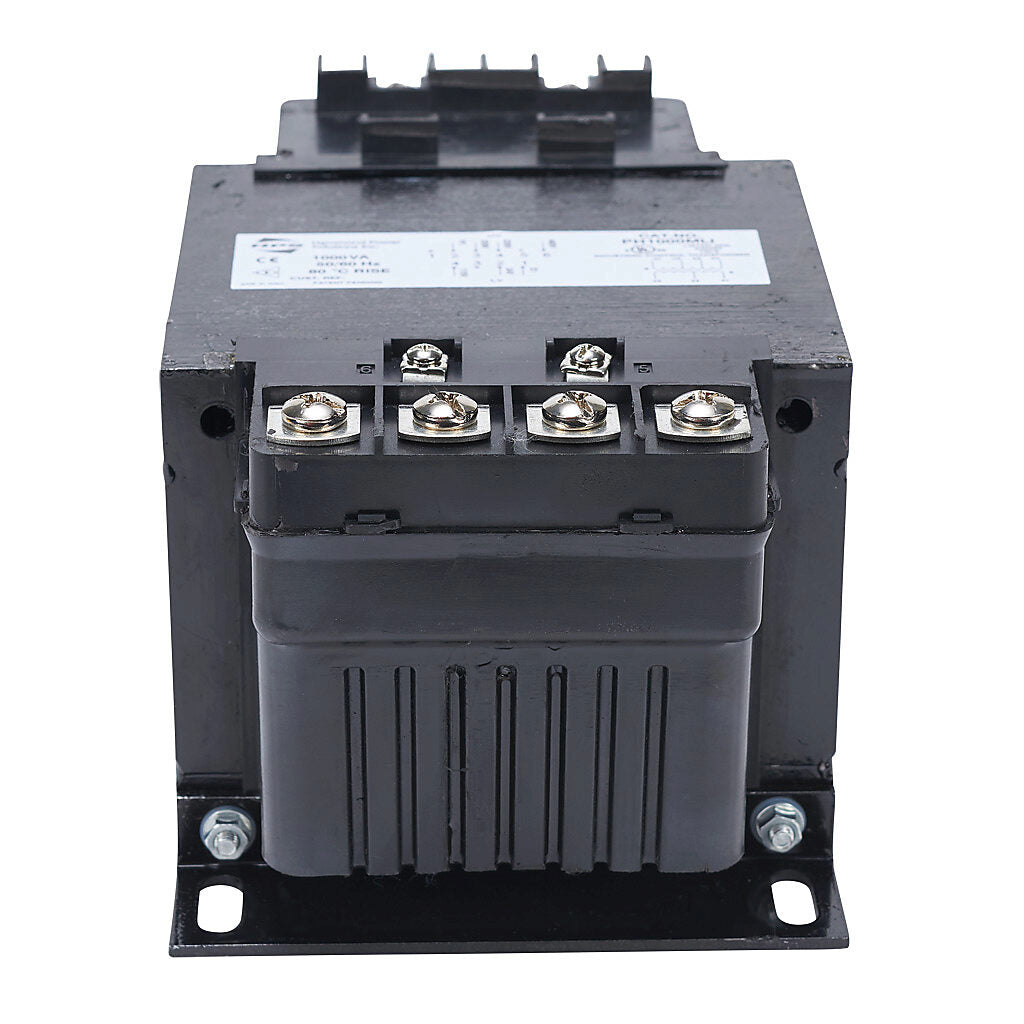

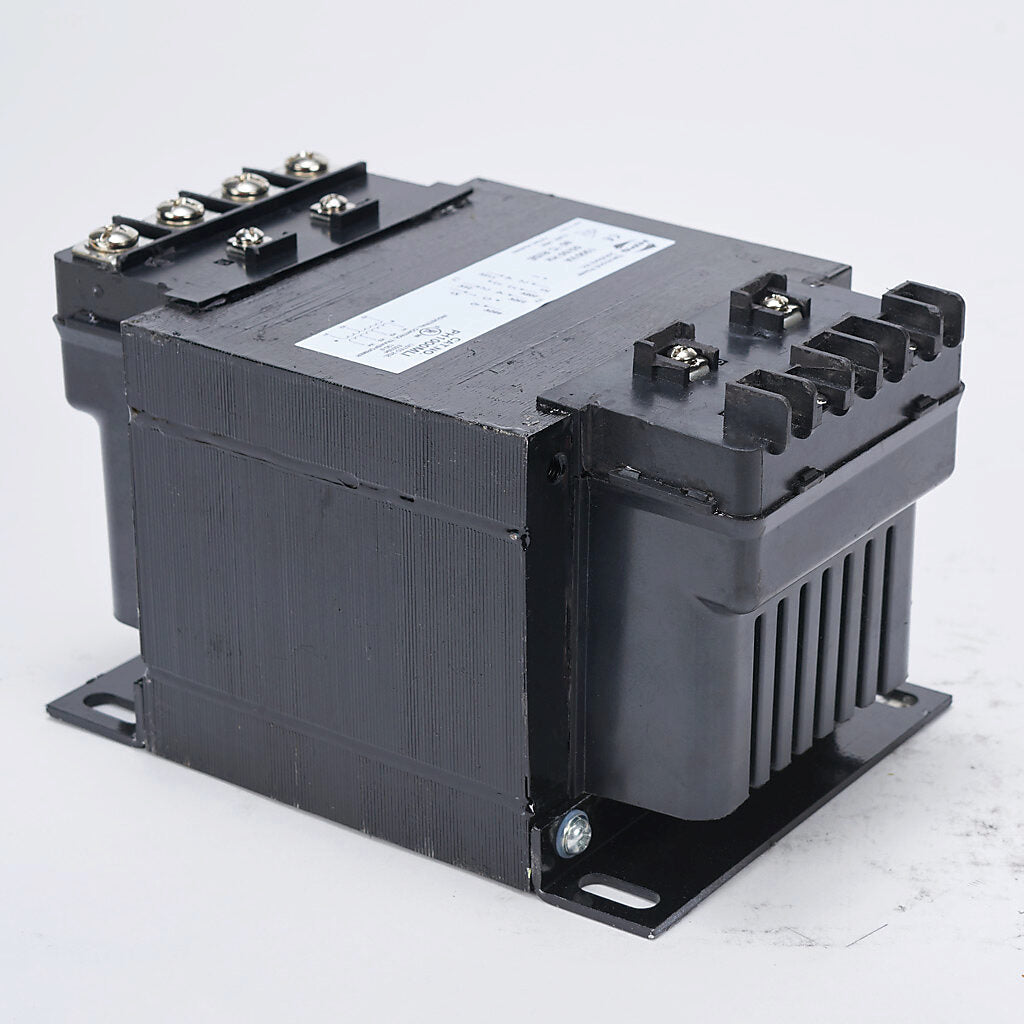

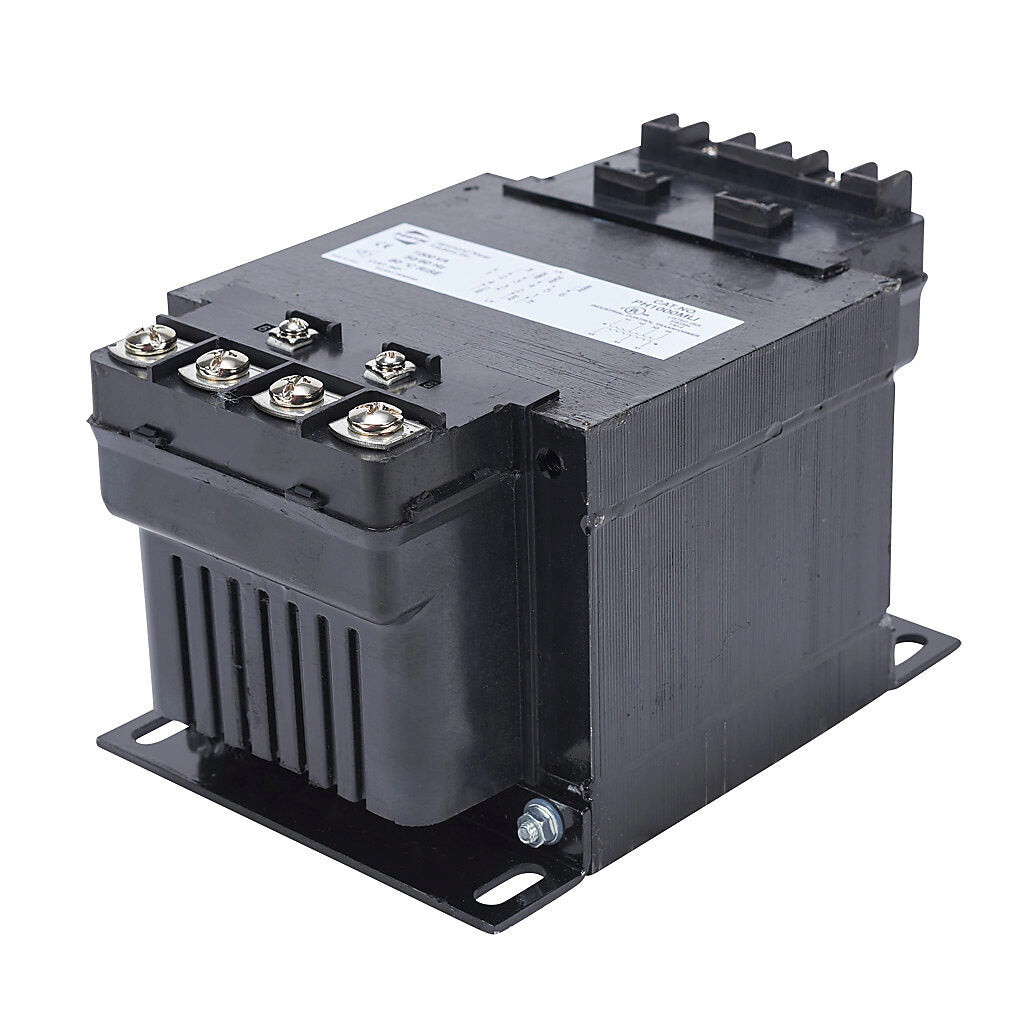

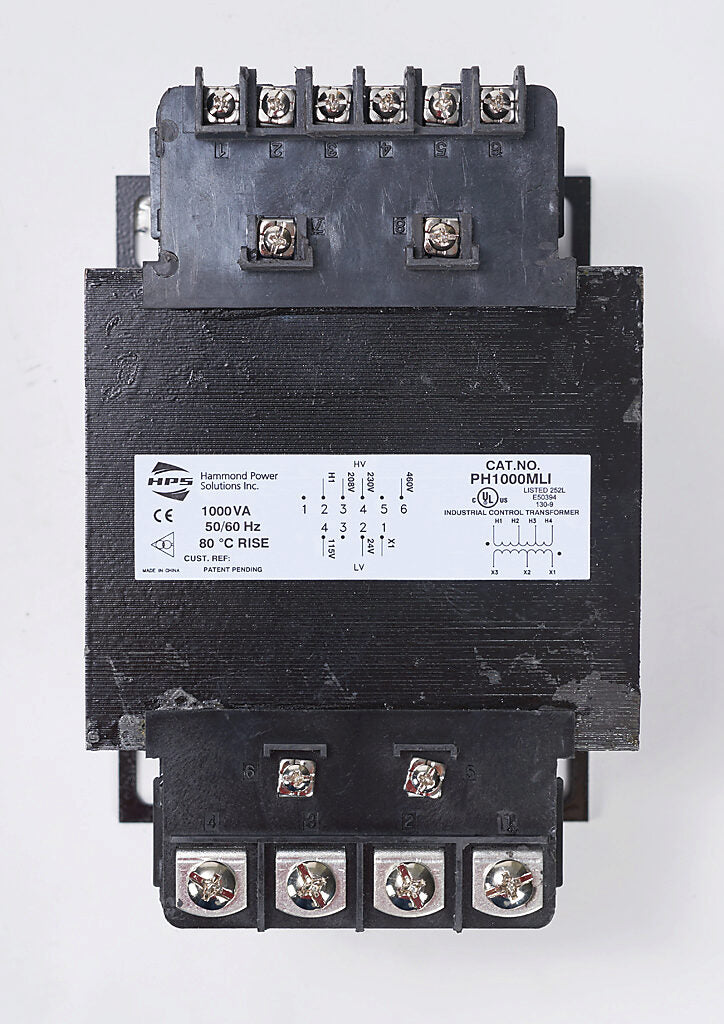

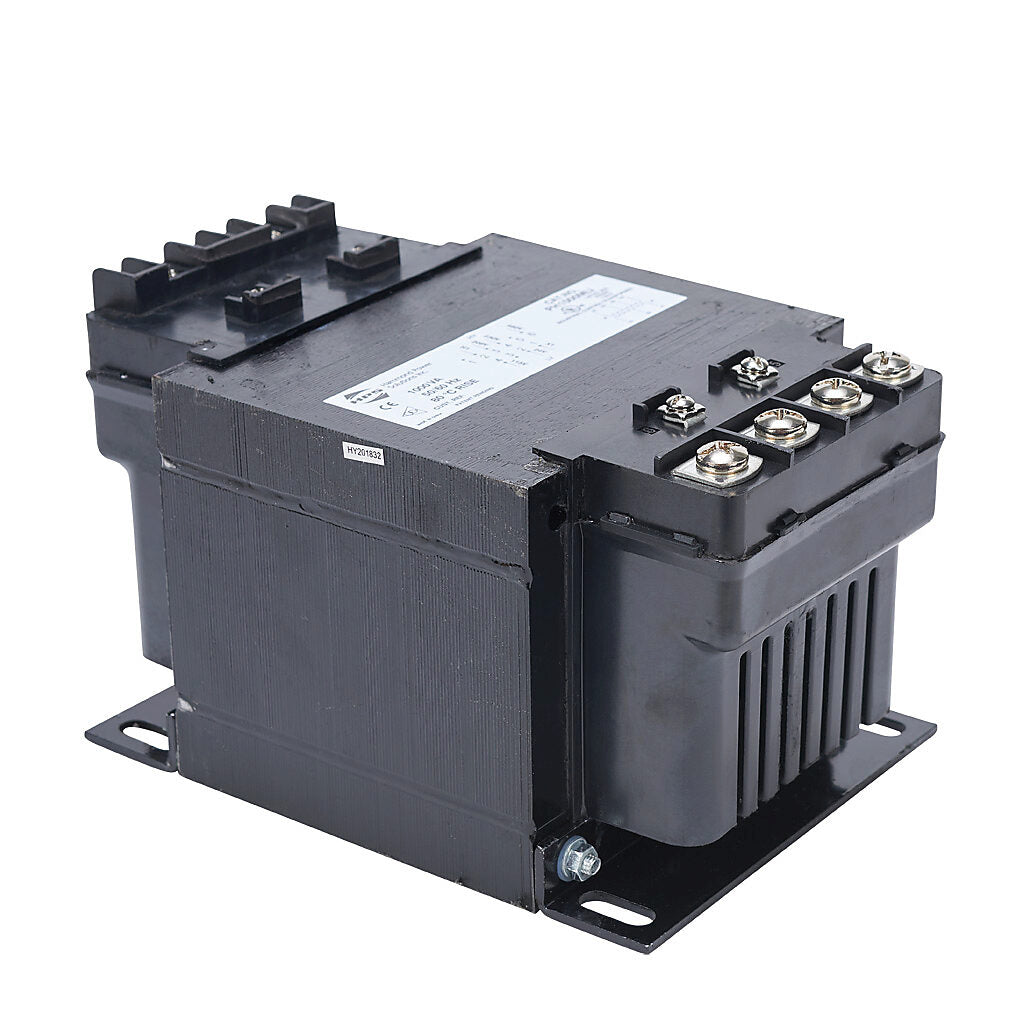

Hammond Power Solutions PH1000MLI is a single-phase core and coil transformer designed for industrial power distribution applications. This transformer operates with primary voltages of 208V, 230V, or 460V and delivers secondary voltages of 115V or 24V, featuring copper windings and a temperature rise of 80°C with 130°C insulation class. The unit is constructed with standard terminal block primary terminations and complies with seismic standards including OSHPD and IBC 2018 (Sds=2.0, z/h=1, lp=1.5). It meets rigorous industry requirements for seismic performance and is typically deployed in industrial facilities requiring reliable power conversion with certified seismic resilience. Key Features & Specifications

• Type: Single-Phase Core & Coil Transformer
• Primary Voltage: 208V, 230V, 460V
• Secondary Voltage: 115V, 24V
• Frequency: 50/60Hz
• EKVA: 1.48124
• Temperature Rise: 80°C
• Insulation Class: 130°C
• Winding Material: Copper
• Seismic Compliance: OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Primary Termination: Terminal Block

Specifications

• Part Number: PH1000MLI
• Manufacturer : Hammond Power Solutions
• Brand : Hammond Power Solutions
• Category : Transformer
• Phase : 1
• Enclosure Grade : N / A
• Frequency : 50/60Hz
• Primary Voltage : 460, 230, 208
• Primary Connection : Series (V)
• Secondary Voltage : 115, 24
• Secondary Connection : Series (V)
• Material : Copper
• Temperature Rise : 80°C
• Insulation Class : 130°C
• EKVA : 1.48124
• Seismic Compliance : OSHPD, IBC 2018 (Sds=2.0, z/h=1, lp=1.5)
• Enclosure Type : Core & Coil
• Nameplate : Standard
• Vector Configuration : 180°
• Seismic Standard Value : IBC 2018
• OSHPD : Yes
• Seismic IP : lp=1.5
• Seismic ZH : z/h=1
• Seismic SDS Value : Sds=2.0
• Primary Termination (Std) : Terminal Block, Terminal Block, Terminal Block

Product Data

• UPC : 803423078416
• Weight : 31
• Certification : cULus, CE
